7800-8200, 7900 & 9200 Series Mortise Locks with 1-sided Trim Only

7800/8200, 7900 and 9200 Series Mortise Locks with One-Sided Trim Only INSTALLATION INSTRUCTIONS

For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com

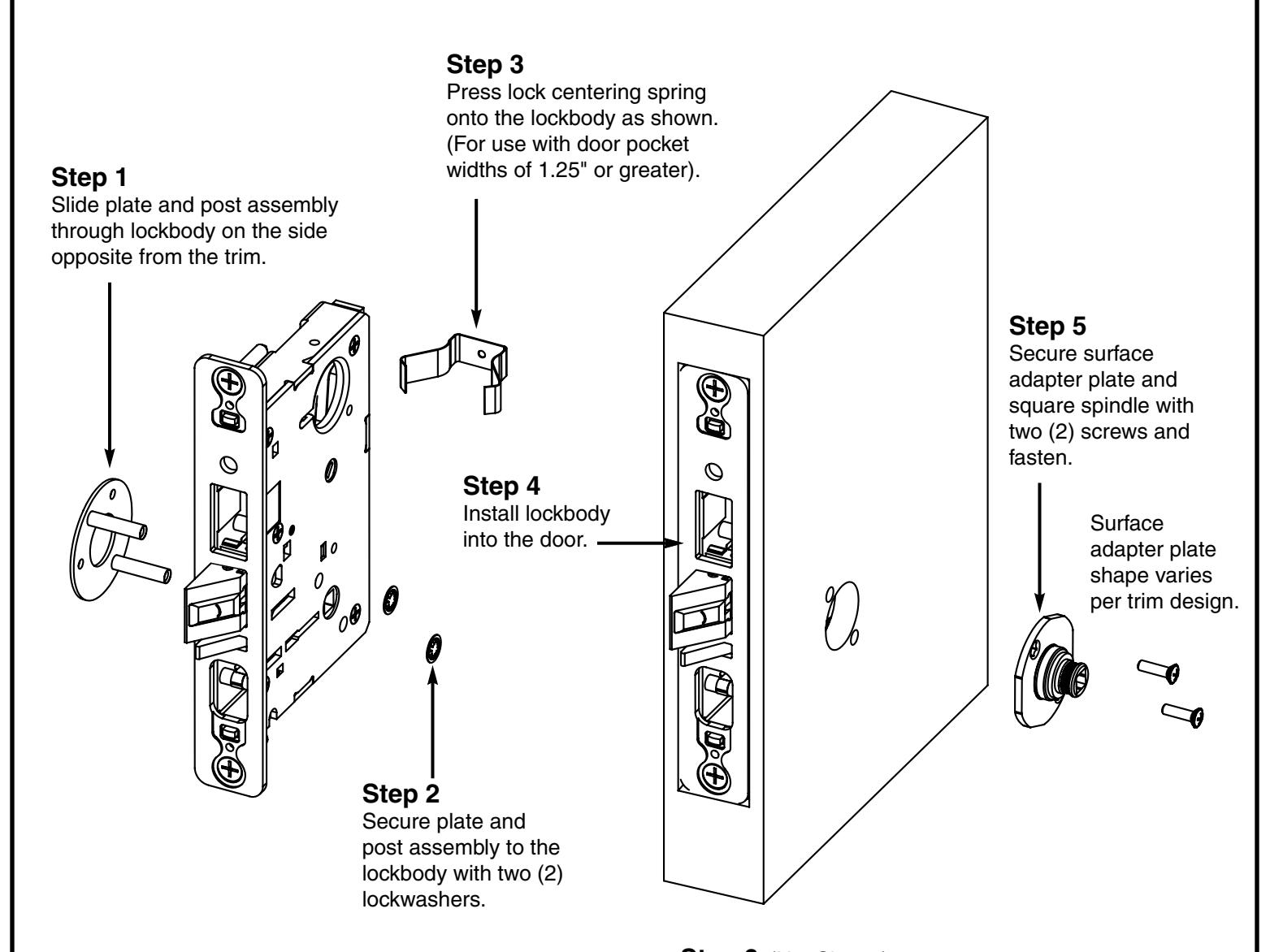

Step 6 (Not Shown)

Attach rose trim by threading rose onto surface adapter plate or escutcheon trim with SURFACE APPLIED screws provided (except on LS/KS escutcheon). Attach lever with set screw, already provided in the lever (or in separate screw pack for Studio Collection). For additional information, see standard instruction sheet for each product.
