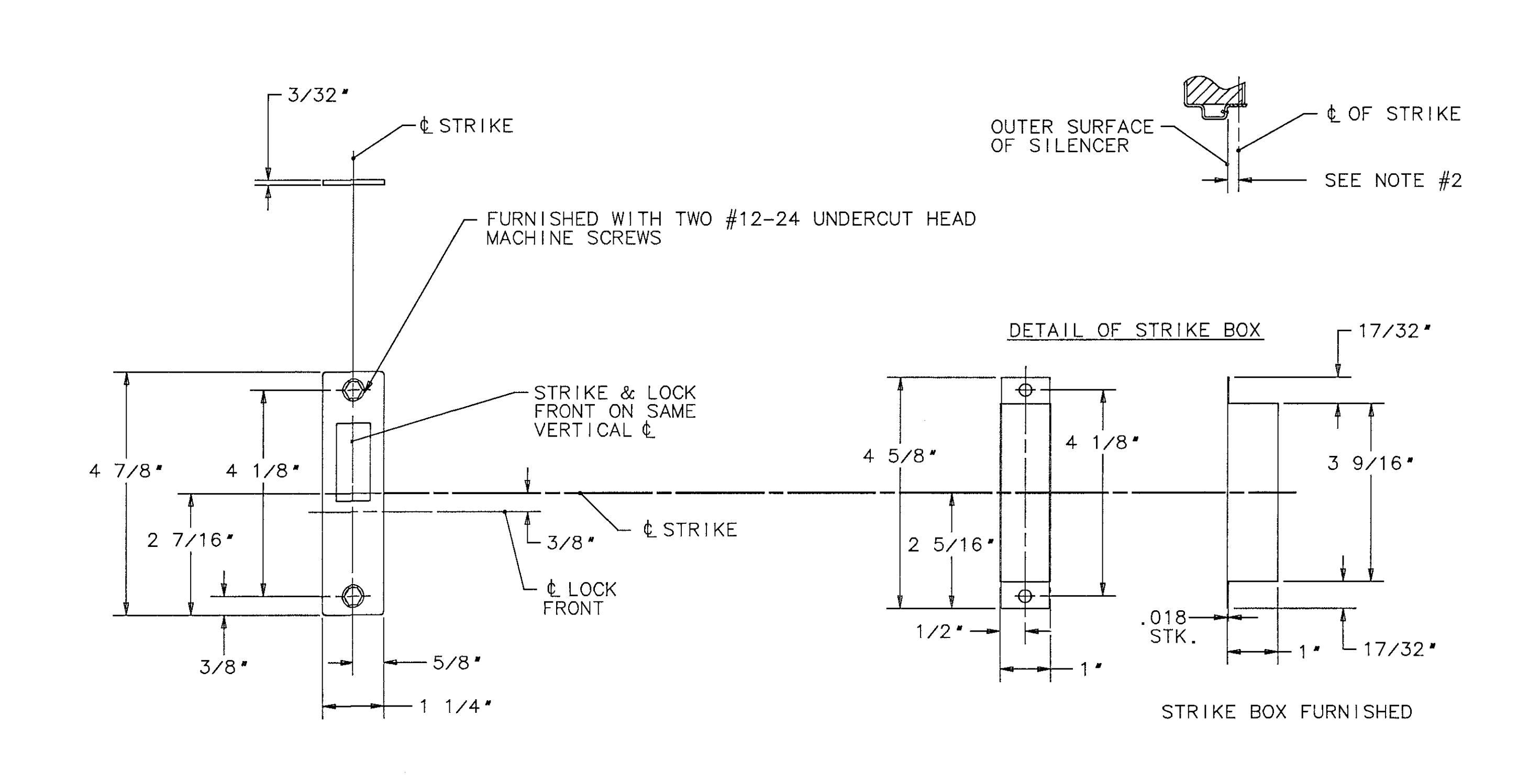

78-0034 Dead Bolt Strike (03,20,21,22,23 functions)

2-WHEN DOOR SILENCERS ARE USED ON DOOR FRAME, LOCATE CENTERLINE OF STRIKE FROM SURFACE OF DOOR SILENCER AS SHOWN.

1 - DIMENSIONS SHOWN ARE MAXIMUM PART DIMENSIONS.

SARGENT MFG. COMPANY NEW HAVEN, CONN. 06511 TEMPLATE: 8200,9200 & M9200 RELEASE DATE SERIES MORTISE LOCK 3 SEPT 99 NO. 78-0034 DEAD BOLT STRIKE TEMPLET NO. FOR 03,20,21,22 & 23 FUNCTIONS 7064 C
