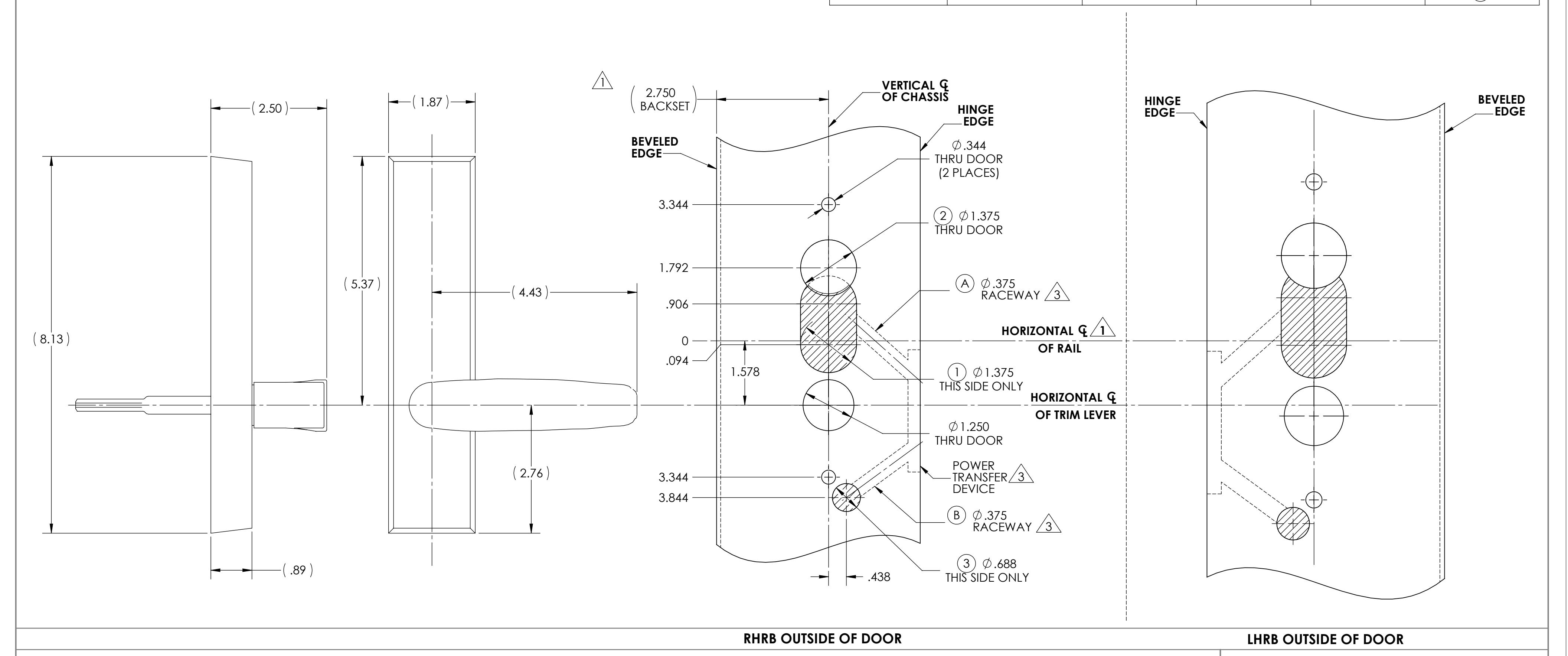

773-8, 774-8, 775-8, 776-8 ET Control with 8800, 12-8800 Rim Type Exit Device

METAL DOOR

SERIES	FUNCTIONS	FEATURE (1) (SOLENOID)	FEATURE (2) ( CYLINDER )	FEATURE (3) ( 54- PREFIX )	RACEWAY LOCATION
8800	773-8, 774-8	X			A
	54-773-8, 54-774-8	X		Х	A
	775-8, 776-8	Х	X		A
	54-775-8, 54-776-8	Х	X	Х	A
	ALL OTHER 54-700-8		SEE NOTE 2	Х	B

NOTES:

• FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE.
• FOR ADDITIONAL "ET" TRIM DOOR PREP CUTOUTS REFER TO TEMPLATE 4414.
• a. Ø.375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG. b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION. c. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE. d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT.
• SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS.
• BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.

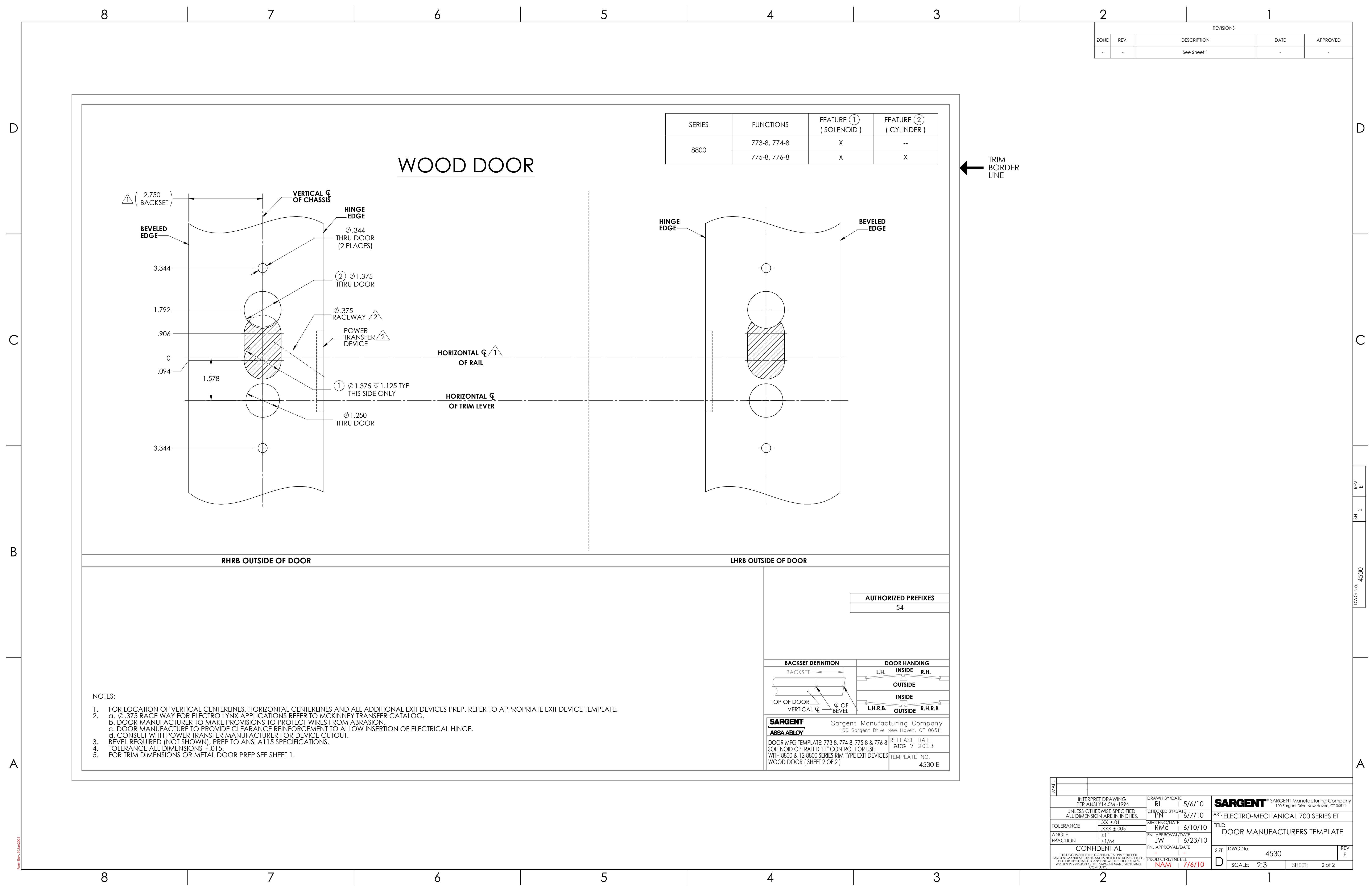

• TOLERANCE ALL DIMENSIONS ±.015. 7. FOR WOOD DOOR PREP SEE SHEET 2.

VERTICAL Q -^→BĒVĒL— SARGENT ASSA ABLOY

BACKSET DEFINITION

BACKSET -

TOP OF DOOR.

Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511

L.H.R.B.

AUTHORIZED PREFIXES 54

DOOR HANDING INSIDE R.H.

OUTSIDE

INSIDE

OUTSIDE R.H.R.B

DOOR MFG TEMPLATE: 54-700-8 LEVER RELEASE DATE MONITORING "ET", & 773-8, 774-8, 775-8 & 776-8 SOLENOID OPERATED "ET" CONTROL FOR USE WITH 8800 & 12-8800 SERIES RIM TYPE EXIT DEVICES TEMPLATE NO. METAL DOOR (SHEET 1 OF 2) 4530 E
