773, 774, 775, 776 Solenoid Operated ET Control

Open the original PDF document

View PDF

METAL DOOR

SERIES FUNCTIONS FEATURE (1)
( SOLENOID ) 		FEATURE (2)
( CYLINDER ) 		FEATURE (3)
( 54- PREFIX ) 		RACEWAY
LOCATION
775, 776 X OUTSIDE ONLY A
8300, 8900, 9900 54-775, 54-776 X OUTSIDE ONLY X A
ALL OTHER 54-700 SEE NOTE 2 X B
775, 776 Χ THRU DOOR A
9800** 54-775, 54-776 X THRU DOOR X A
ALL OTHER 54-700 SEE NOTE 2 X B
0200 0000 0000 773, 774 Χ A
8300, 8900, 9900
9800**
8700, 9700 		54-773, 54-774 i4-774 X X A
8700,7700 ALL OTHER 54-700 SEE NOTE 2 X B

NOTES:

  • FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE.
  • FOR ADDITIONAL "ET" DOOR PREP CUTOUTS REFER TO TEMPLATE 4277. a. \phi .375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG.
  • b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION.
  • C. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE.
  • d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT.
  • SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS.
  • BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
  • TOLERANCE ALL DIMENSIONS ±.015.
  • 7. FOR WOOD DOOR APPLICATIONS SEE SHEET 2 (8300, 8900, 9900) OR SHEET 3 (8700, 9700, 9800)

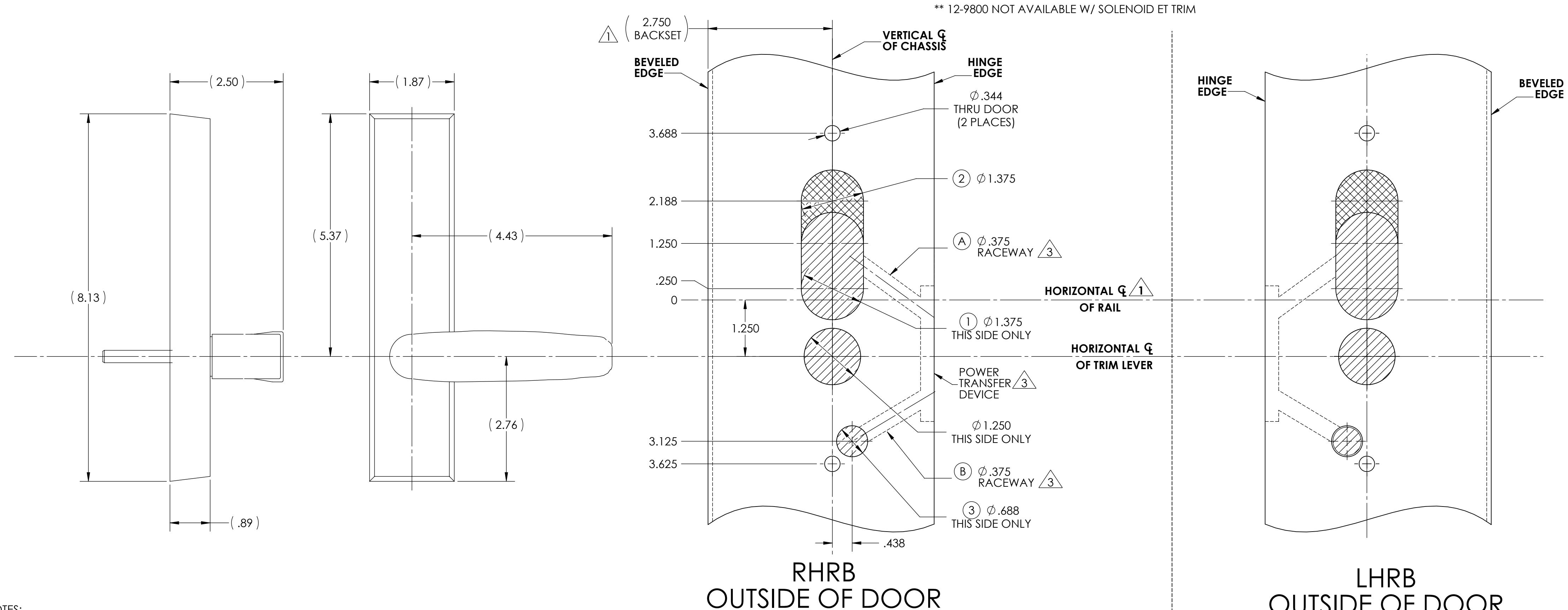

OUTSIDE OF DOOR

SARGENT Sargent Manufacturing Company ASSA ABLOY 100 Sargent Drive New Haven, CT 06511

DOOR MFG TEMPLATE: 54-700 LEVER MONITORING PET & 773, 774, 775, & 776 SOLENOID OPERATED O6-JUL-TET CONTROL. MORTISE EXIT DEVICES & SURFACE VERTICAL ROD EXIT DEVICES METAL DOOR (SHEET 1 OF 3)

EMPLATE NO. 4314 T

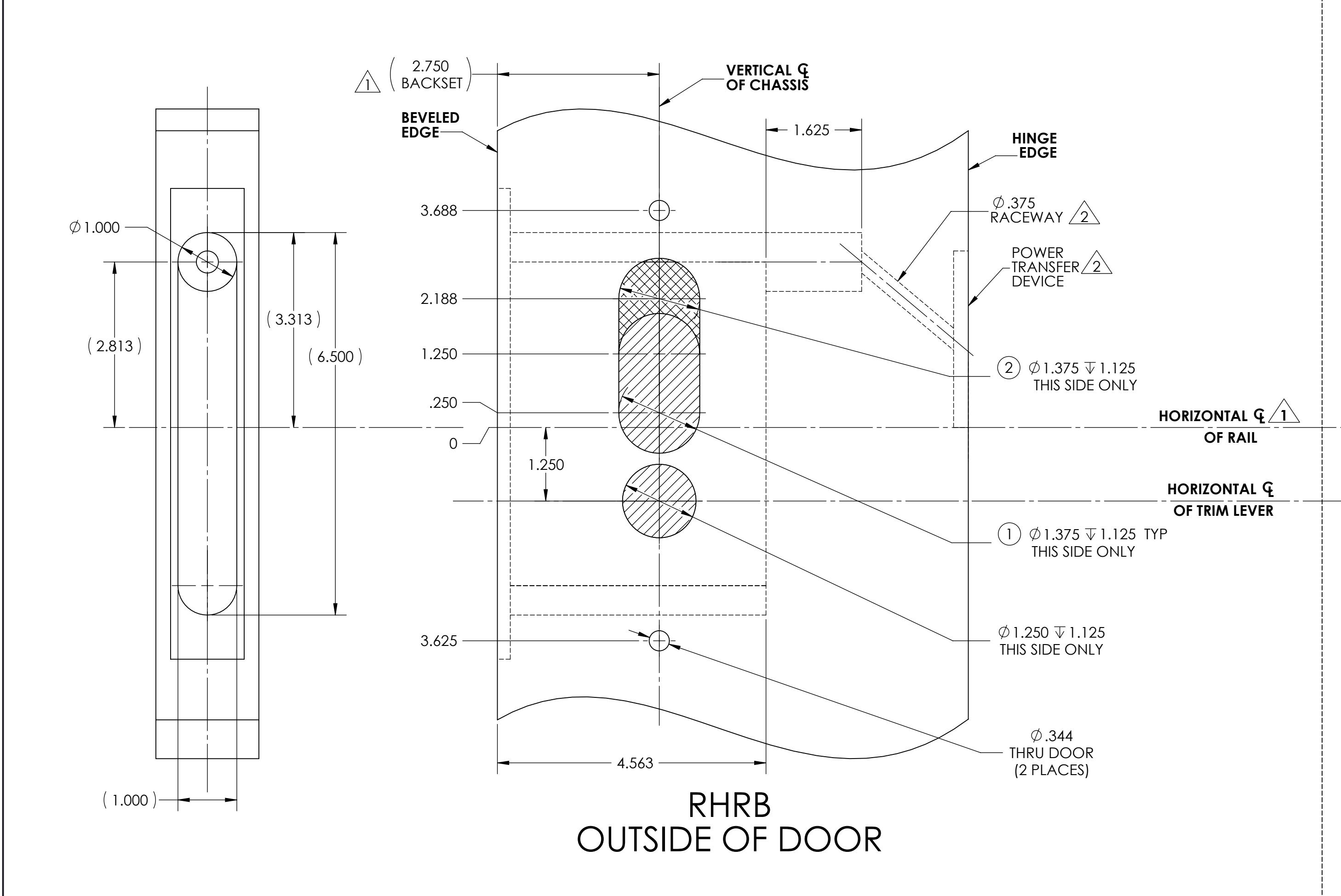

WOOD DOOR (8300, 8900, 9900)

SERIES FUNCTIONS FEATURE (1) (SOLENOID) FEATURE (2)
( CYLINDER )
8300, 8900, 9900 775, 776 X X
773, 774 X

NOTES:

  • FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE.
  • a. Ø.375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG. b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION. c. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE. d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT.
    • BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A 115 SPECIFICATIONS.
  • TOLERANCE ALL DIMENSIONS ±.015.
  • FOR TRIM DIMENSIONS OR METAL DOOR PREP SEE SHEET 1.
  • 6. FOR WOOD DOOR (8700, 9700, 9800) PREP SEE SHEET 3.

SARGENT Sargent Manufacturing Company ASSA ABLOY 100 Sargent Drive New Haven, CT 06511

DOOR MFG TEMPLATE: 773, 774, 775, & 776 SOLENOID OPERATED "ET" CONTROL MORTISE EXIT DEVICES WOOD DOOR - 8300, 8900, 9900 ( SHEET 2 OF 3 )

06-JUL-10 TEMPLATE NO. 4314 T

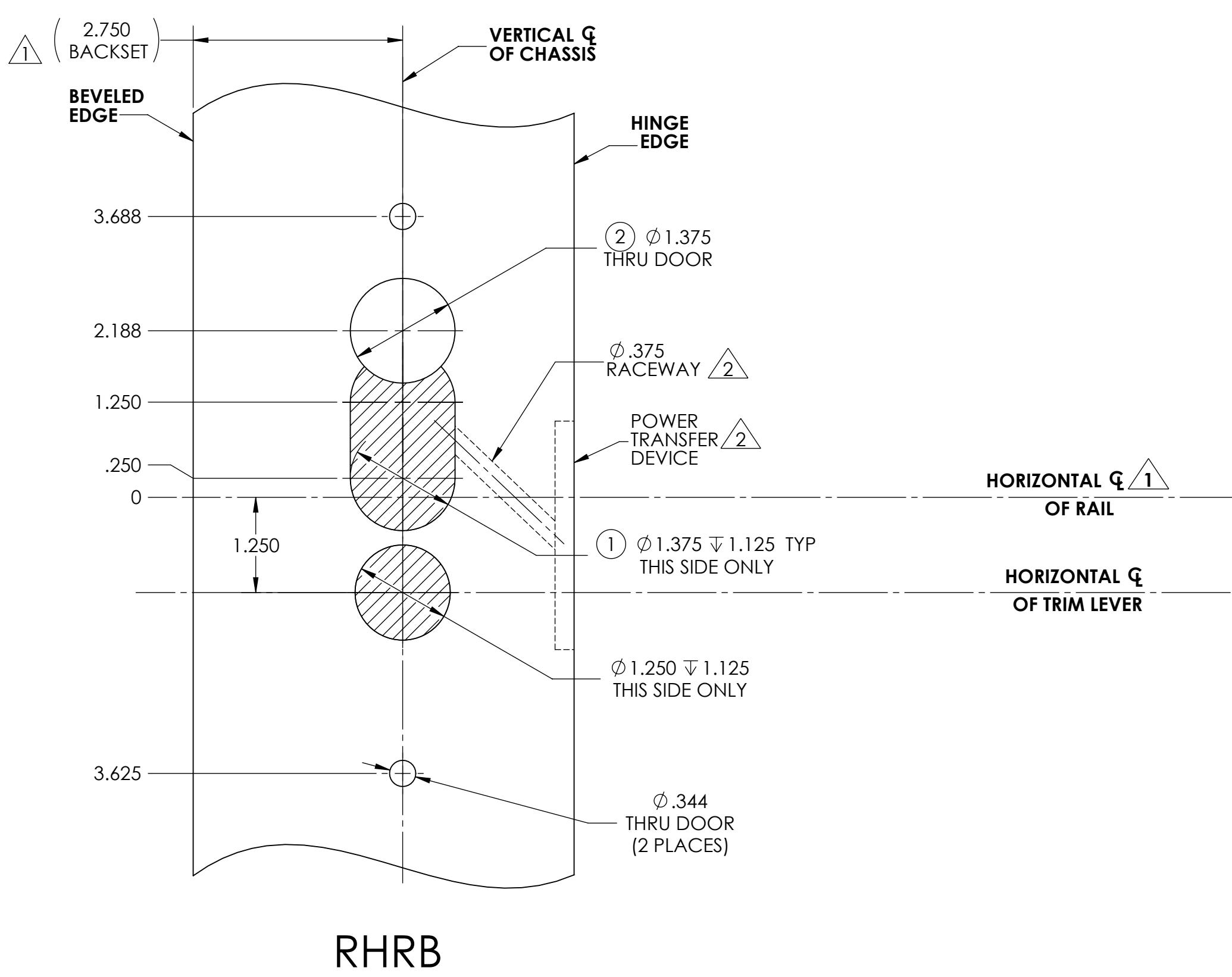

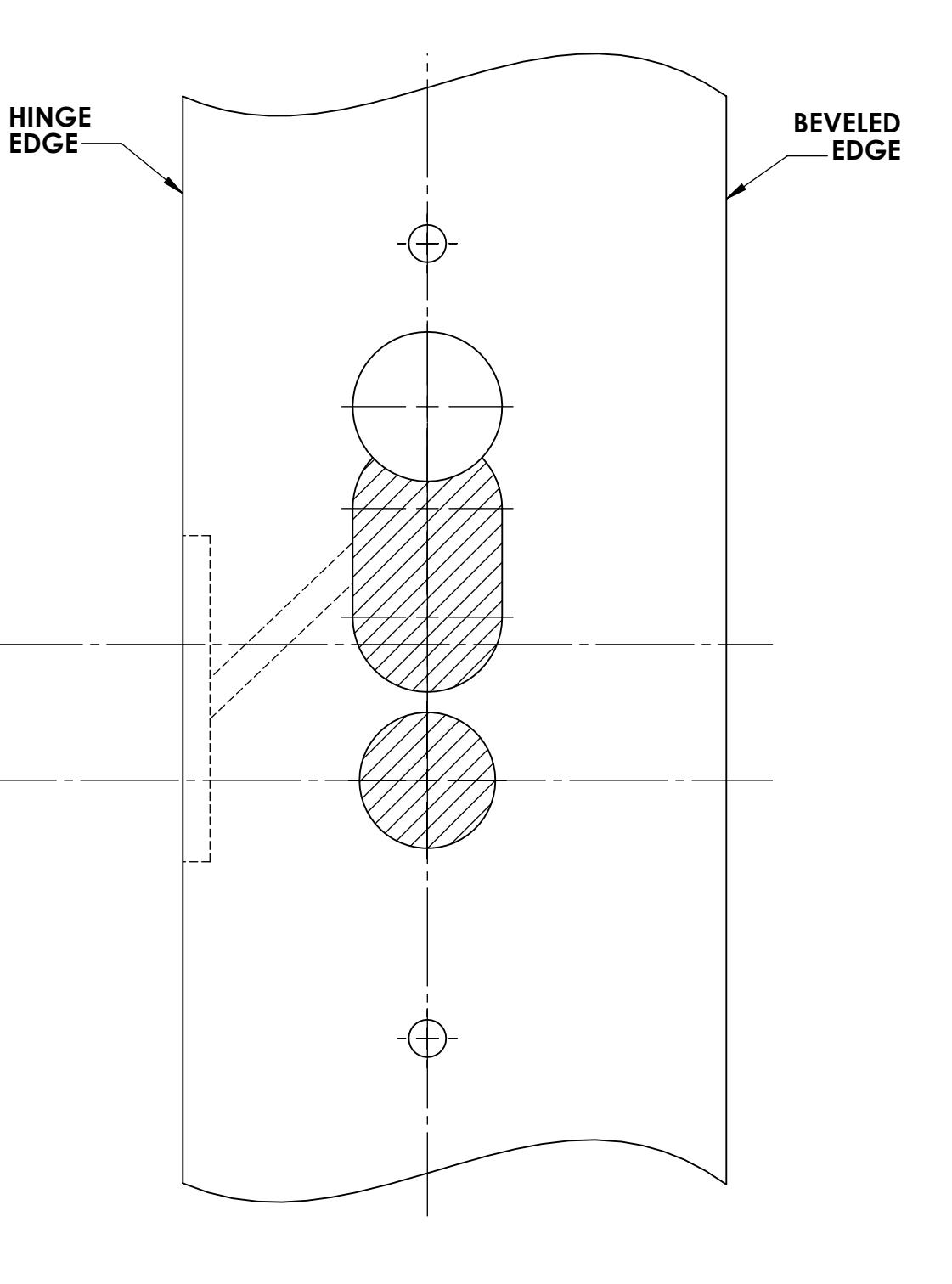

WOOD DOOR (8700, 9700, 9800)

SERIES FUNCTIONS FEATURE (1)
( SOLENOID ) 		FEATURE (2)
( CYLINDER )
9800** 775, 776 X X
8700, 9700, 9800** 773, 774 X

** 12-9800 NOT AVAILABLE W/ SOLENOID ET TRIM

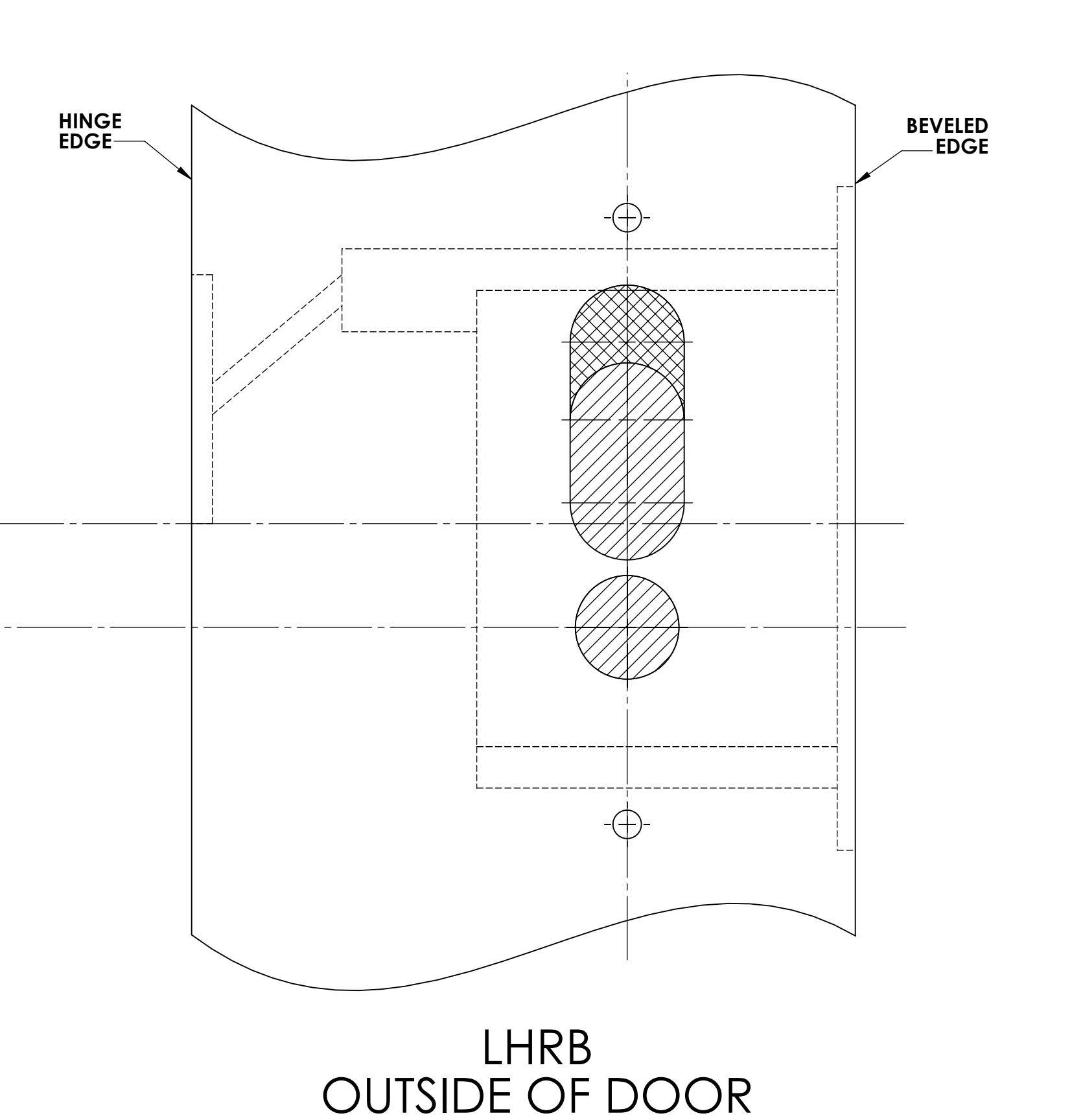

OUTSIDE OF DOOR

LHRB OUTSIDE OF DOOR

NOTES:

  • FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. a. Ø.375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG. b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION.
  • C. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE. d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT.
  • BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS. TOLERANCE ALL DIMENSIONS ±.015.
  • FOR TRIM DIMENSIONS OR METAL DOOR PREP SEE SHEET 1. FOR WOOD DOOR (8300, 8900, 9900) PREP SEE SHEET 2.

SARGENT Sargent Manufacturing Company ASSA ABLOY 100 Sargent Drive New Haven, CT 06511

DOOR MFG TEMPLATE: 773, 774, 775, & 776 SOLENOID OPERATED "ET" CONTROL SURFACE VERTICAL ROD EXIT DEVICES WOOD DOOR - 8700, 9700, 9800 ( SHEET 3 OF 3 )

06-JUL-10 EMPLATE NO. 4314 T
