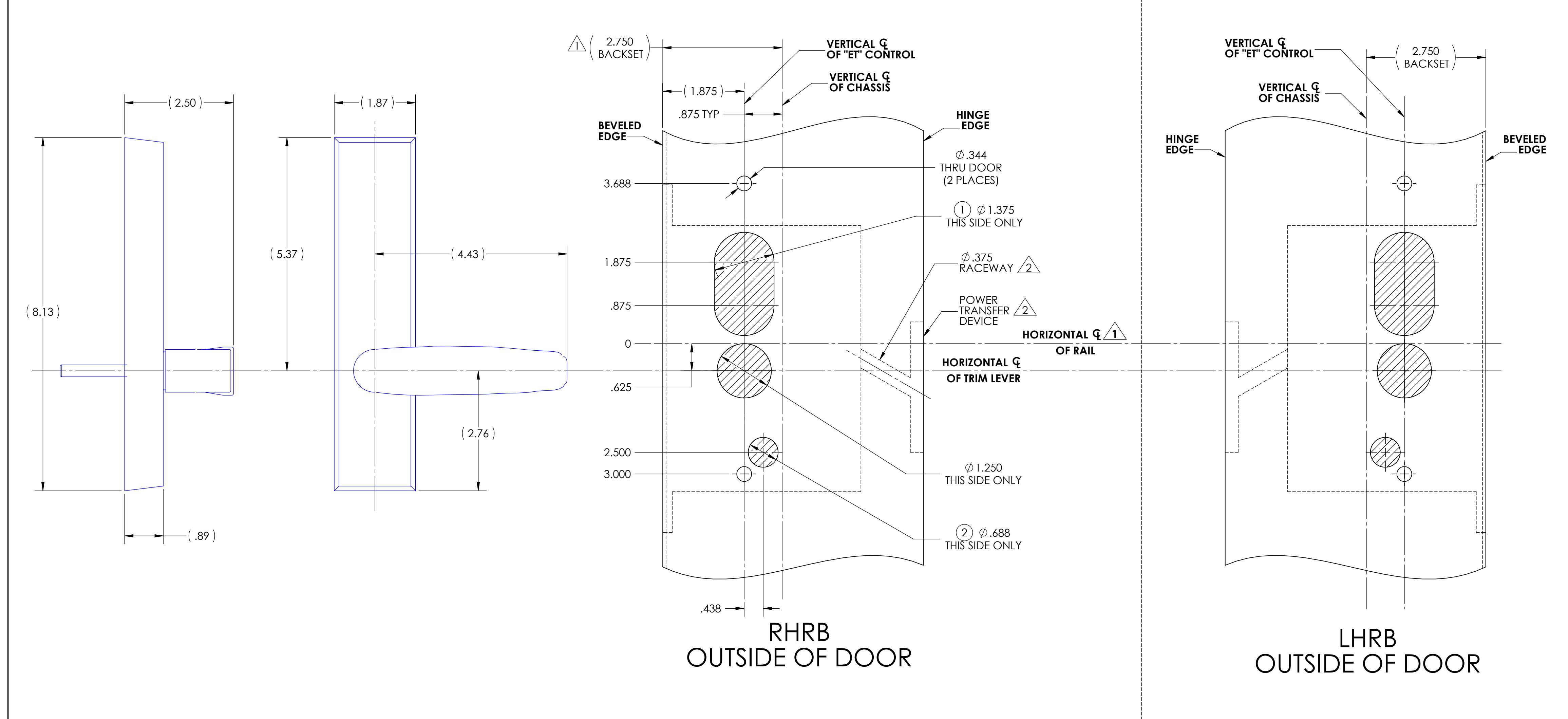

METAL DOOR

SERIES FUNCTIONS FEATURE (1) (SOLENOID) FEATURE (2)
( 54- PREFIX )
SP8600, PP8600,
PR8600, LS8600,
LP8600, LR8600 		773-6, 774-6 X
54-773-6, 54-774-6 X X
ALL OTHER 54-700-6 X

NOTES:

  • FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICE PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. a. Ø.375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG. b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION. C. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE.
  • d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT. SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS.
  • BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
  • TOLERANCE ALL DIMENSIONS ±.015.
  • 6. FOR WOOD DOOR PREP SEE SHEET 2.

SARGENT Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511 ASSA ABLOY

DOOR MFG TEMPLATE: 54-700-6 LEVER MONITORING "ET" & 773-6 & 774-6 SOLENOID OPERATED "ET" CONTROL FOR USE WITH SP/PP/PR/LS/LP/LR8600 & 12-SP/PP/PR/LS/LP/LR8600 CONCEALED CENTER & TOP LATCH EXIT DEVICES METAL DOOR (SHEET 1 OF 2)

06-JUL-10 TEMPLATE NO. 4547 B

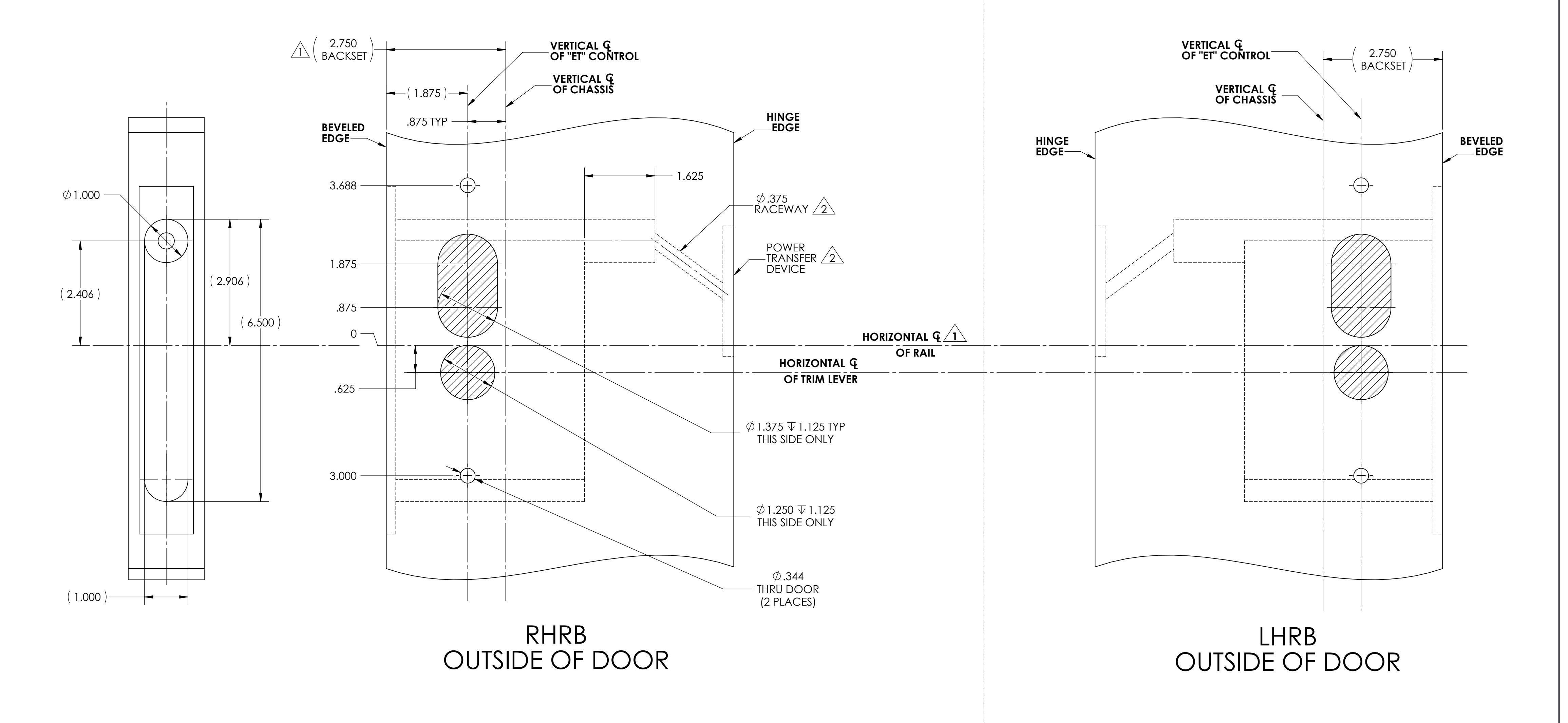

WOOD DOOR

NOTES:

  • FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE.
  • 2. a. \emptyset .375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG. b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION.
    • C. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE. d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT.
  • BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
  • TOLERANCE ALL DIMENSIONS ±.015.
  • FOR TRIM DIMENSIONS OR METAL DOOR PREP SEE SHEET 1.

SARGENT Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511 ASSA ABLOY DOOR MFG TEMPLATE: 773-6 & 774-6 SOLENOID OPERATED "ET" CONTROL FOR USE WITH SP/PP/PR/LS/LP/LR8600 & 12-SP/PP/PR/LS/LP/LR8600 CONCEALED CENTER & TOP LATCH EXIT DEVICES 06-JUL-10

WOOD DOOR (SHEET 2 OF 2)

TEMPLATE NO. 4547 B
