HiTower® MOD 7500 Series Frame Actuator Controlled Lockset

MAJOR BRAND MECHANICAL LOCK ELECTRIFICATION

Arrow Falcon Yale Best Dorma Falcon Corbin/Russwin Sargent Cal Royal Marks Hager Schlage

The HiTower® MOD series features the same benefits and application of the HiTower Pro, but adds the ability to retrofit the lock body of your choice. (see MODELS for lock compatibility)

SDC can provide an SDC lockset with lever handles complete with the industry renowned HiTower® frame actuator (HiTower® Pro). Or you may send the lock body of your choice to SDC for conversion (HiTower® MOD).

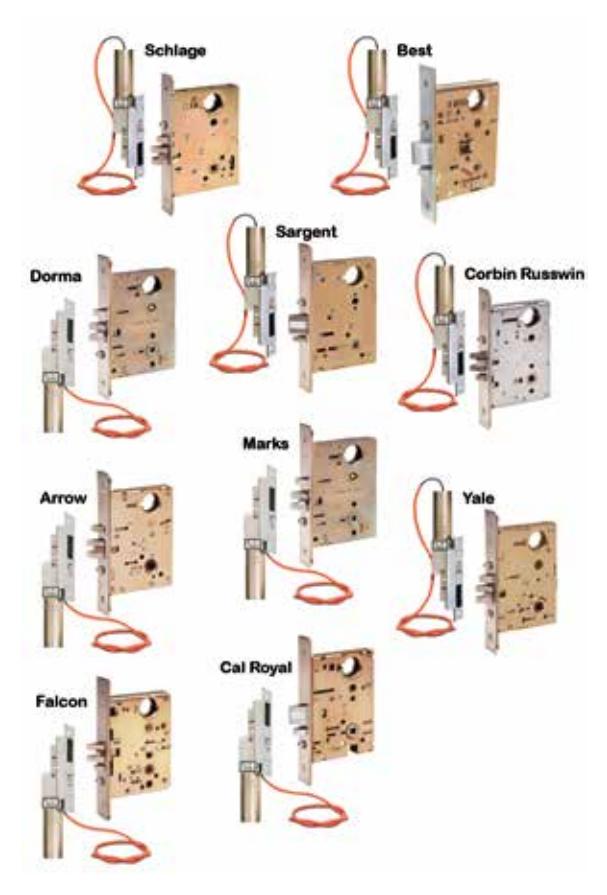

Major Brand Electrified Lock Chassis, Less Trim, PROVIDED BY SDC FACTORY

ZS Schlage

Mortise Lock SUPPLIED BY DISTRIBUTOR

for modification A Falcon

	(* Falcon - Distributor supplies faceplate)	020100-000
D	Sargent	8204
н	Hager	3880
	Corbin/Russwin	2057
N	Arrow	B12
0	Yale	7130F-L5 Exit Device
P	Yale	8805
R	Schlage Retro (Replaces 5000 Series)	L9080
S	Schlage	L9080
Т	Best	45H

All trademarks are property of their respective owners.

1

Dorma

Marks

M9000

5EW

LM-561/MA581

APPLICATIONS

• High-rise stairwell doors
• Elevator lobby doors
• Perimeter exit doors
• Hospital communicating bathroom
• Office doors

• Computer rooms
• Equipment rooms
• Pharmacy storage rooms
• Money counting rooms
• Security and safety mantraps

COMPETITIVE LOCK COMPARISON CHART

SDC - HiTower®	ACSI - Gemini	Corbin/Russwin
FAILSAFE
7530	8500-M2-PL	ML22960
		ML22907
7550	8500-M1-PL	ML22950
		ML22905
FAILSECURE
7560	8500-M2-PUL	ML22980
		ML22909
7570	8500-M1-PUL	ML22970
		ML22908
OPTIONS
SC-10	QC
L SPDT (Latch Status only)
S SPDT (Latch & Deadlock Status)	CLS Closed loop only (SPDT not available)
MORTAR GUARD
7500EB-S (1.75" - 2" Face Frames)	302-03-02
7500EB-N (1.25" - 1.5" Face Frames)	303-03-04

LOCK FUNCTION

Locked when energized, the failsafe mode is recommended for fire life safety applications. Such as, stairwell doors, perimeter exit doors and safety mantraps. Loss of power or a signal from the life safety system causes all doors to unlock for free uninhibited access and egress.

Recommended for Fire Life Safety Applications. Unlocked by power loss or signal from the fire life safety system. See SDC power supplies with fire life safety system interface for release of locks in an emergency.

7530 LOCKED FROM BOTH SIDES

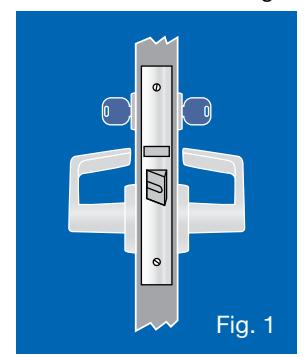

Locked when energized, unlocked by an access control, remote control or a key from either side (SEE FIG. 1).

Suggested use: Openings that are to be locked on both sides, such as: communicating doors; inner offices; safety mantraps.

7550 LOCKED OUTSIDE ONLY, FREE EGRESS FROM THE INSIDE

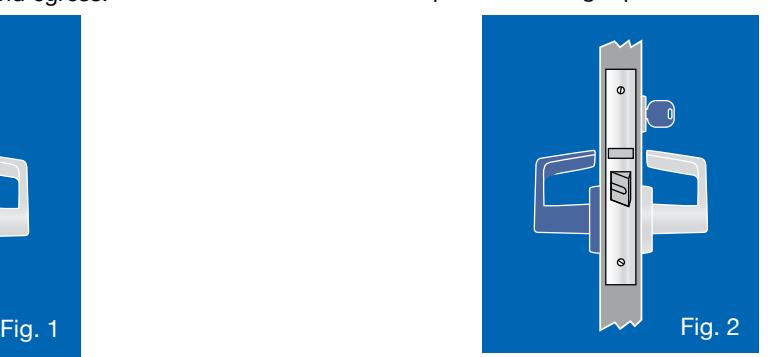

Locked when energized, unlocked by an access control, key from the outside. Uninhibited egress at all times by rotating the inside lever (SEE FIG. 2).

Suggested use: Stairwell doors, lobby doors, exit doors, inner offices, safety mantraps, communicating bathrooms.

FAILSAFE - POWER TO LOCK FAILSECURE - POWER TO UNLOCK

Locked when de-energized, the failsecure mode is recommended for security applications. Such as, inner offices, equipment rooms and security mantraps. Loss of power causes all doors to lock. Battery back-up is required for continued operation during a power loss.

7530 / 7560 7550 / 7570

Recommended for High Security Applications. Power loss causes doors to lock. See SDC power supplies for continued operation during power failures. (SDC and Schlage only)

7560 LOCKED FROM BOTH SIDES

Locked when de-energized, unlocked by an access control, remote control or a key from either side (SEE FIG. 1).

Suggested use: Openings that are to be locked on both sides, such as: communicating doors, inner offices, security mantraps.

7570 LOCKED OUTSIDE ONLY, FREE EGRESS FROM THE INSIDE

Locked when de-energized, unlocked by an access control, key from the outside. Uninhibited egress at all times by rotating the inside lever (SEE FIG. 2).

Suggested use: Inner offices, computer rooms, equipment or storage rooms, cashier rooms, security mantraps.

SPECIFICATIONS

Grade	ANSI 156.13 Grade 1
Backset	2.75"
Min. Door Thickness	1.75"
Weight	7.0 lbs
Electrical	.5 Amp @24VDC; .5 Amp @ 24VAC; .2 Amp @115Vac
Standard Frame Actuator Strike Prep
Dimension	Standard ANSI 4-7/8" x 1-1/4"
Face Frame Thickness	1-3/4" to 2"

Narrow Frame Actuator Strike
Dimension	8-1/2" x 1-1/4"
Face Frame Thickness	1-1/4" to 1-1/2"
Failsecure Actuator Strike
Dimension	SDC Z/ZR7560, Z/ZR7570: 4-7/8" x 1-1/4"
	Schlage ZS7560, ZS7570: 5-3/4" x 1-1/4"
Face Frame Thickness	2"

PRODUCT SKU SAMPLE: S 7550 LR C Q SC-10

1| SPECIFY MODEL

Major Brand Electrified Lock Chassis, Less Trim, Provided by SDC Factory ZS Schlage

Mortise Locks Supplied by Distributor

Distributors supply SDC with the mortise lock body and armored front (less trim) for modification. SDC returns the modified lock body with an electric actuator. Upon installation, two lever return spring cages (supplied by distributor) are required for proper operation.

A	Falcon (* Falcon - Distributor supplies face plate)	LM-561/MA581 020100-000
D	Sargent	8204
H	Hager	3880
I	Corbin/Russwin	2057
N	Arrow	B12
O	Yale	7130F-L5 Exit
		Device
P	Yale	8805
R	Schlage Retro	L9080
	(Replaces 5000 Series)
S	Schlage	L9080
T	Best	45H

2| SPECIFY FUNCTION

7530 Locked Both Sides, Failsafe 7550 Locked Outside Only, Failsafe

3| SPECIFY HAND

L Left Hand

LR Left Hand Reverse

R Right Hand

RR Right Hand Reverse

4| SPECIFY ACTUATOR VOLTAGE

STANDARD FAILSAFE ACTUATORS

For 1.750" to 2" face frames.

A 115VAC B 24VAC C 24VDC

NARROW FAILSAFE ACTUATORS

For 1.25" to 1.5" face frames. Special strike preparation required. D 115VAC E 24VAC F 24VDC

5| SPECIFY FINISH

C 605 Bright Brass

D 606 Dull Brass

F 611 Bright Bronze

G 612 Dull Bronze

H 613 Oil Rubbed Bronze

P 625 Bright Chrome

Q 626 Dull Chrome (Standard)

7560EB-2 For Failsecure Actuators Installed in 2" Face Frames

S 629 Polished Stainless

U 630 Dull Stainless

6| SPECIFY ADD-ONS: (OPTIONAL)

U Dorma M9000 V Marks 5EW

SC-10-5 Socket Connectors with 10 ft.

Cable for Power and Options

LOCK STATUS AND WIRE HARNESS SPECIAL STRIKES

L	Latch Status Switch, SPDT 3 Amps @ 30VDC	SSP	Special Retrofit Strike Plate
S	Latch and Deadlock Status 3 Amps @ 30VDC		MORTAR GUARD ELECTRIC BACK BOXES FOR FRAME ACTUATORS WITH CONDUIT KNOCKOUTS
SC-10	Socket Connectors with 10 ft. Cable, Power Wiring Only	7500EB-S	For Standard Actuators in 1-3/4" or 2" Face Frames
		7500EB-N	For Narrow Actuators in 1-1/4" or 1-1/2" Face Frames
