7300 Parts Manual
Open the original PDF document
View PDF
7300 Series

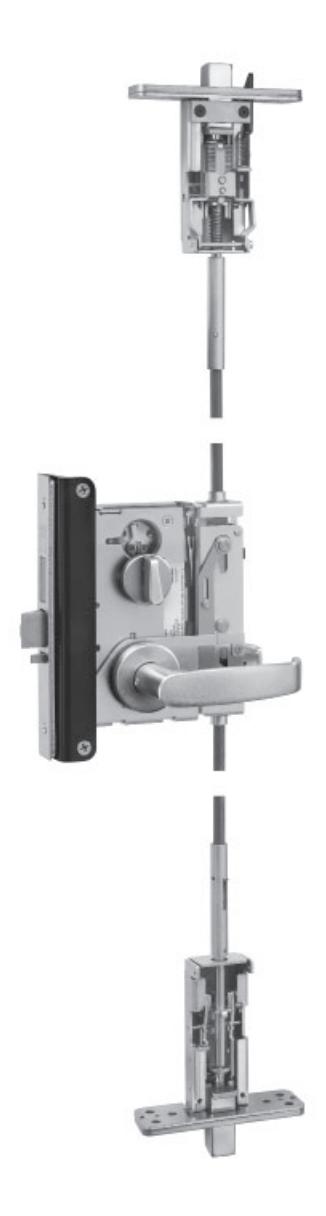

Multi-Point Locks
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.
| Item | Part No. | Description | Sellable |
|---|---|---|---|
| 1 | 82-5342 | Multipoint Cassette | Yes |
| 2 | 82-5345 | Trim Mounting Screw Pack | Yes |
| 3 | 82-5346 |
Top/Bottom Case Mounting
Screw Pack |
Yes |
| 4 | 82-5347 | Top Strike Pack | Yes |
| 5 | 82-5348 | Bottom Strike Pack | Yes |
| 6 | 82-5349 |
Mortise Mounting/Reinforcement
Pack |
Yes |
| 7 | 82-5350 | Center Strike Pack | Yes |
| 8 | 188 |
Dogging Indicator1
(Includes Item 11) |
Yes |
| Item | Part No. | Description | Sellable |
|---|---|---|---|
| 9 | 680T2 | Top Case And Rod Assembly2 | Yes |
| 10 | 82-5387 | Bottom Case And Rod Assembly2 | Yes |
| 11 | 82-5400 | Dogging Indicator Screw Pack1 | Yes |
| 12 | 01-4597 | T-Wrench, 3/32" Adjustment | Yes |
| 13 |
Consult
Factory |
O/S Front | Yes |
| 14 |
Consult
Factory |
Mortise Lock | Yes |
| 15 |
Consult
Factory |
Mortise Trim | Yes |
| 16 |
Consult
Factory |
Cylinder | Yes |
- 1. Specify fi nish
- 2. Specify door size
|
9
11 |
3
8 |
|---|---|
|
1
16 |
12
15 14 2 |
| 10 |
7
13 6 15 |
| 5 |
SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com
