70377 Template – Angle Jamb Bracket for 7000 Series
Open the original PDF document
View PDFANGLE BRACKET FOR 7000 SERIES FLUSH MOUNT

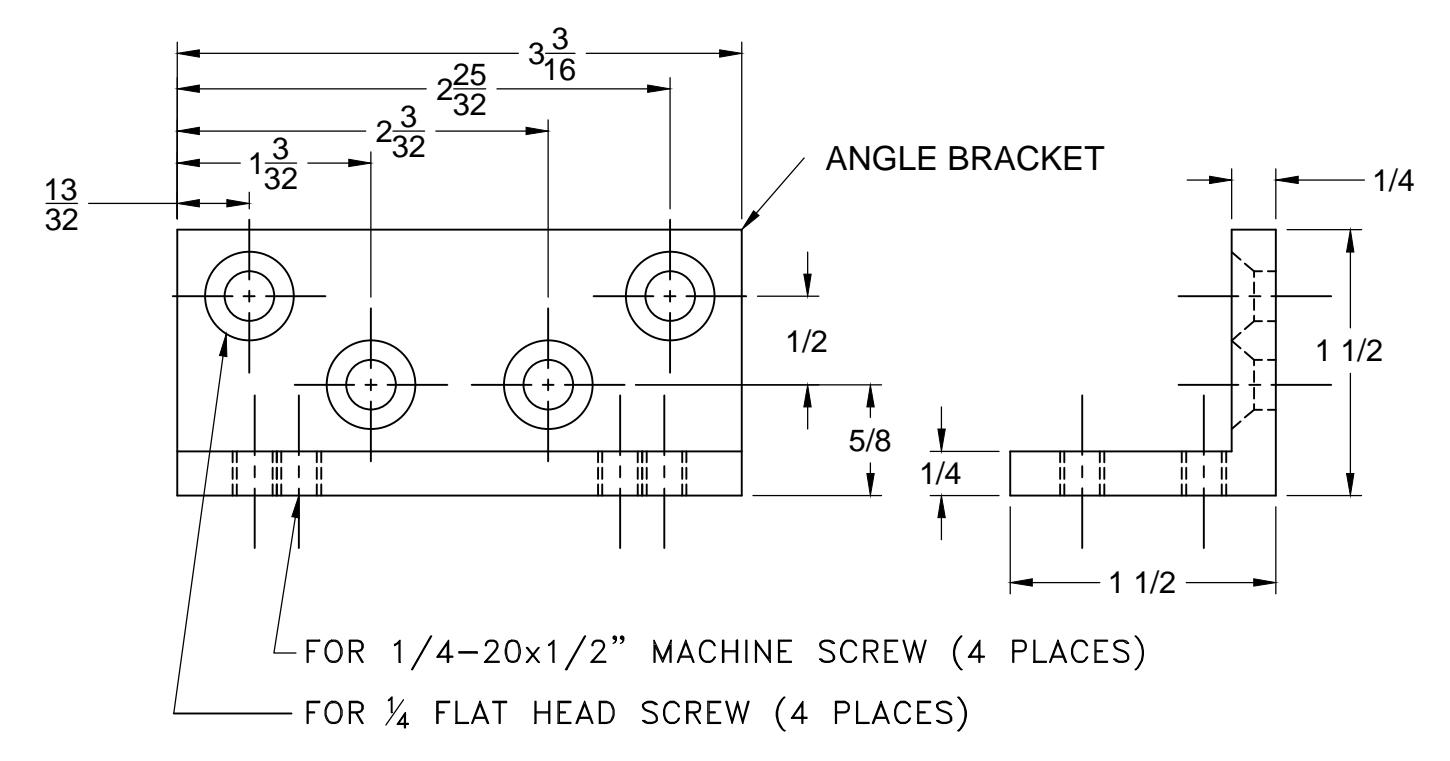

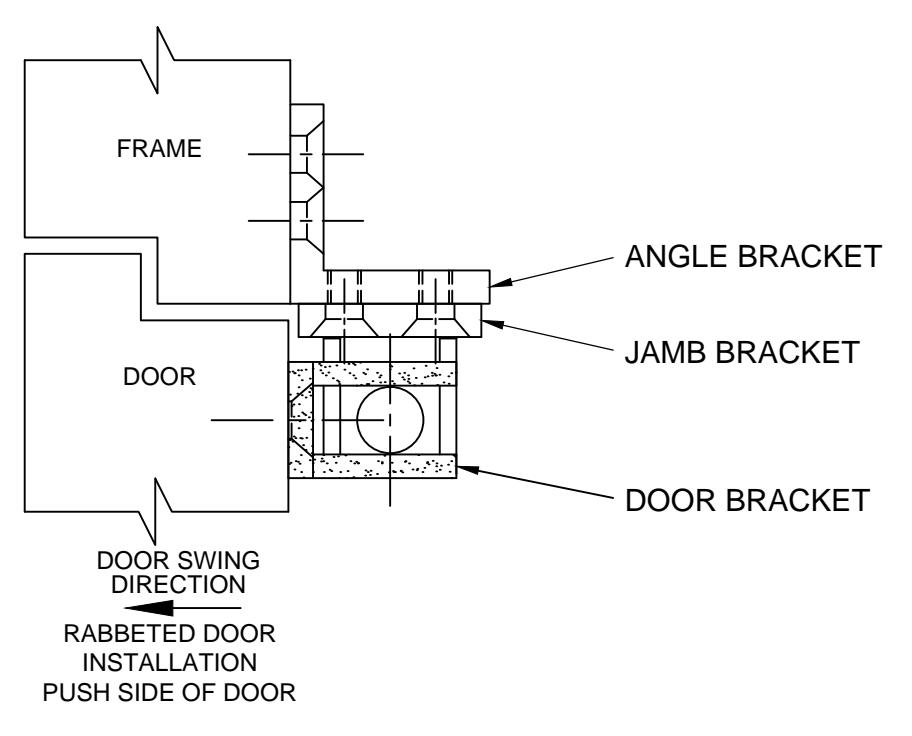

THE ANGLE BRACKET IS SECURED TO THE HEADER WITH WOOD OR MACHINE SCREWS. THE JAMB BRACKET FASTENS TO THE ANGLE BRACKET WITH MACHINE SCREWS. THE DOOR BRACKET MOUNTS ON THE DOOR WITH THROUGH SCREWS AND GROMMET NUTS
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
-
© 2018 ABH Mfg., Inc.
printed in USA
70377 PAGE 1 OF 1 ISSUED 10-24-18
70377-01.DWG
