700-8 ET, NB-8700 Exit Device Trim

SARGENT

ASSA ABLOY

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-users needs for security, safety, and convenience

$Copyright\; @\backslash \; 2013,\; 2019,\; SARGENT\backslash \; Manufacturing\backslash \; Company.\backslash \; All\backslash \; rights\backslash \; reserved.\backslash \; Reproduction\backslash \; in\backslash \; whole\backslash \; or\backslash \; in\backslash \; part\backslash \; without\backslash \; the\backslash \; express\backslash \; written\backslash \; permission\backslash \; of\backslash \; SARGENT\backslash \; Manufacturing\backslash \; Company\backslash \; is\backslash \; prohibited.$

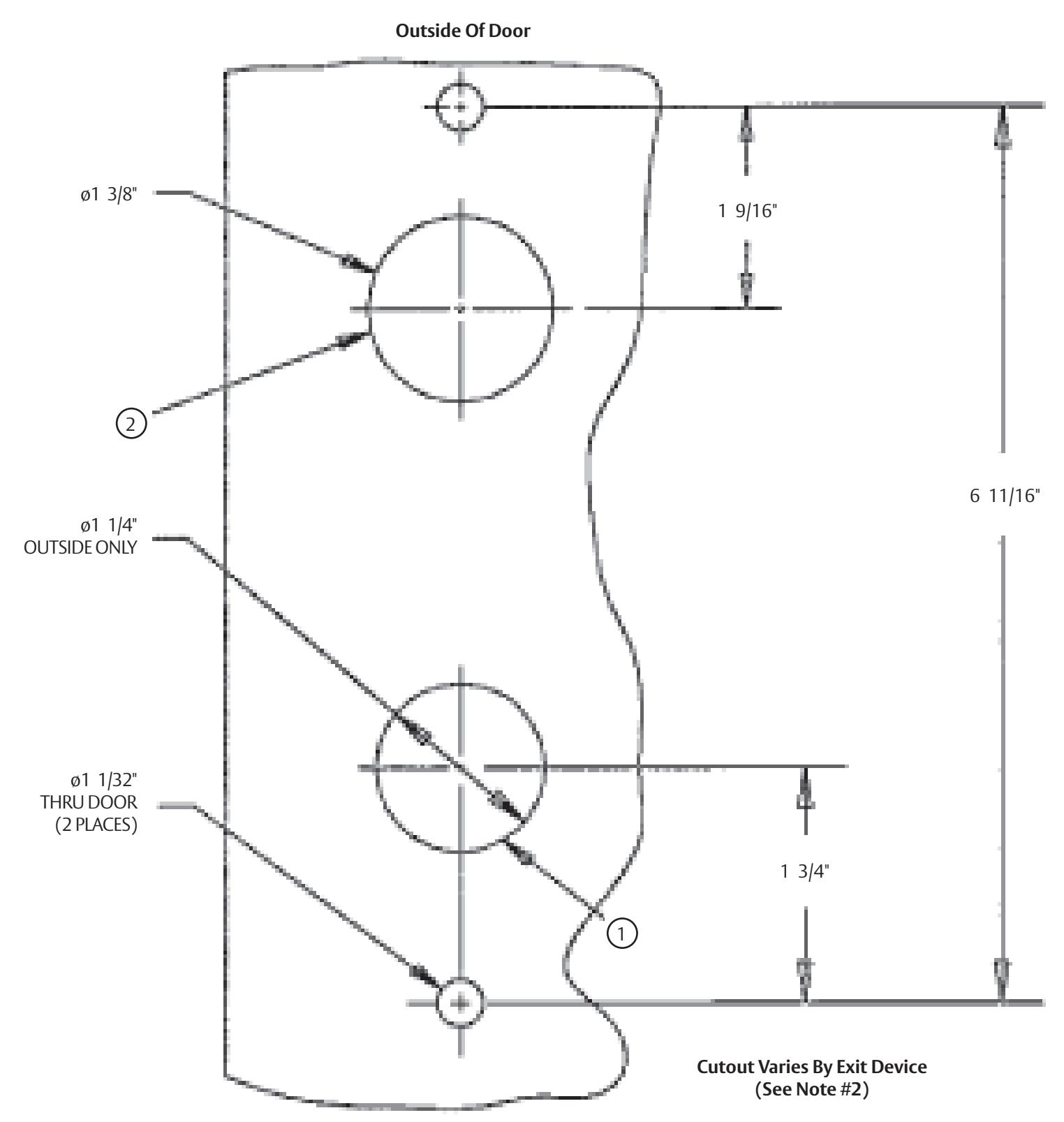

Metal Door Template

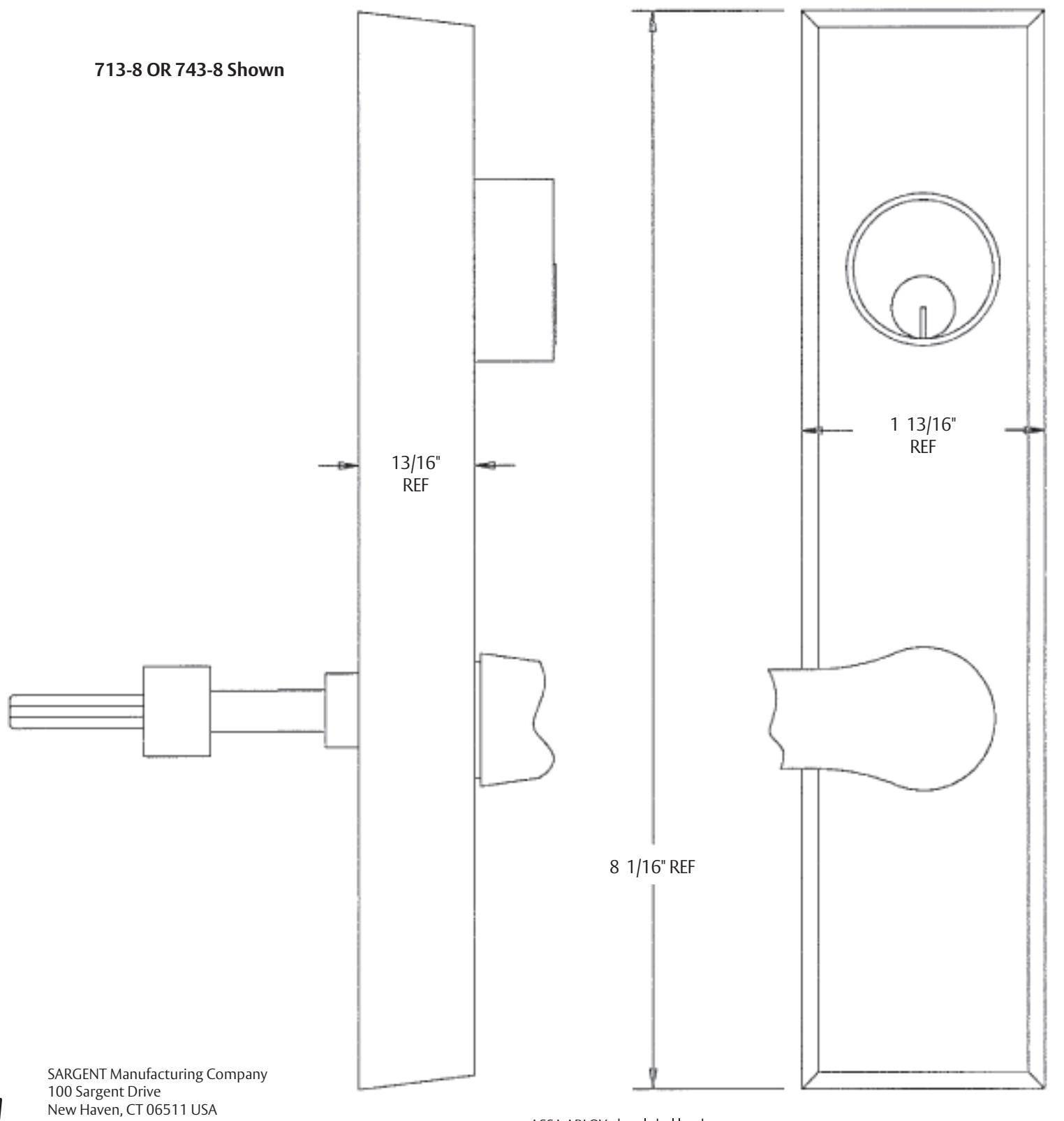

700-8 SERIES ET CONTROL x 8800, 12-8800, 8888, 12-8888, HC8800, 12-HC8800, NB8700, 12-NB8700 SERIES EXIT DEVICE

• 1. Refer to exit device template for locations of vertical and horizontal center line of cylinder.
• 2. Important: For all cutouts on inside of door, refer to exit device template.

Functions	Hole No.
	1	2
4, 44	-	Χ
10, 40	-	-
06, 13, 15, 43, 46	Χ	-

Note 04, 44 functions not available for NB8700 or 12-NB8700
