700-4 ‘ET’ Control for MD8600, 12-MD8600, 8400, and 12-8400

NOTES:

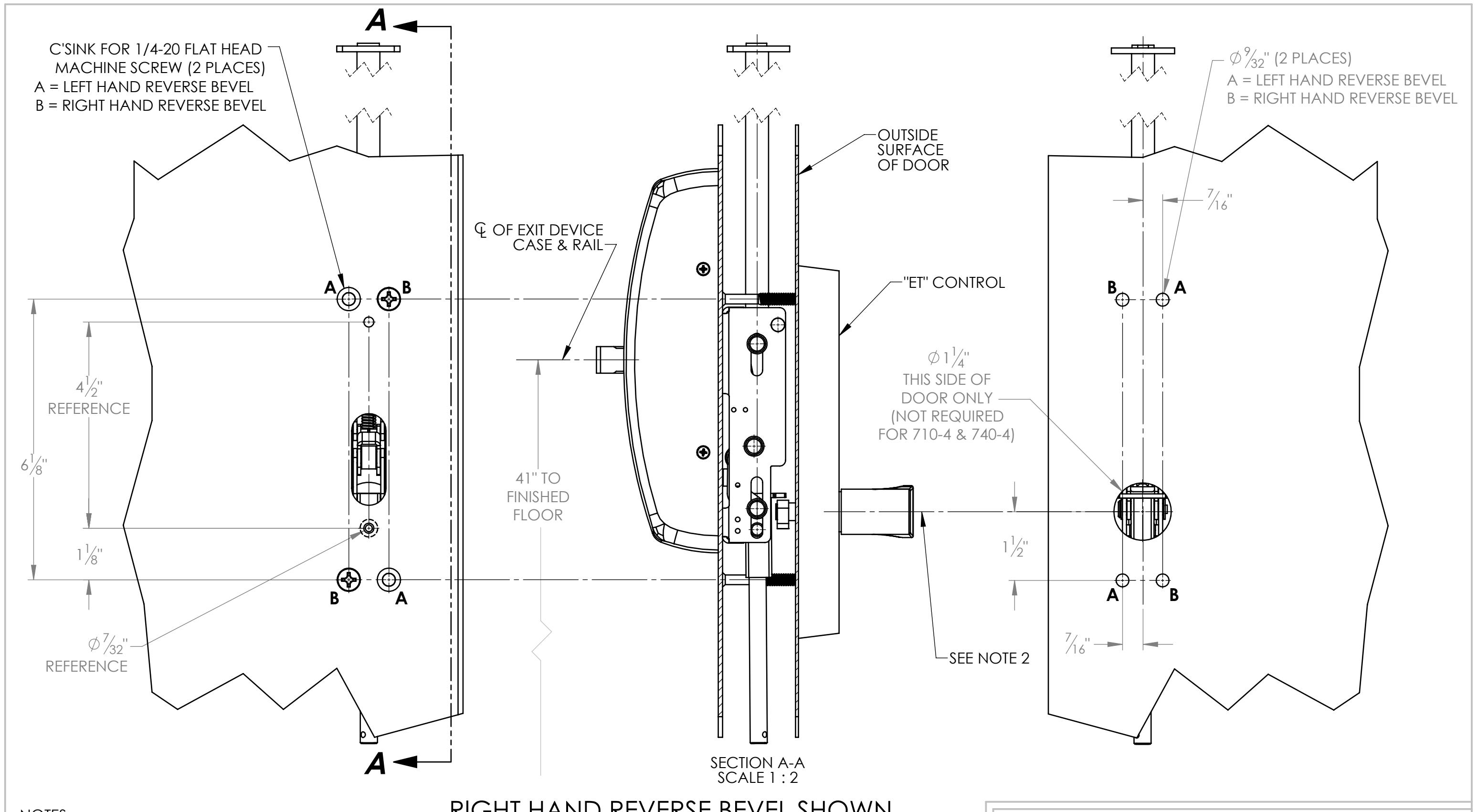

RIGHT HAND REVERSE BEVEL SHOWN

FOR ADDITIONAL DOOR PREPARATIONS: SEE INSIDE TRIM TEMPLATE #4312 FOR 8400 CONCEALED VERTICAL ROD DEVICE SEE INSIDE TRIM TEMPLATE #4447 FOR 12-MD8400 CONCEALED VERTICAL ROD DEVICE SEE INSIDE TRIM TEMPLATE #4445 FOR MD8600 & 12-MD8600 CONCEALED VERTICAL ROD DEVICE FOR REFERENCE PURPOSES ONLY: Q OF LEVER HANDLE IS 37-3/4" FROM FINISHED FLOOR. SEE TEMPLATE #4571 FOR ELECTROLYNX DETAILS WHEN NEEDED.

SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

TEMPLATE: FOR 700-4 "ET" CONTROL FOR USE WITH MD8600, 12-MD8600, MD8400, AND 12-MD8400 CONCEALED VERTICAL ROD EXIT DEVICES

RELEASE DATE 23 JAN 2018

TEMPLATE NO. 4448 J
