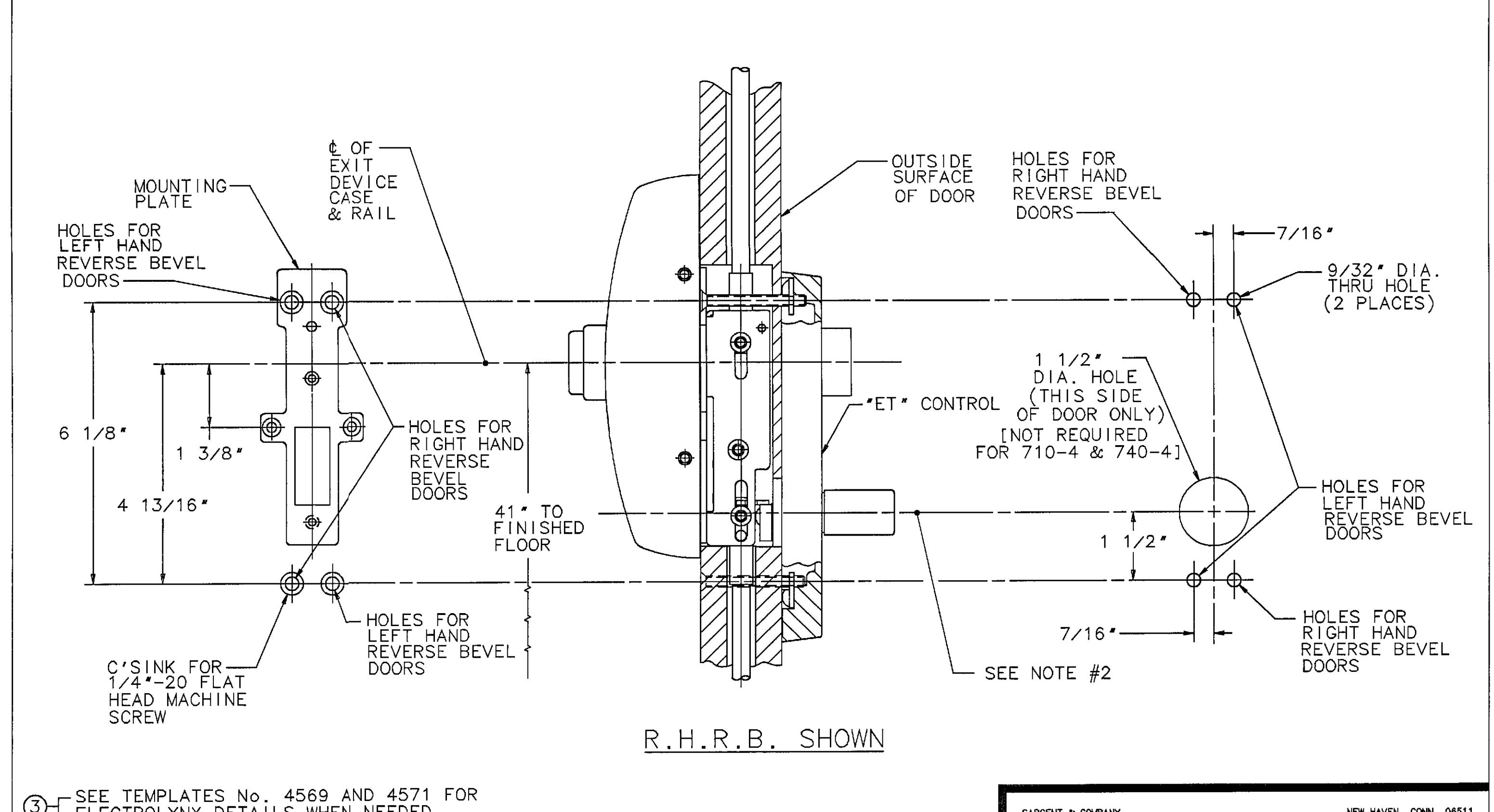

700-4 ‘ET’ Control for 12-WD8600 Concealed Vertical Rod Exit Device

3-SEE TEMPLATES No. 4569 AND 4571 FOR ELECTROLYNX DETAILS WHEN NEEDED.

FOR REFERANCE ONLY: CENTERLINE OF LEVER HANDLE IS 37 11/16" FROM FINISHED FLOOR.

1 FOR ADDITIONAL DOOR PREPARATIONS SEE APPROPRIATE INSIDE TRIM TEMPLATE.

SARGENT & COMPANY NEW HAVEN, CONN. 06511 RELEASE DATE TEMPLATE: FOR 700-4 "ET" CONTROL FOR USE WITH WD-(12)-8600 CONCEALED TEMPLET NO. VERTICAL ROD EXIT DÉVICE 4436 E
