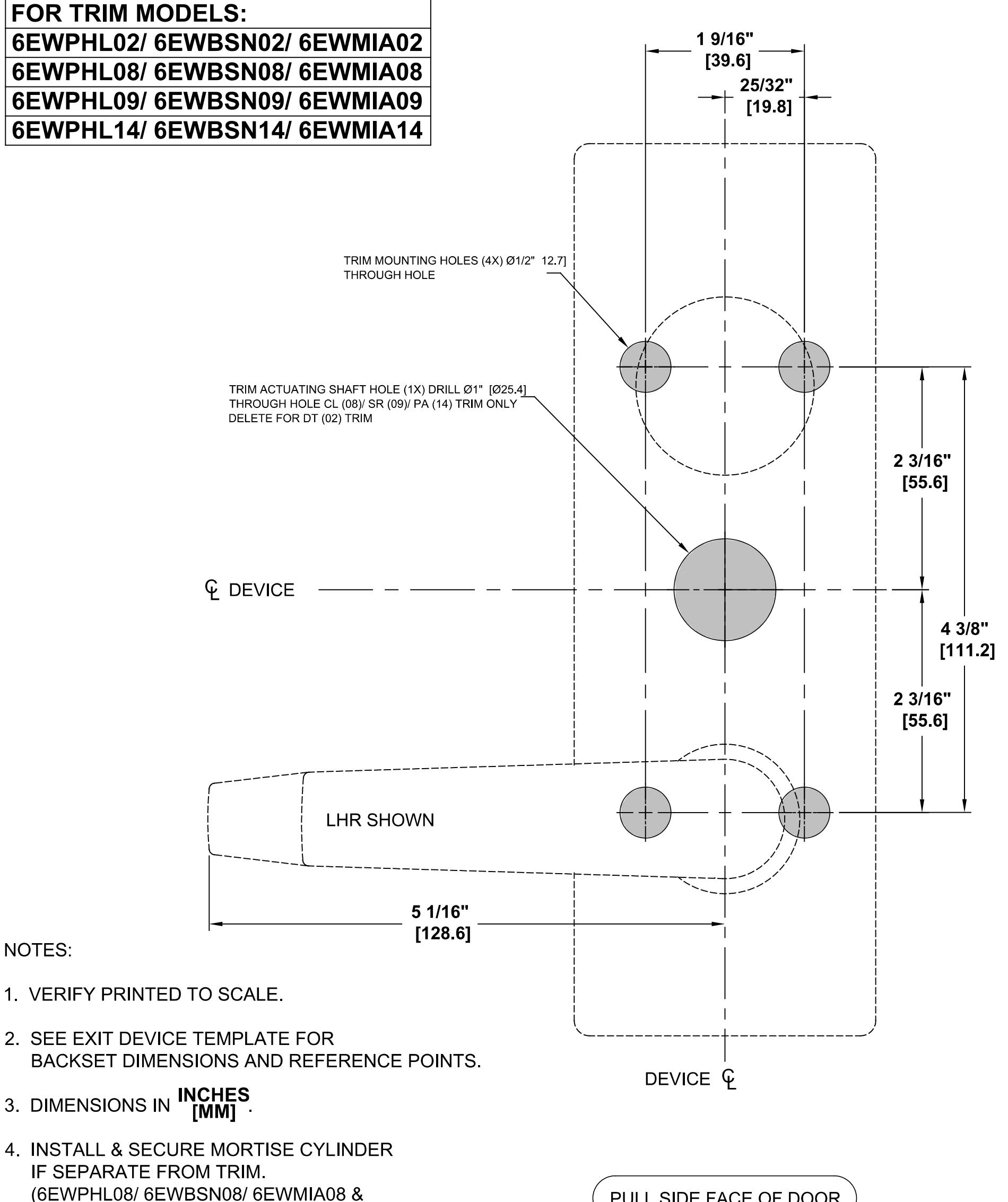

ALL 6EW WIDE ESCUTCHEON TRIM MODELS

FOR 6200R/6200V/6200CV SERIES EXIT DEVICES

5. HEIGHT OF ESCUTCHEON = 8-3/4" [222.3].

6EWPHL09/ 6EWBSN09/ 6EWMIA09 ONLY).

  • 6. WIDTH OF ESCUTCHEON = 2-15/16" [74.6].
  • 7. PROJECTION OF ESCUTCHEON = 15/16" [23.8] (EXCLUDING LEVER & CYLINDER COLLAR).
  • 8. TOTAL TRIM PROJECTION = 3-1/8 [79.4].
  • 9. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PULL SIDE FACE OF DOOR

TEMPLATE: 629315

1-30-18

REV: 1

2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com
