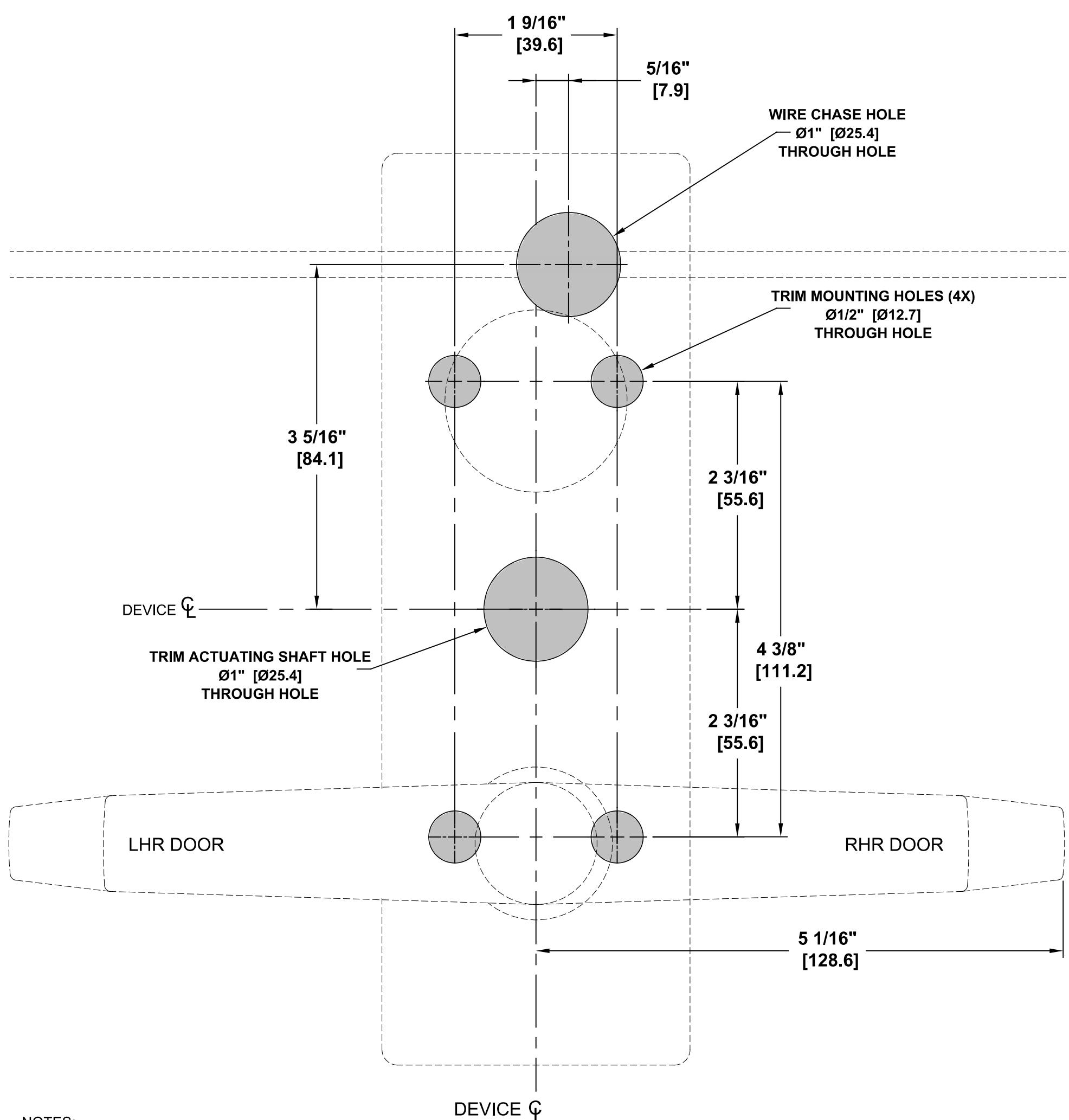

6EW 199A WIDE ESCUTCHEON TRIM FOR 6200R/6200V/6200CV SERIES EXIT DEVICES

TEMPLATE: 629320 REV. 4 5-5-20

NOTES:

1. VERIFY PRINTED TO SCALE.
2. SEE EXIT DEVICE TEMPLATE FOR BACKSET DIMENSIONS AND REFERENCE POINTS.
3. DIMENSIONS IN INCHES [MM].
4. INSTALL & SECURE MORTISE CYLINDER IF SEPARATE FROM TRIM.
5. HEIGHT OF ESCUTCHEON = 8-3/4" [222.3].
6. WIDTH OF ESCUTCHEON = 2-15/16" [74.6].
7. PROJECTION OF ESCUTCHEON = 15/16" [23.8] (EXCLUDING LEVER & CYLINDER COLLAR).
8. TOTAL TRIM PROJECTION = 3-1/8 [79.4].
9. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

PULL SIDE FACE OF DOOR

2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com
