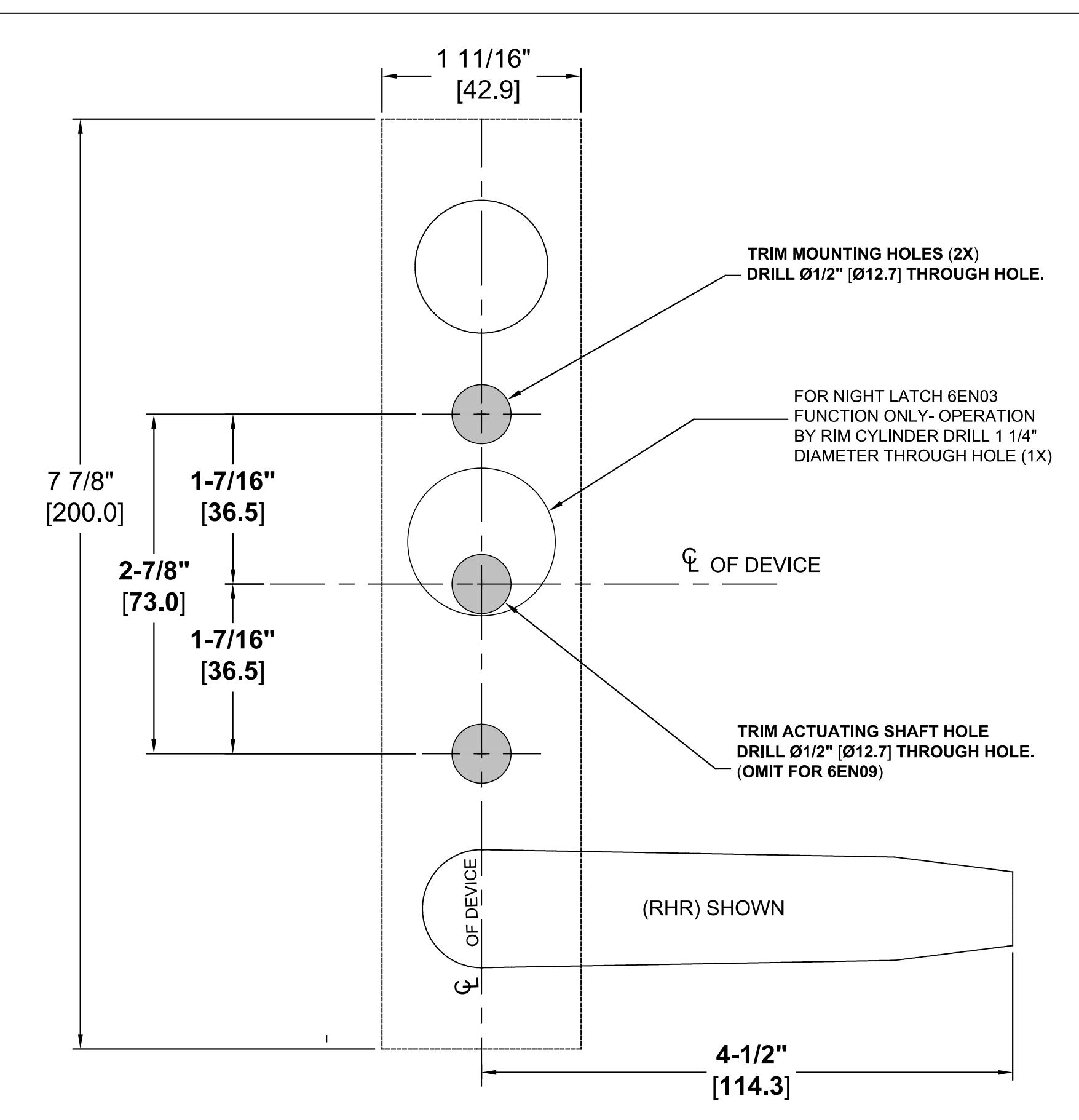

6EN ALL FUNCTIONS NARROW ESCUTCHEON TRIM MODELS

FOR 6200 & 6202 SERIES EXIT DEVICES

TEMPLATE: 629327 REV. 0 2-18-18

PULL SIDE FACE OF DOOR

NOTES:

  • 1. VERIFY PRINTED TO SCALE
  • 2. SEE EXIT DEVICE TEMPLATE FOR BACKSET DIMENSIONS AND REFERANCE POINTS
  • 3. DIMENSIONS IN INCHES [MM]
  • 4. INSTALL & SECURE MORTISE CYLINDER FURNISHED 629LPEKFH / LPEKXH ONLY
