S p e c i a l t y Exit C o n t r o l s

Double Gang

6901 Series Pushplates

DynaLock Specialty Exit Controls provide "out of the box" solutions to meet specific codes or mandates governing egress requirements within a facility, municipality or region.

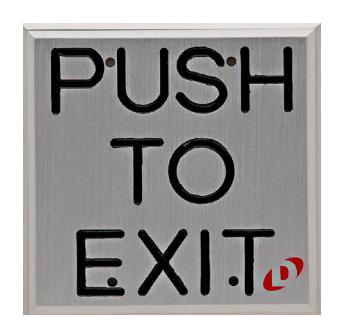

6901 Series are tamper resistant, heavy duty double gang pushplates machined from solid aluminum. All models with "PUSH TO EXIT" signage engraved. Lettering is black with 1/8" stroke and 1" height (minimum). All momentary models feature "all active" operation. Standard finish - Satin Aluminum US28

PTD Contact Rating: 10 A @ 125VAC / UL

All Others: 6 A @ 125VAC / UL

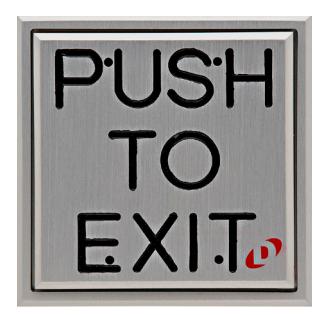

Double Gang Recessed

MODEL	PRODUCT	WEIGHT
6901	Double Gang 1-60 Sec. PTD, FORM Z	1.3 Lbs.
6911	Double Gang A-A, SPDT	1.3 Lbs.
6921	Double Gang A-A, DPDT	1.4 Lbs.
6931	Double Gang MOM, SPDT	1.3 Lbs.
6941	Double Gang MOM, DPDT	1.4 Lbs.
6951	Double Gang, Recessed 1-60 Sec. PTD, FORM Z	1.4 Lbs.
6961	Double Gang, Recessed A-A, SPDT	1.4 Lbs.
6971	Double Gang, Recessed A-A, DPDT	1.5 Lbs.
6981	Double Gang, Recessed MOM, SPDT	1.4 Lbs.
6991	Double Gang, Recessed MOM, DPDT	1.5 Lbs.

OPTIONS

SF Special Finishes - US28 standard. US3, US4, US10, US13, US10B, US19, US26 available.

NOTES:

A-A Alternate Action (Maintained)

MOM Momentary Action

SPDT Single Pole Double Throw DPDT Double Pole Double Throw PTD Pneumatic Time Delay

FORM Z Single Pole Double Throw, Double Break
