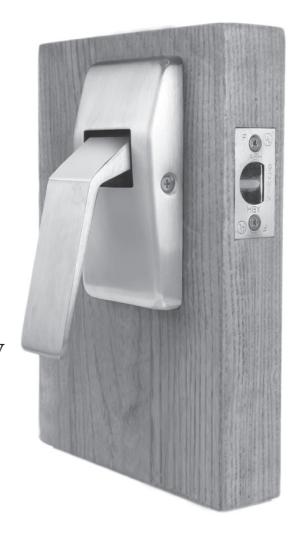

Hospital Push/Pull Latches

6830 Series – Low Profile Reverse Cylindrical Latches

Standard Features

• Ideal for time-out rooms, behavioral settings and other similar institutions
• Latch bolt is always retracted until handle is activated
• When handle is activated, the latch bolt projects until the handle is released

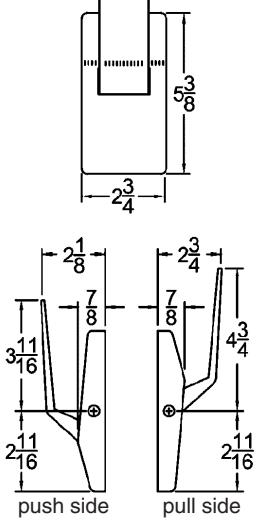

• Push or pull handle trim assembly on one side and flat plate on other side of door.
• Cylindrical reverse latch application passage function
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
• Linear acting cam which provides for a smoother operating unit
• One continuous spring provides a smoother operation and an extended life for the unit
• UL Listed in U.S.A and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• Patent# 7,258,374

Models

Push Down Left Hand

Pull Down

Push Up Left Hand

Pull Up Left Hand

Push Down Right Hand

Pull Down Right Hand

Push Up Right Hand

Pull Up Right Hand

How to Order:

Example: 6831 – 2 A – US32D – AM

Model: • 6830 • 6831 • 6832 • 6833 • 6834 • 6835 • 6836 • 6837 Latch Backset: • 2 = 2-¾" • 5 = 5" • 3 = 3-¾" • 7 = 7" Strike: • T = 2-¾" T-Strike

• A = 4-7/8" ASA Strike

Finish: ------------------------------------

US26D • US26 • US10 • US4Options, if Needed: -

• H • AM • L • EX • X • RC • THICK • P (See pages C-3 to C-5 for details)
