6800Q and LR6000Q Cut Sheet

Open the original PDF document

Introducing the New ABH® 6800Q and LR6000Q Quiet Hospital Latches...

A quiet environment creates a healing environment

Independent Testing of Hospital Latch Units when latch is Pushed or Pulled to retract the latch

Tel (630) 875-9900 · www.abhmfg.com · abhinfo@abhmfg.com

Innovation, Quality, Customer Service

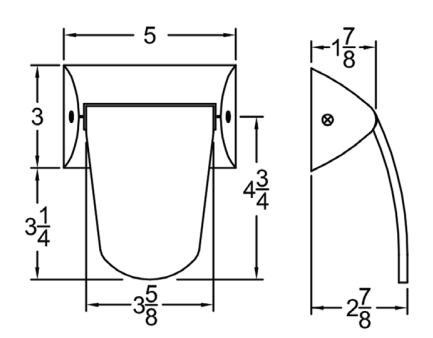

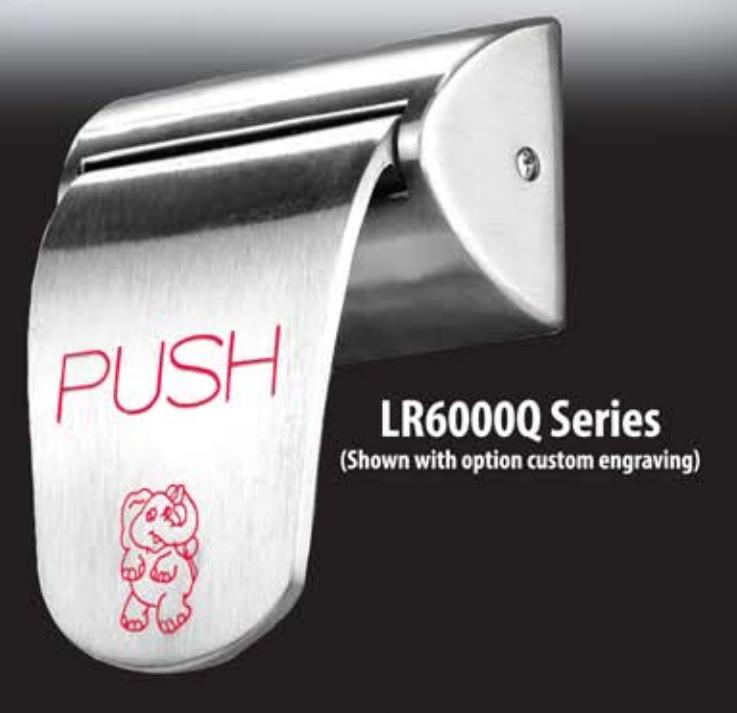

New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
1-¾" standard door thickness (specify if different)
Meets ADA requirements
Trim is mounted using four thru-bolts for maximum stability
Non-handed for installation and stocking ease
Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
Custom engraving available
Patents Pending

Comes standard with Round Cover (suffix "RC")

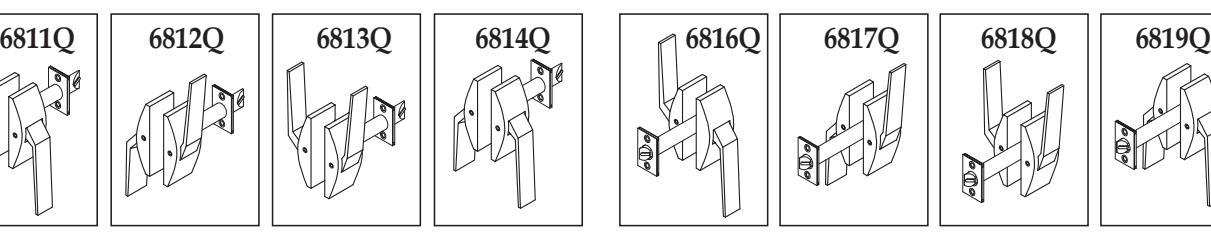

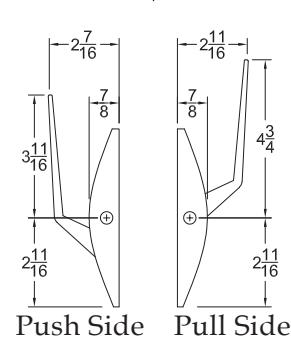

Cylindrical latch application passage function

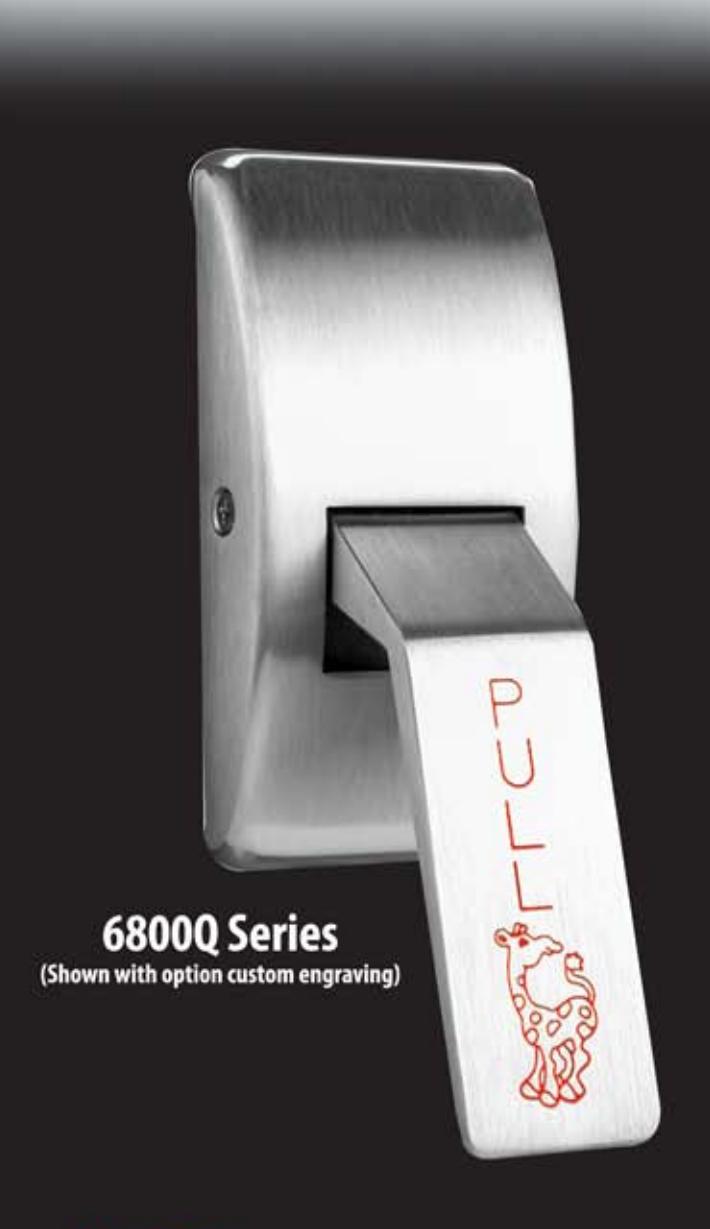

1-¾" standard door thickness (specify if different)
Meets ADA requirements
Trim is mounted using four thru-bolts for maximum stability
Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
Linear acting cam which provides for a smoother operating unit
UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
Custom engraving available
Patent #7,258,374 & additional Patent Pending
