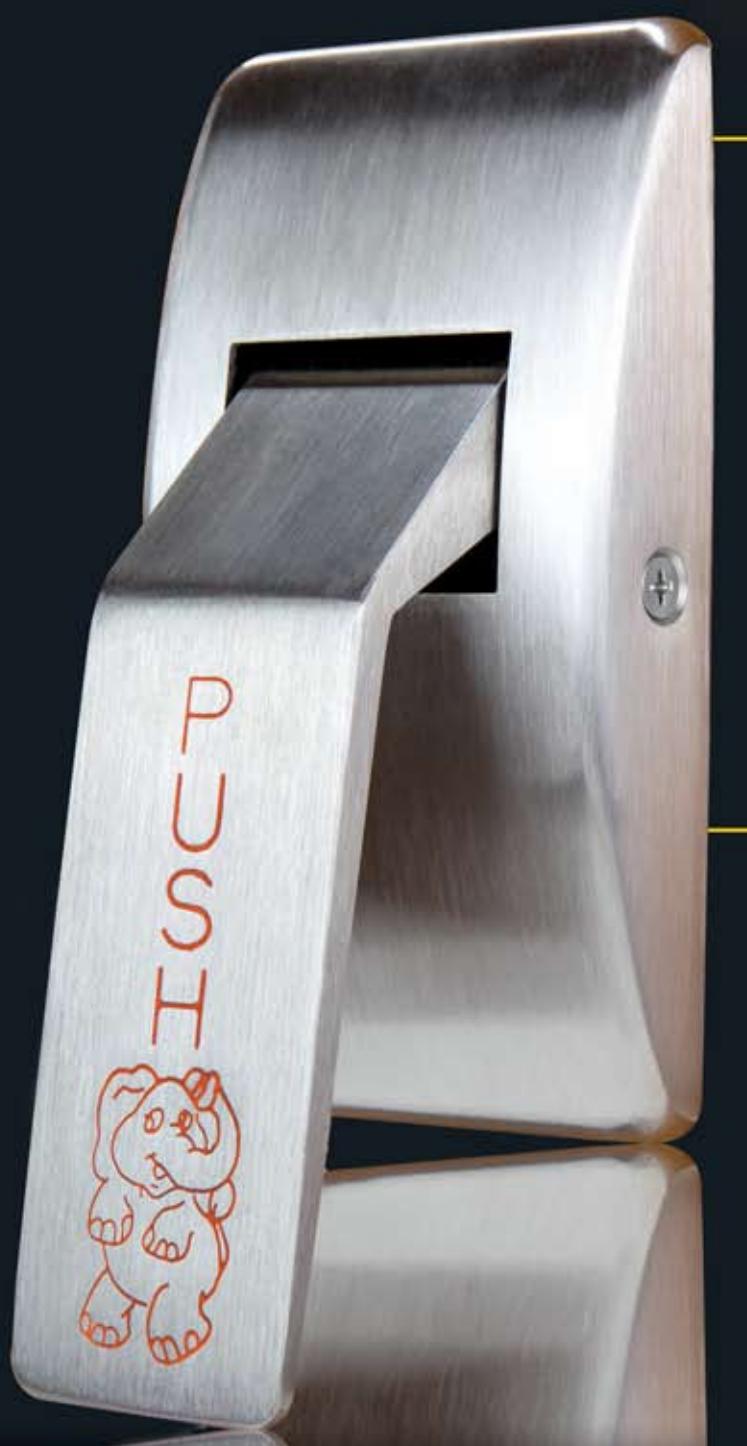

The NEW 6800Q Quiet Glide from ABH®......

A quiet environment creates a healing environment

• Zero Decibels gained during Push and Pull action
• Less than 5 lbs. to activate latch Meets ADA Requirements
• Field Reversible Handing
• All BHMA Finishes Available
• Custom Engraving Available
• Patented Linear Acting Cam for smooth operation
• One Continuous Heavy Duty Spring
• UL Listed in U.S.A. and Canada
• Patent# 7,285,374 Patent(s) pending

Independent Testing of Hospital Latch Units when latch is Pushed or Pulled to retract the latch

ABH®	6800Q	0 Decibels Gained
GJ*	HL6	34.7 Decibels Gained
Trimco*	1562	32.8 Decibels Gained
Sargent*	114/115	31.2 Decibels Gained

A:H°

Innovation, Quality, Customer Service

Tel (630) 875-9900 · www.abhmfg.com · abhinfo@abhmfg.com

Brand names are trademarks or registered trademarks of their respective companies.

The information contained on this sheet is but informational purposes only and may not apply to your situation. Reither the publisher nor author shall be liable for any loss of profit or any commercial damages resulting from use of this Cutsheet.

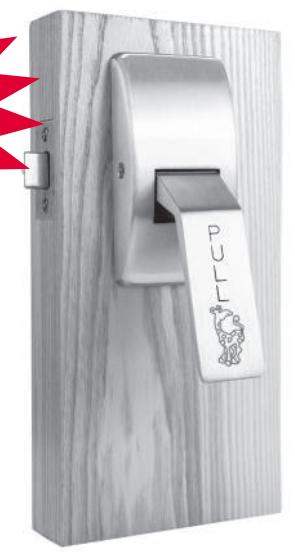

Hospital Push/Pull Latches

6800 Series - Low Profile Cylindrical Latches

Innovation, Quality, Customer Service...

Standard Features

• Cylindrical latch application passage function
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements
• Trim mounts with four thru-bolts for maximum stability
• Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
• Linear acting cam which provides for a smoother operating unit
• One continuous spring provides a smoother operation and an extended life for the unit
• UL Listed in U.S.A and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• Patent #7,258,374

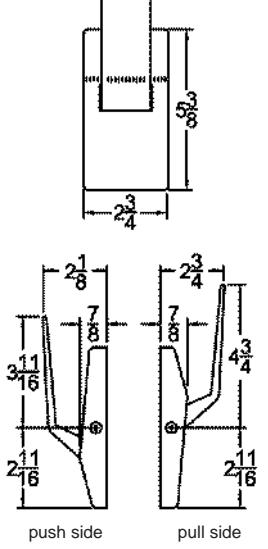

Models

Push Down

Push Up

Pull Up

Optional "Q' Quiet Latch available

Zero decibels gained

when operating the handles.

Patent(s) pending.

Pull Down Left Hand

Push Down Right Hand

Push Up Pull Down Right Hand

Right Hand

Push Down Pull Down Right Hand

How to Order:

Example: 6811 - 2 A - US32D - AM Model: -• 6811 • 6812 • 6813 • 6814 • 6816 • 6817 • 6818 • 6819 Latch Backset: -• 2 = 2-3/4" • 5 = 5" • 3 = 3-3/4" • 7 = 7" Strike: -• T = $2-\backslash frac\{3\}\{4\}$ " T-Strike • A = $4-\backslash frac\{7\}\{8\}$ " ASA Strike Finish: – • US32D • US32 • US10B • US3 • US26D • US26 • US10 • US4 Options, if Needed: (See page C-3 to C-5 for details) • H • AM • L • PL • PS • EX • X • RC • SEC • THICK • P • Q
