6700 Series Trim Only for use with other Manufacturers’ Mortise Lock Body – Cut Sheet

Open the original PDF document

View PDF

Hospital Push/Pull Latches

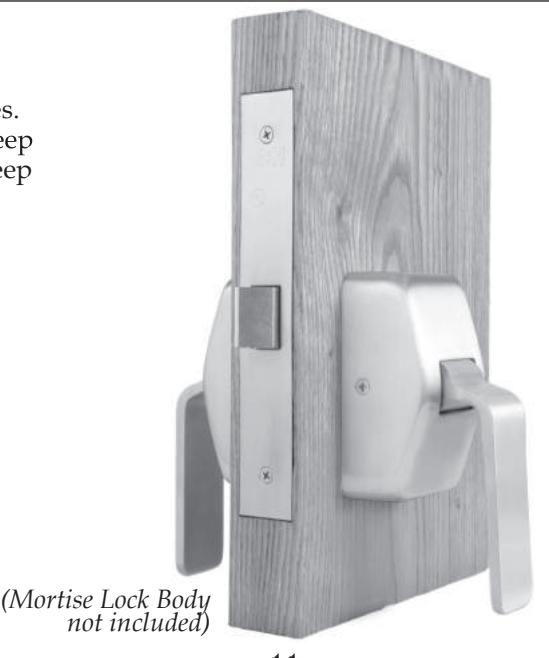

6700 Series Trim Only for use with Other Manufacturers' Mortise Lock Body

Standard Features

  • ABH custom manufactures the hospital push/pull trim to work with other manufacturers' mortise lock bodies.
  • existing lock bodies and keep keying system in-tact and keep costs low.
  • Models and manufacturers are as follows:
    • 6710 Trim for Best*, Falcon*, Marks*, Dorma* mortise lock body
    • 6720 Trim for Schlage* mortise lock body
    • 6730 Trim for Yale* mortise lock body
    • 6740 Trim for Corbin Russwin* mortise lock body
    • 6750 Trim for Sargent* mortise lock body
    • 6760 Trim for PDQ* mortise lock body
    • 6770 Trim for Arrow* mortise lock body
  • No mortise lock body or strike supplied
  • Must complete special order form found online www.abhmfg.com or by sending in a sample mortise lock body being used prior to manufacturing
  • 1-¾" standard door thickness minimum (specify if other than 1-¾")
  • Meets ADA requirements
  • All mounting hardware goes through existing mortise lock body prep – no additional prep required
  • One continuous spring provides a smoother operation and an extended life for the unit
  • Push/pull trim is non-handed
  • Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
    • For mortise lock functions where thumb turn will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
  • Handles can be mounted up or down by simply rotating trim 180º
  • or less, up to 4'0" x 8'0"
  • Patent# 5,730,478 & #6,196,599

ABH HIGHLY RECOMMENDS THE USE OF A KNOB VERSION LOCK BODY VS. A LEVER VERSION LOCK BODY

How to Order:

Example: 6710 US32D – AM Model: • 6710 • 6720 • 6730 • 6740 • 6750 • 6770 Finish: • US32D • US32 • US10B • US3 • US26D • US26 • US10 • US4 Options, if Needed: • H • AM • PL • PS • EX • X • J • RC • SEC • THICK • AB • PSA • PLA • P (See pages C-3 to C-5 for details)

*Brand names are trademarks or registered trademarks of their respective companies.
