6700-C-AB SERIES, ASYLUM TRIM ROUND KNOB INSTALLATION FOR MORTISE LOCK

NOTES

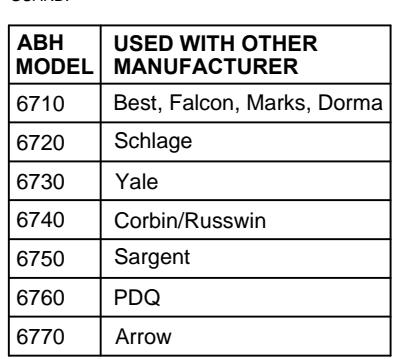

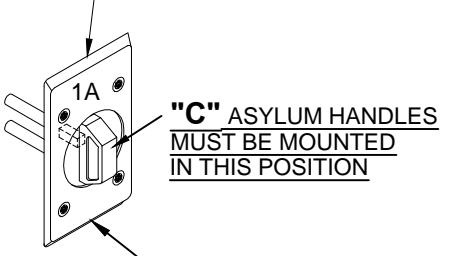

1. TRIM MUST BE MOUNTED VERTICALLY.
2. VISION LITE MUST BE AT LEAST 6" FROM CENTERLINE OF TRIM.
3. PREP DOOR PER OTHER MANUFACTURER'S MORTISE LOCK TEMPLATE.
4. MORTISE LOCK NOT PROVIDED.


ITEM	QTY	PART DESCRIPTION
1A	1	"C" ASYLUM TRIM ASSEMBLY
2A	1	"C" ASYLUM TRIM ASSEMBLY
2B	1	ADAPTER PLATE
2C	1	ASYLUM COVER
3	8	8-32 x 1/4 PIN TORX FLAT HD. M.S.
4	8	8-32 x 3/16 PHIL. FLAT HD. M.S.
5	2	10-32 x 1/2" FHMS
6	1	MORTISE LOCK BY OTHERS
7	1	TRIM PLATE
8	2	12-24 x 3/4" PH. F.H. COM. SCW.
9	2	8-32 x 1/4" FHMS

ASYLUM TRIM ASSEMBLY IS PRE ASSEMBLED AT THE FACTORY

Brand names are trademarks or registered trademarks of their respective companies

INSTALLATION INSTRUCTIONS:

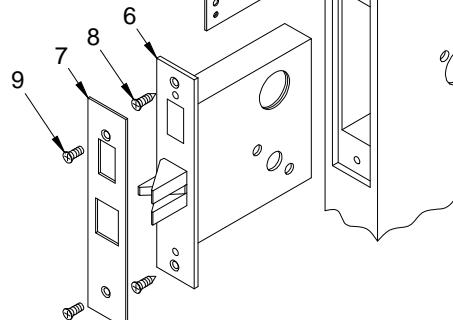

1. Prep for lock body according to mortise lock manufacturer installation. Install mortise lock (item 6) using (2) 12-24 screws (item 8). Then mount the face plate (item 7) using (2) 8-32 screws (item 9).

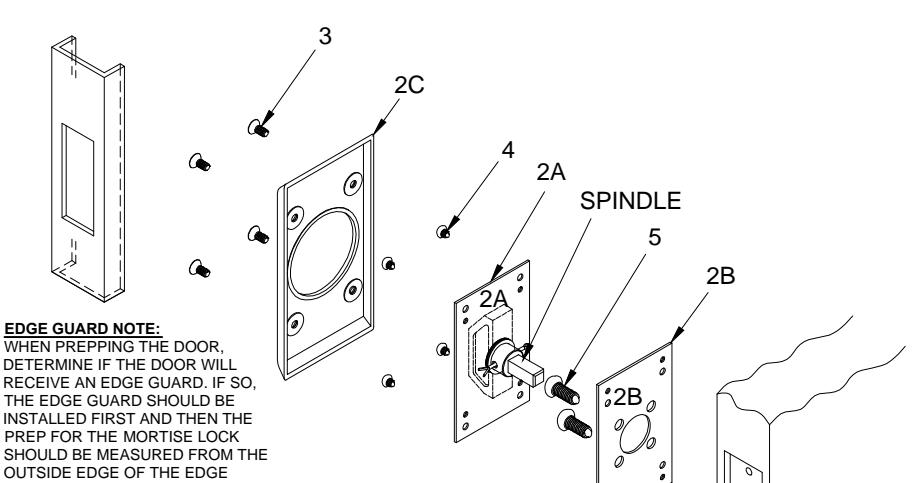

2. A) Place the pre-assembled asylum trim assembly 1A on the side of the door that will match the diagonal mortise lock mounting through holes.
- B) Place the adapter plate 2B centered with pre-assembled asylum trim assembly 1A while inserting the (2) 10-32 screws (item 5).
- C) After tightening the 10-32 screws (item 5) test lock and asylum trim assembly 1A for proper latch retraction and knob operation. If the latch does not extend / retract or if trim knob is binding, loosen 10-32 screws (item 5) and adjust alignment for proper operation
- D) Place the asylum trim assembly 2A on the door so that spindle engages with the mortise lock and fasten with (4) 8-32 screws (item 4). Test the knob for latch retraction. If latch does not extend loosen both 10-32 screws (item 5) to readjust alignment and re-tighten.
- E) Place the asylum cover (item 2C) on the asylum trim assembly and screw together with (4) 8-32 screws (item 3).

PATENT No. 6,196,599 & 5,730,478

R www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

6700-C-AB PAGE 1 OF 1 ISSUED 02-03-17
