6600 Series Push Pull Latch Trim with Mortise Lock – Cut Sheet

Hospital Push/Pull Latches

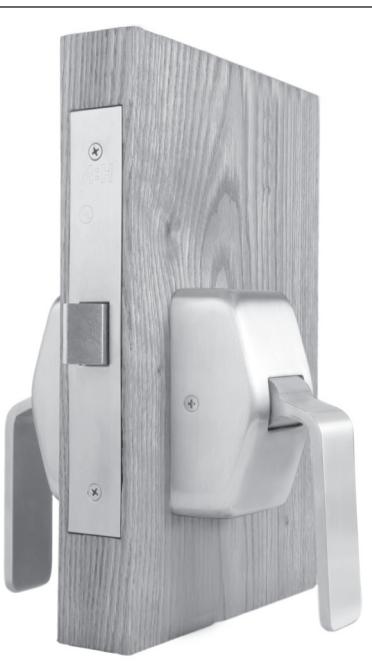

6600 Series Trim with Mortise Lock Body

Standard Features

• Mortise lock body provided specify function (see page C-16 to C-17 for details)
• Mortise lock body only available in 2-¾" backset
• 4-⅞" ASA strike supplied standard
• ¾" latch bolt throw
• Mortise lock cylinder and cam not provided
• Uses clover leaf-type cam Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
• 6 Pin Cylinder = 1-⅛" long
• 7 Pin Cylinder = 1-¼" long
• 1-¾" standard door thickness minimum (specify if greater than 1-¾")
• Meets ADA requirements
• All mounting hardware goes through mortise lock body prep – no additional prep required
• One continuous spring provides a smoother operation and an extended life for the unit
• Trim is non-handed; however, the mortise lock body
• Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
• For mortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
• Handles can be mounted up or down by simply rotating trim 180º
• 90 minutes or less, up to 4'0" x 8'0"
• Patent# 5,730,478 & #6,196,599

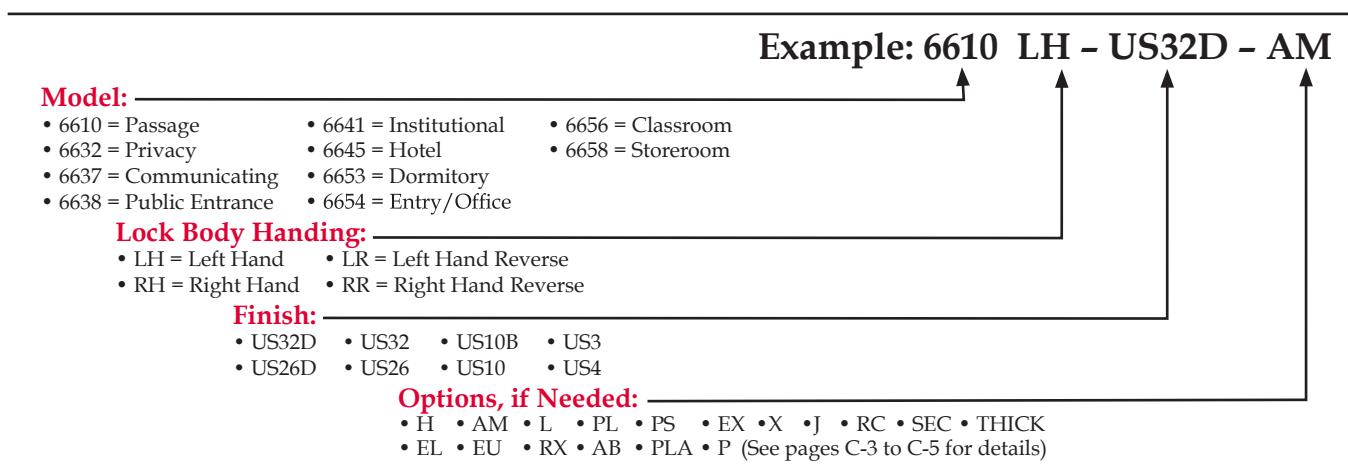

How to Order:

*Brand names are trademarks or registered trademarks of their respective companies.
