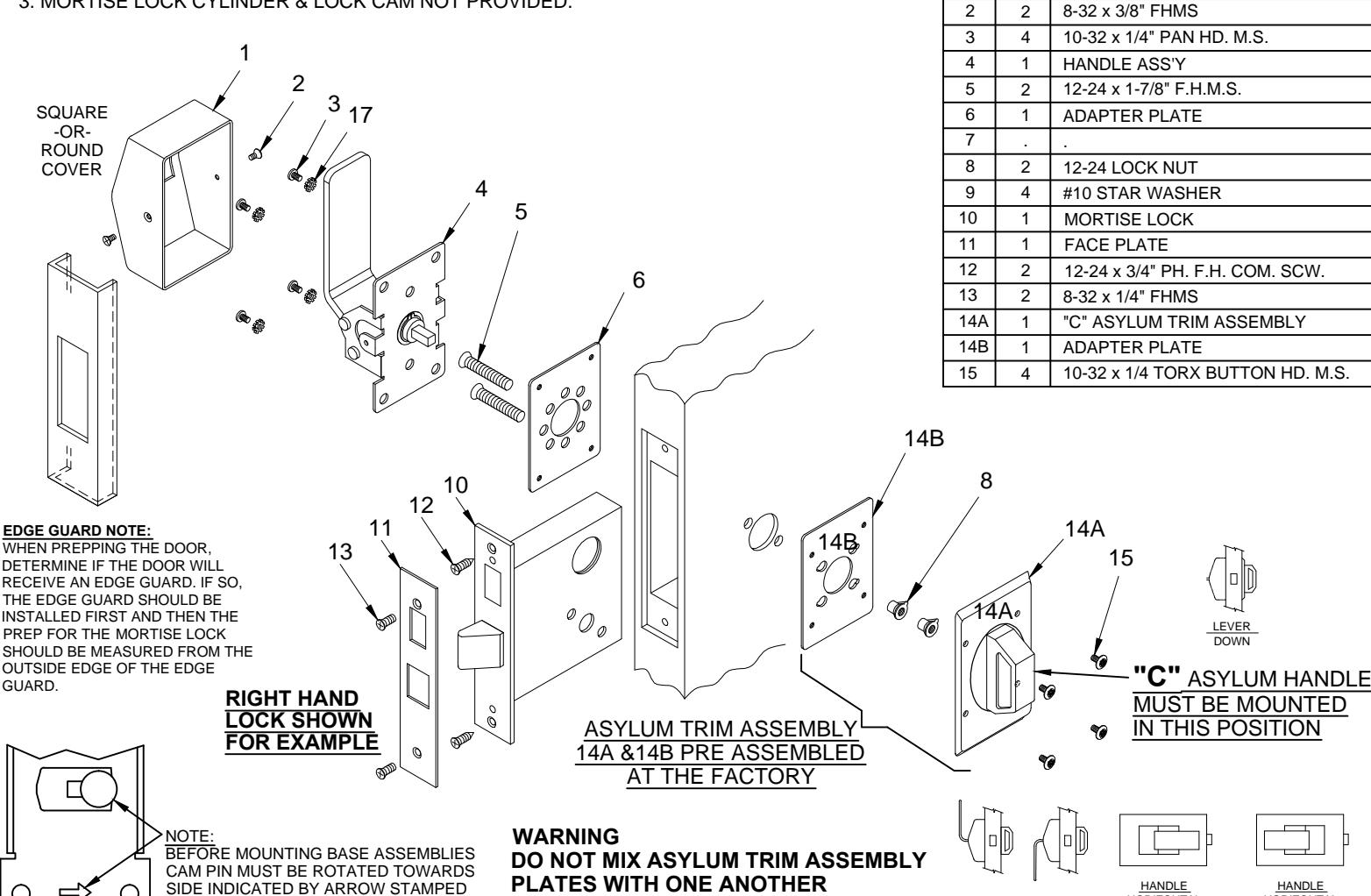

6600 "C" SERIES, ASYLUM TRIM ANGLE KNOB INSTALLATION FOR MORTISE LOCK

ITEM

QTY

COVER

PART DESCRIPTION

NOTES

  • 1. TRIM CAN BE MOUNTED UP, DOWN, HORIZONTALLY. **
  • 2. USES A6600 SERIES MORTISE LOCK DOOR PREP.
  • 3. MORTISE LOCK CYLINDER & LOCK CAM NOT PROVIDED.

INSTALLATION INSTRUCTIONS:

ON THE BASE.

  • 1. Prep for lock body according to mortise lock manufacturer installation. Install mortise lock (item 10) using (2) 12-24 combination screws (item 12). Then mount the face plate (item 11) using (2) 8-32 screws (item 13).
  • 2. A) Place the pre-assembled asylum trim assembly 14A & 14B on the appropriate side of door.
    • B) Then place adapter plate (item 6) on outside of door and attach with (2) 12-24 screws (item 5). Do not over tighten.
  • Assemble trim:
  • A) With trim in hand. Rotate the cam assembly untill the cam pin stops on the appropriate side (see Detail "A").
  • B) Place handle on the door so that spindle engages with the mortise lock and fasten with (4) pan head screws (item 3) with (4) star washer (item 9). Test handle ass'y (item 4) for latch retraction. If latch does not extend. Loosen both 12-24 screws (item 5) to adjust alignment.
  • C) Test lock for proper operation.
  • D) Place cover (item 1) over the trim and secure with (2) 8-32 screws (item 2) on each side.

PATENT No. 6,196,599 & 5,730,478

www.abhmfg.com washinfa@a

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2017 ABH Mfg., Inc.

printed in USA

6600-C-1-00.DWC

6600-C PAGE 1 OF 3

ISSUED 02-03-17

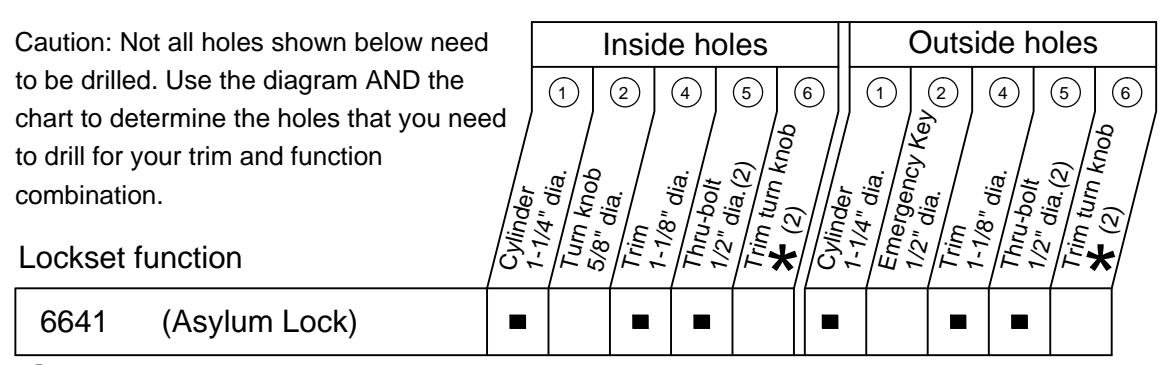

6600-C SERIES, HOLE PATTERN CHART

★ Determine trim holes based on trim type.

ADA recommends mounting centerline of lock 44" from top of finished floor.

-OR- Check local ordinance for proper height.

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143

630.875.9900; FAX 800.9FAXABH (932.9224)

6600-C PAGE 2 OF 3 © 2017 ABH Mfg., Inc. printed in USA ISSUED 02-03-17

6600-C-2-00.DWG

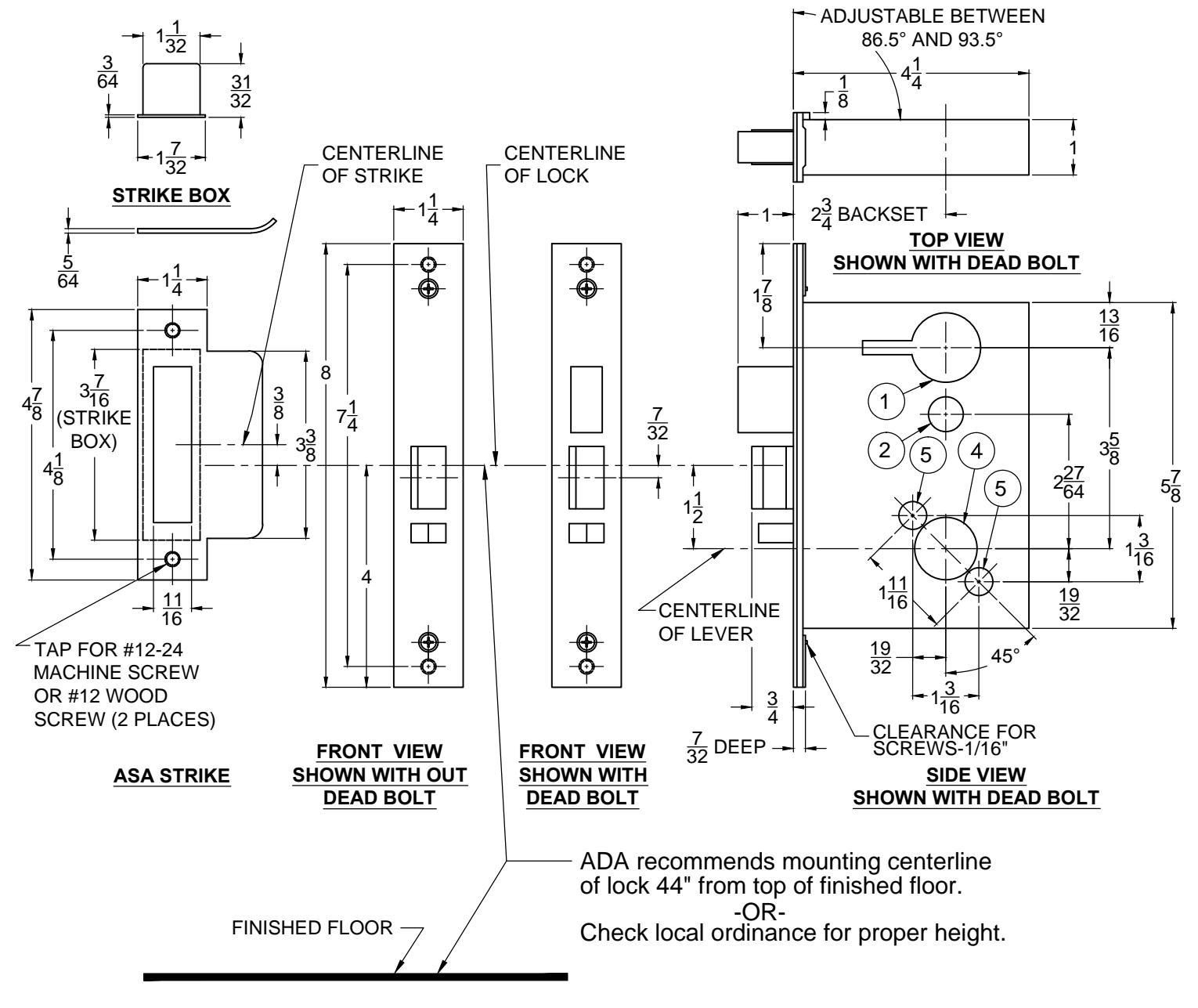

6600-C SERIES, DOOR & FRAME PREP

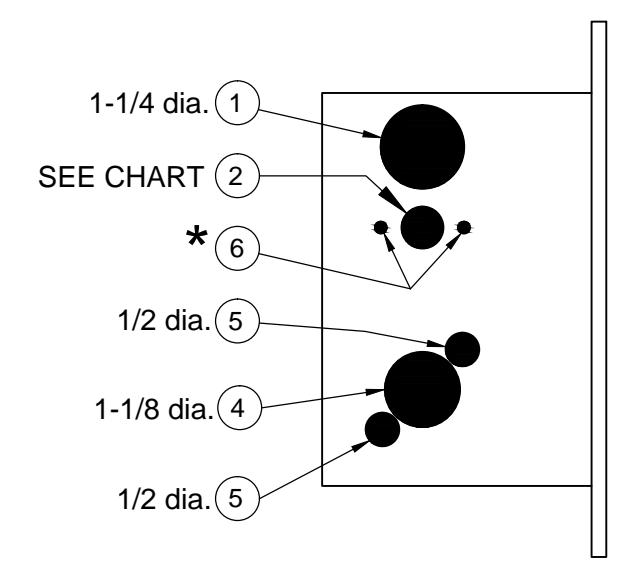

Lock case holes:

  • (1) Cylinder hole-1-1/4" dia.
  • 2 Turn knob-5/8" dia. / Emergency key-1/2" dia.
  • (4) Trim hole-1-1/8" dia.
  • (5) Thru-bolt holes-(two required) 1/2" dia.

Notes

  • 1, Before drilling check the hole pattern chart.
  • 2, The maximum door-to-frame gap is 3/16".
  • 3, Allow 3/64" clearance for the strike box thickness.
  • 4, For metal door, lock case support is required from the door manufacturer.
  • 5, Tap for a #12-24 machine screw or drill for a #12 wood screw (a combination screw is supplied).
