6500 Series High Visibility Pushplates

Access/Egress Controls

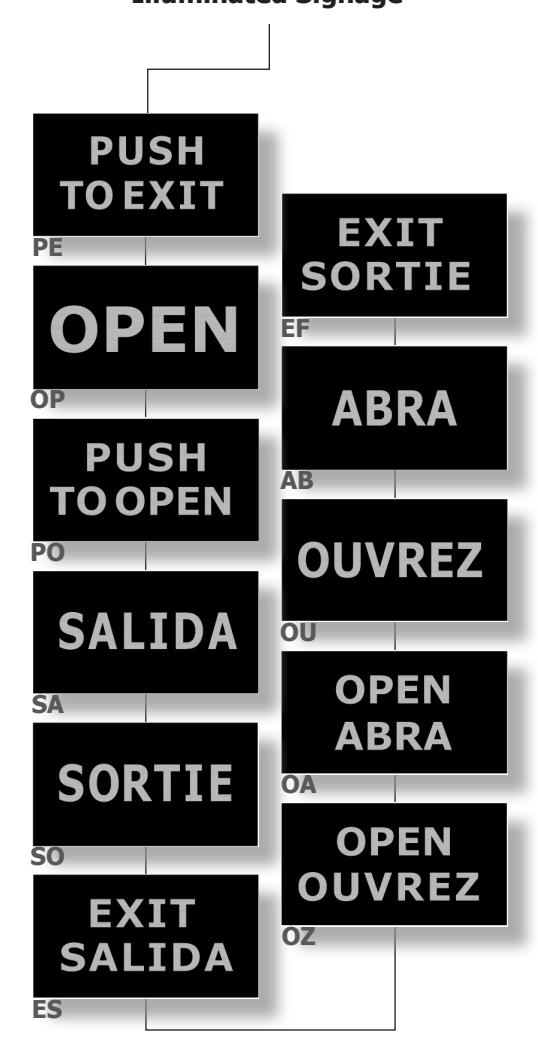

EX Illuminated Signage

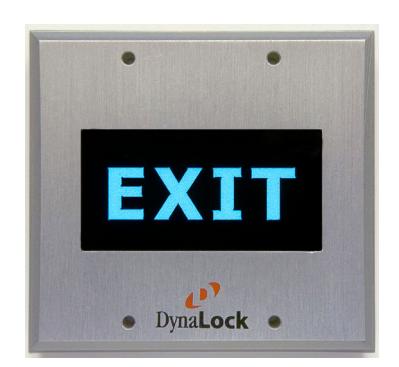

6500 Series High Visibility Pushplates

6500 Series Pushplates are double-gang, heavy duty egress controls machined from solid aluminum featuring electroluminescent illuminated signage. Multiple switching configurations and finishes are available. All models are low profile (13/16" projection from wall) and tamper resistant. Consult factory for custom signage.

Standard finish - Satin Aluminum US28.

Operating Voltage: 12VDC or 24VDC, Configurable

Current Draw: 40 mA Max.

PTD Contact Rating: 10 A @ 125VAC / All Others: 6 A @ 125VAC

Weight: 1.5 Lbs.

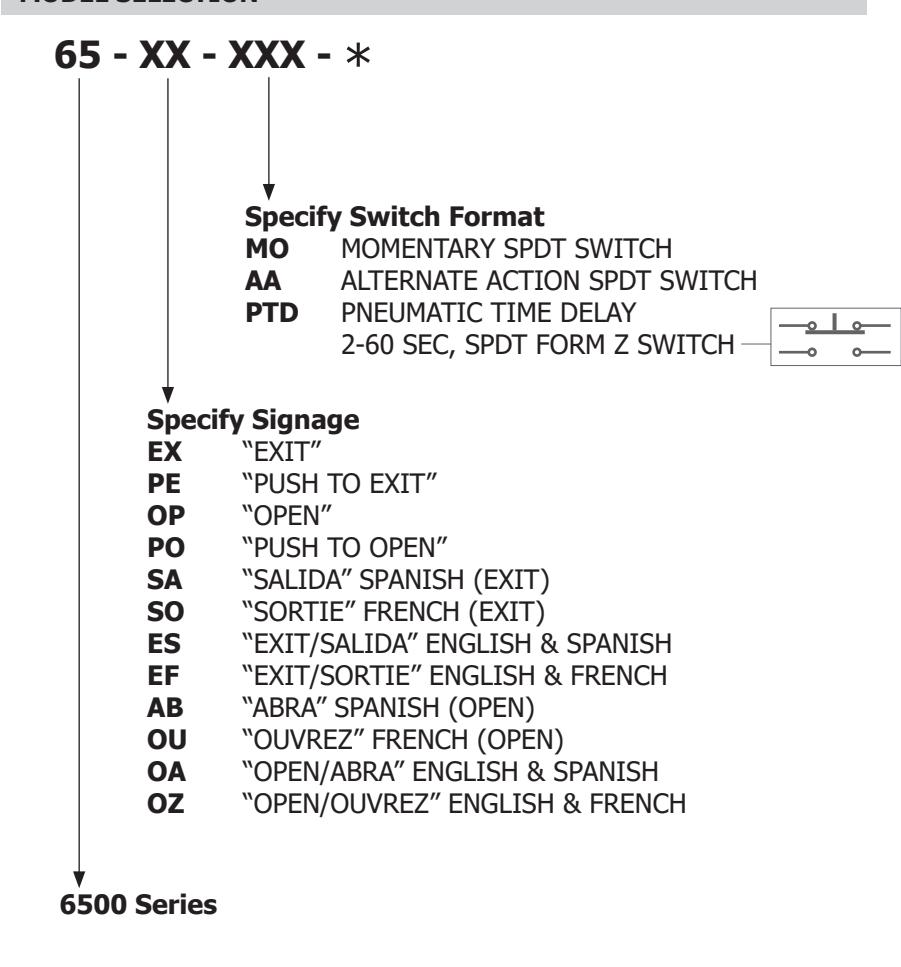

MODEL SELECTION

OPTIONS *

DPDT Switch. Not available with PTD option. Special Finishes - US28 standard. US3, US4, US10, US13, US10B, US19, US26 available. Custom Signage - Please consult factory. DP SF CS

Lamp illuminates indefinitely. Optimal brightness up to 10,000 hours (continuous usage). Field replacements are available, consult factory.
