649 Strike for Double Door, Mullion Applications
Open the original PDF document
View PDF

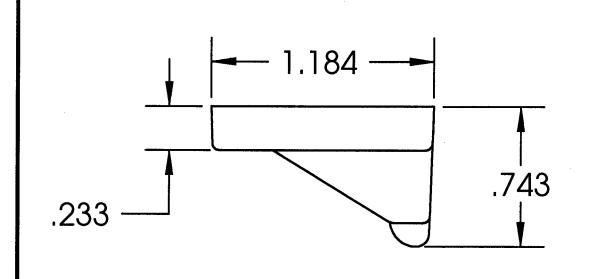

.280
| ALUMINUM MULLION | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| REQUIRED BACKSET | MINUMUM DOOR STILE FOR VARIOUS TRIMS | |||||||||
| EX | XIT DEVICE |
BACKSET
"A" |
ET/STS | PTB/PSB |
FLW/FSW
MAL/MSL |
|||||
| 1 5 |
2800, 3800
5100, 5800 3800, 9800 P800 |
2 7/8 | 4 1/8 | 4 5/8 | 4 3/16 | |||||
| 1 | 5500, 8500 | 2 1/8 | 3 3/8 | 3 7/8 | 3 7/16 | |||||

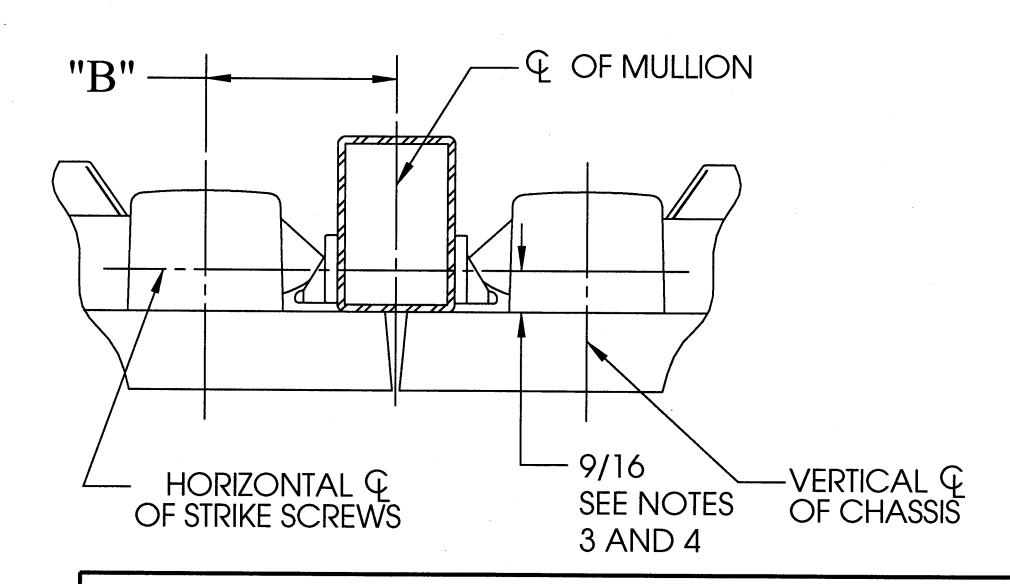

980, L980, 980A, L980A G OF MULLION "A" HORIZONTAL Q OF STRIKE SCREWS-9/16 --VERTICAL Q OF CHASSIS SEE NOTES
ALUMINUM MULLION APPLICATIONS
STEEL MULLION APPLICATIONS
3 AND 4
12-980, 12-L980, EL-980, HC-980, HC-L980 12-HC-980, 980S, L980S, 12-HD-980, 12-HC-L980
| STEEL MULLION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| REQUIRED BACKSET | MINUMUM DOOR STILE FOR VARIOUS TRIMS | ||||||||
| EXIT DEVICE |
BACKSET
"B" |
ET/STS | PTB/PSB |
FLW/FSW
MAL/MSL |
|||||
|
2800, 3800
5100, 5800 8800, 9800 P800 |
3 1/4 | 4 1/2 | 5 | 49/16 | |||||
| 6500, 8500 | 2 1/2 | 3 3/4 | 4 1/4 | 3 13/16 | |||||

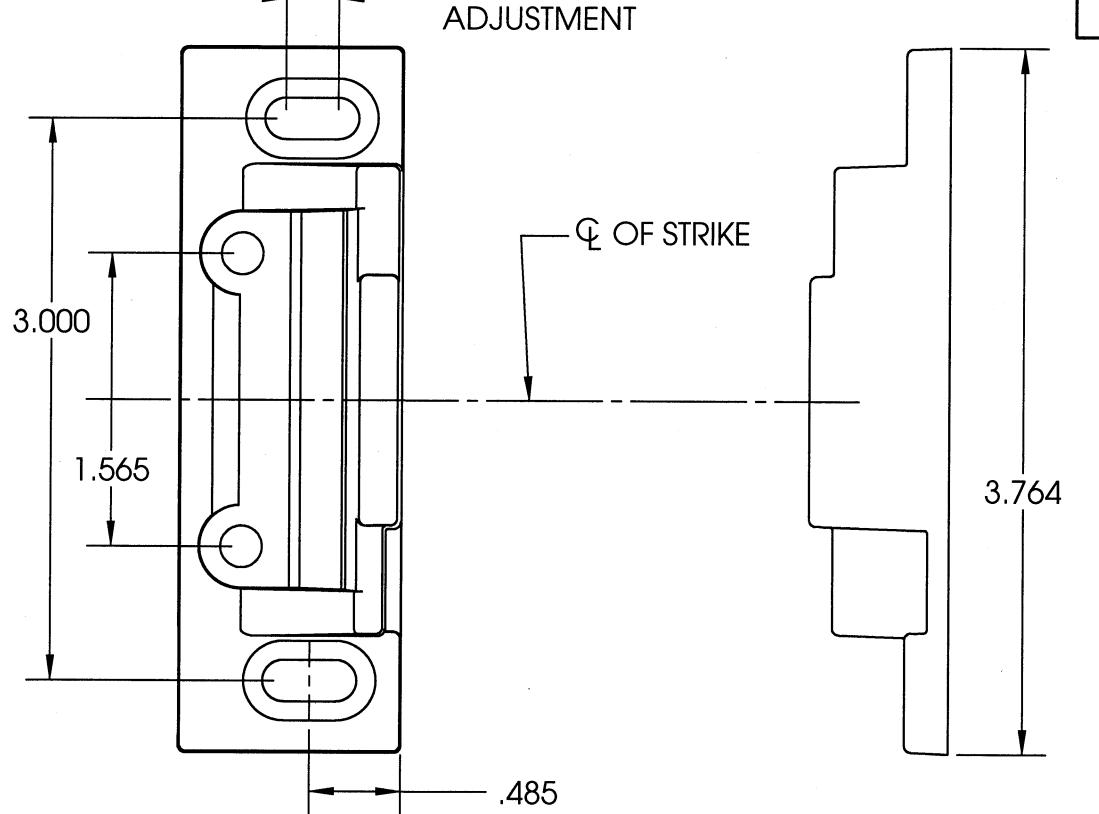

- TOLERANCES: FRACTIONAL ", DECIMAL . SEE APPROPRIATE DOOR MANUFACTURERS TEMPLATE TO MOUNT EXIT DEVICE. IF DOOR SILENCERS ARE USED ON THE FRAME, DECREASE THIS DIMENSION BY SILENCER HEIGHT. IF "GLASS BEAD" SHIMS ARE USED, INCREASE THIS DIMENSION BY SHIM HEIGHT (1/8" PER SHIM USED). AFTER STRIKE IS INSTALLED AND ADJUSTED, TWO CENTER HOLES ARE TO BE DRILLED AND TAPPED FOR # 10-24 ROUND HEAD MACHINE SCREWS.
SARGENT'
Manufacturing Company 100 Sargent Drive New Haven, CT 06511
DOOR MANUFACTURERS TEMPLATE: 649 STRIKE DOUBLE DOOR/MULLION APPLICATIONS
RELEASE DATE TEMPLATE NO.
4300 E
