6420 Series PIR REX Sensor, NTB Series No-Touch Buttons

Open the original PDF document

Passive Infrared Request-To-Exit Sensor

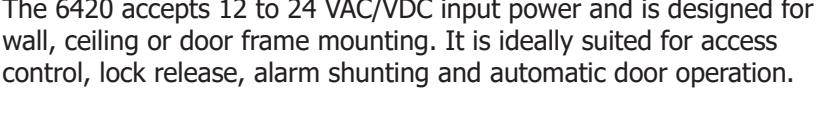

The DynaLock Series 6420 passive infrared Request-To-Exit sensor detects the differential between a human body and the floor. Featuring a dual-pyroelectric design, for increased stabilty against external light, the 6420's pyramid-shaped detection filed is positionable from straightdown verticle to 35° in front of the door and special circuitry provodes high-immunity to RFI and other electrical noise. Two, built-in SPDT dry relay output contacts are rated for 1 Amp @ 30VDC and an adjustable timer may be set for 0.25 to 60 seconds of relay hold time. Additionally, the output relay's mode may be set for fail-safe or fail-secure operation and an on-board LED indicator may be set to illuminate during relay hold time.

MODEL	PRODUCT	WEIGHT
6420	Passive Infrared Request-To-Exit Sensor	.5 Lbs.

NTB Series No-Touch Buttons

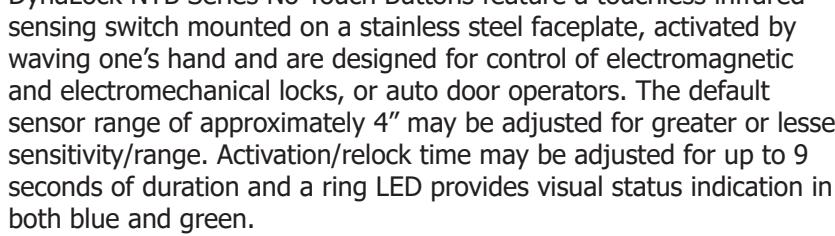

DynaLock NTB Series No-Touch Buttons feature a touchless infrared sensor range of approximately 4" may be adjusted for greater or lesser seconds of duration and a ring LED provides visual status indication in

All NTB Series models operate on 12 or 24VDC continuous input power and include 7" color-coded wire lead terminations.

NTB1

NTB2

MODEL	PRODUCT	WEIGHT
NTB1	1-Gang, Plain Faceplate	.5 Lbs.
NTB1E	1-Gang, Faceplate Silkscreened "EXIT"	.5 Lbs.
NTB2	2-Gang, Plain Faceplate	.5 Lbs.
NTB2E	2-Gang, Faceplate Silkscreened "EXIT"	.5 Lbs.

NTB1E NTB2E
