6400 & 6500 Series Cylindrical Push Pull Latch, Privacy – Cut Sheet

Hospital Push/Pull Latches

6400 & 6500 – Privacy Cylindrical Latches

Standard Features

• Designed for patient bathroom applications with the privacy-actuated thumb turn on one side and the override knob on the opposite side in case of emergency
• 6400 Series Locking thumb turn on pull side Override knob on push side
• 6500 Series Locking thumb turn on push side Override knob on pull side
• Cylindrical latch application privacy function
• Door is locked by moving the thumb turn into the locked position
• Door is unlocked by operating handle on thumb turn side, moving thumb turn into the unlocked position or rotating the override knob in case of emergency
• 1-¾" standard door thickness
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• One continuous spring provides a smoother operation and extended life for the unit
• Non-handed for installation and stocking ease
• UL Listed in U.S.A and Canada for use on door
• 1/2" Latch Bolt Throw
• Patent# 6,293,598 & #6,196,599

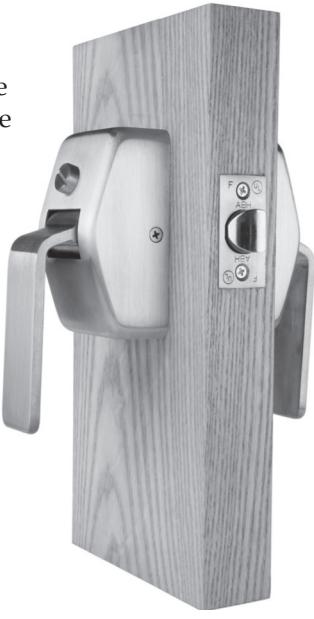

Override Knob

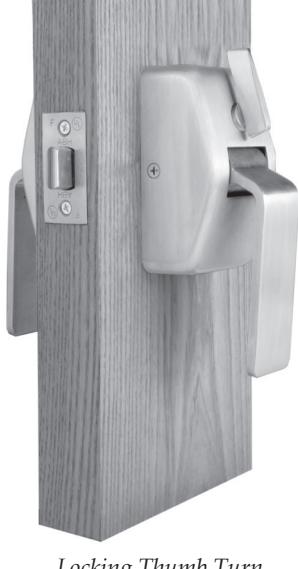

Locking Thumb Turn

How to Order:

Example: 64 2 A – US32D – AM Model: • 64 = 6400 Series • 65 = 6500 Series Latch Backset: • 2 = 2-¾" • 5 = 5" • 3 = 3-¾" • 7 = 7" Strike: • T = 2-¾" T-Strike • A = 4-⅞" ASA Strike Finish: •US32D • US32 • US10B • US3 • US26D • US26 • US10 • US4 Options, if Needed: • H • AM • L • EX • X • SEC • THICK •P (See pages C-3 to C-5 for details)
