639-640 Strike Instruction Sheet

639/640 Strike Installation Instructions for Concealed Vertical Rod Exit Device with AD- Option

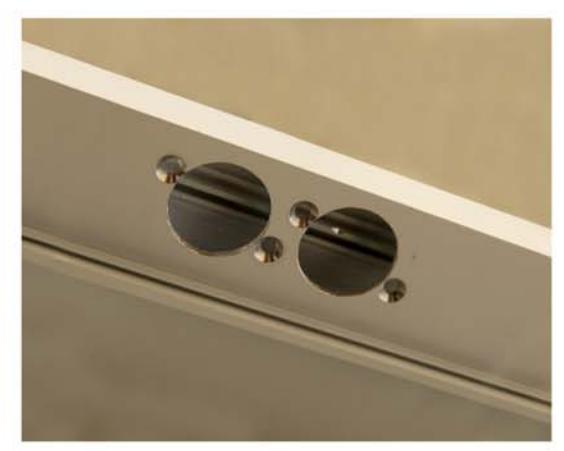

1) Prepare frame (Pair of doors shown; for detailed strike preparation refer to template # 4649)

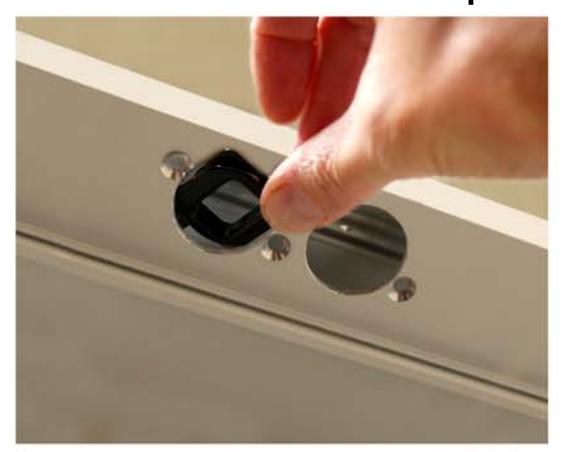

2) Slide strike into frame

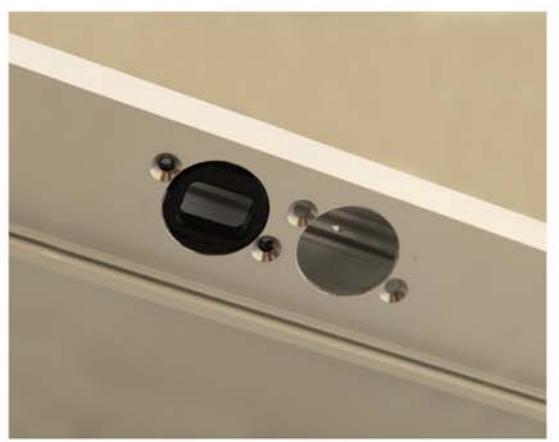

3) Position strike so screw holes are aligned

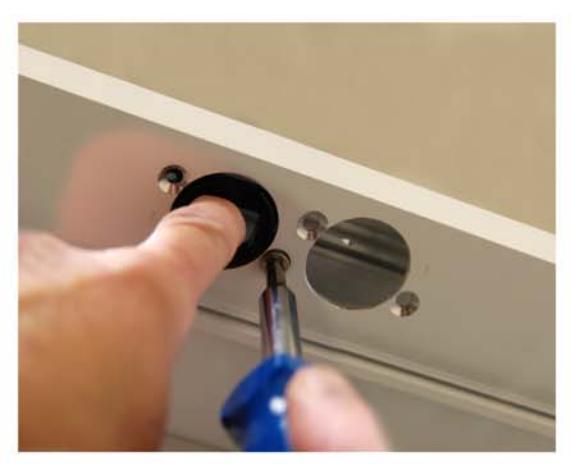

4) Hold strike & secure with screw

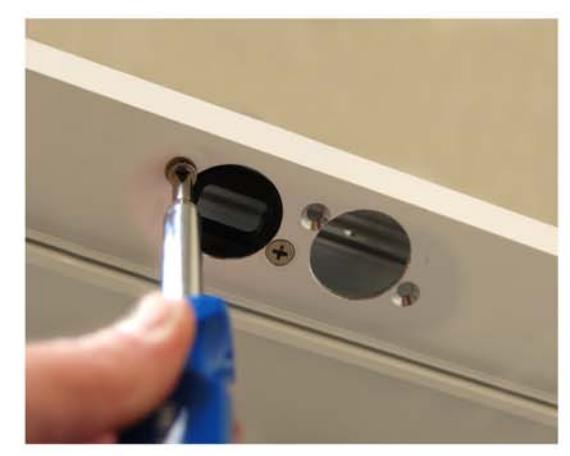

5) Secure with 2nd screw

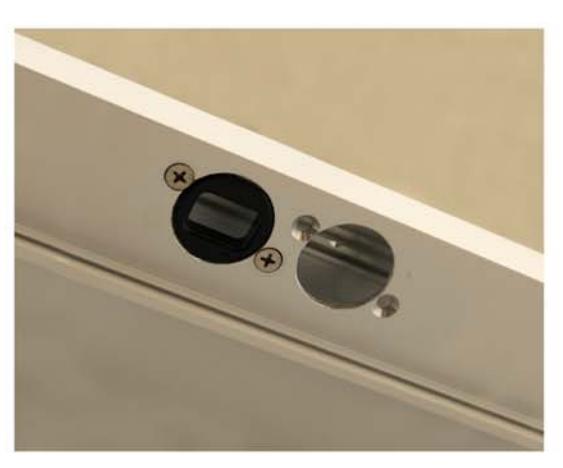

6) Repeat process for 2nd strike

Note: Perform the same steps for threshold strike(s)
