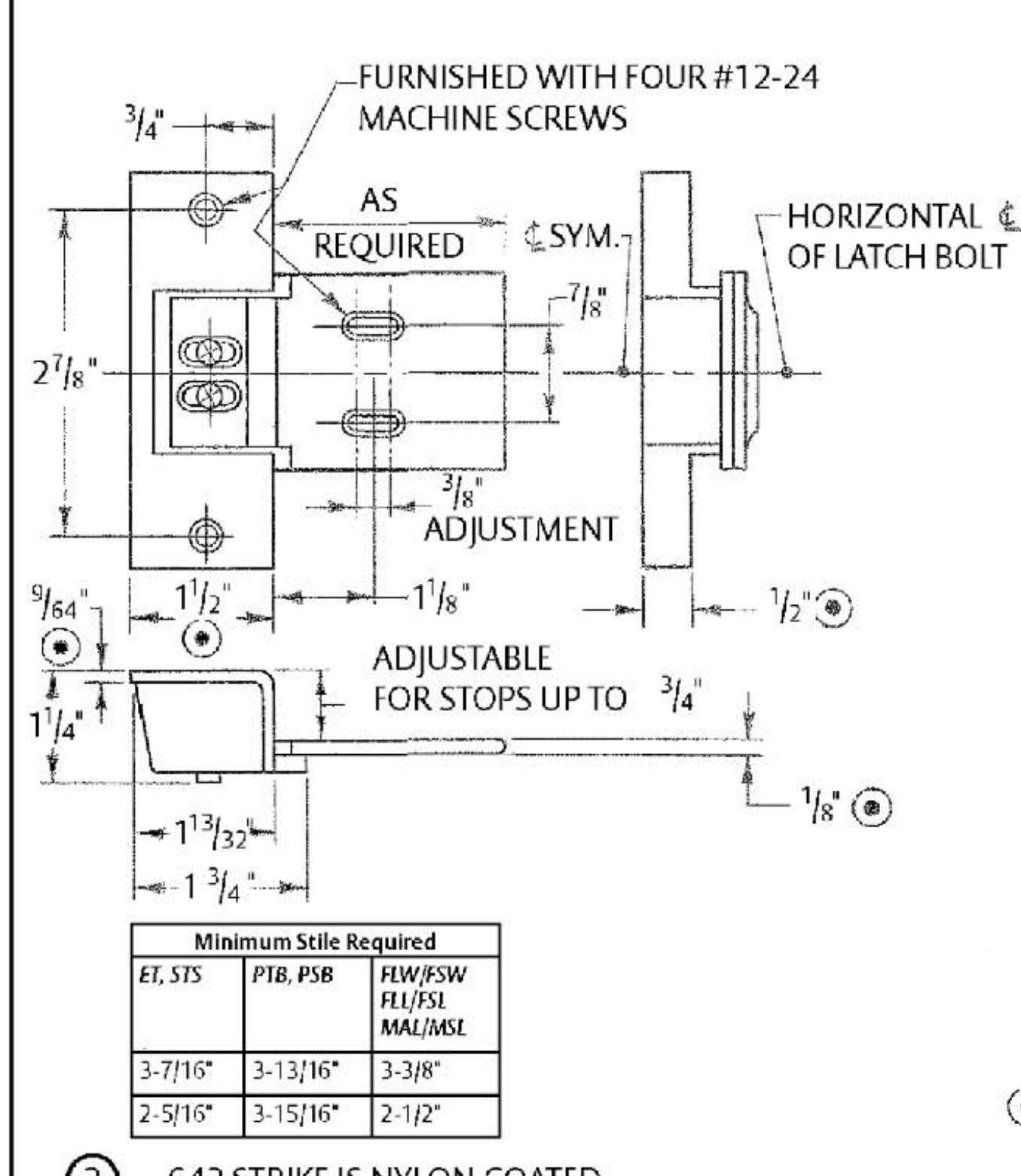

632 and 642 Strike

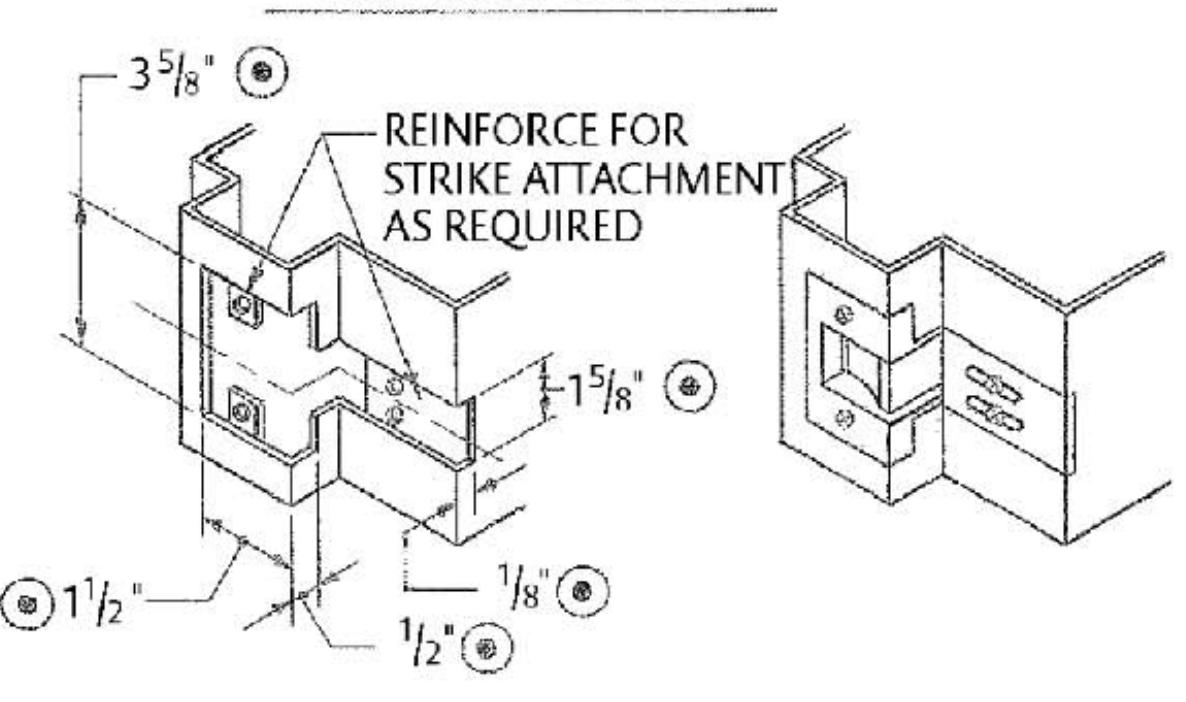

SUGGESTED CUT-OUT

• (3)— 642 STRIKE IS NYLON COATED.
• (2)— ® MAXIMUM DIMENSION OF PART

TO MOUNT EXIT DEVICE.

SARGENT ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

Copyright © 2013, 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

TEMPLATE:

632 AND 642 STRIKE

RELEASE DATE: 9/07/2016

TEMPLATE NO. 4007 E
