View PDFVD2 - 6EWS RETROFIT KIT TEMPLATE FOR REPLACING 996 ESCUTCHEON ON VD98/99 RIM EXIT
TEMPLATE: 629336 REV.0 12-09-19
Notes:
- 1. Verify template is printed to scale
- 2. Height of Escutcheon = 11-25/32" [299.2] Width of Escutcheon = 2-31/32" [75] Trim Projection = 3-1/8" [79.4]
PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com
VD2 - 6EWS RETROFIT KIT TEMPLATE FOR REPLACING 996 ESCUTCHEON ON VD98/99 RIM EXIT
TEMPLATE: 629336 12-09-19 REV.0
φ DEVICE

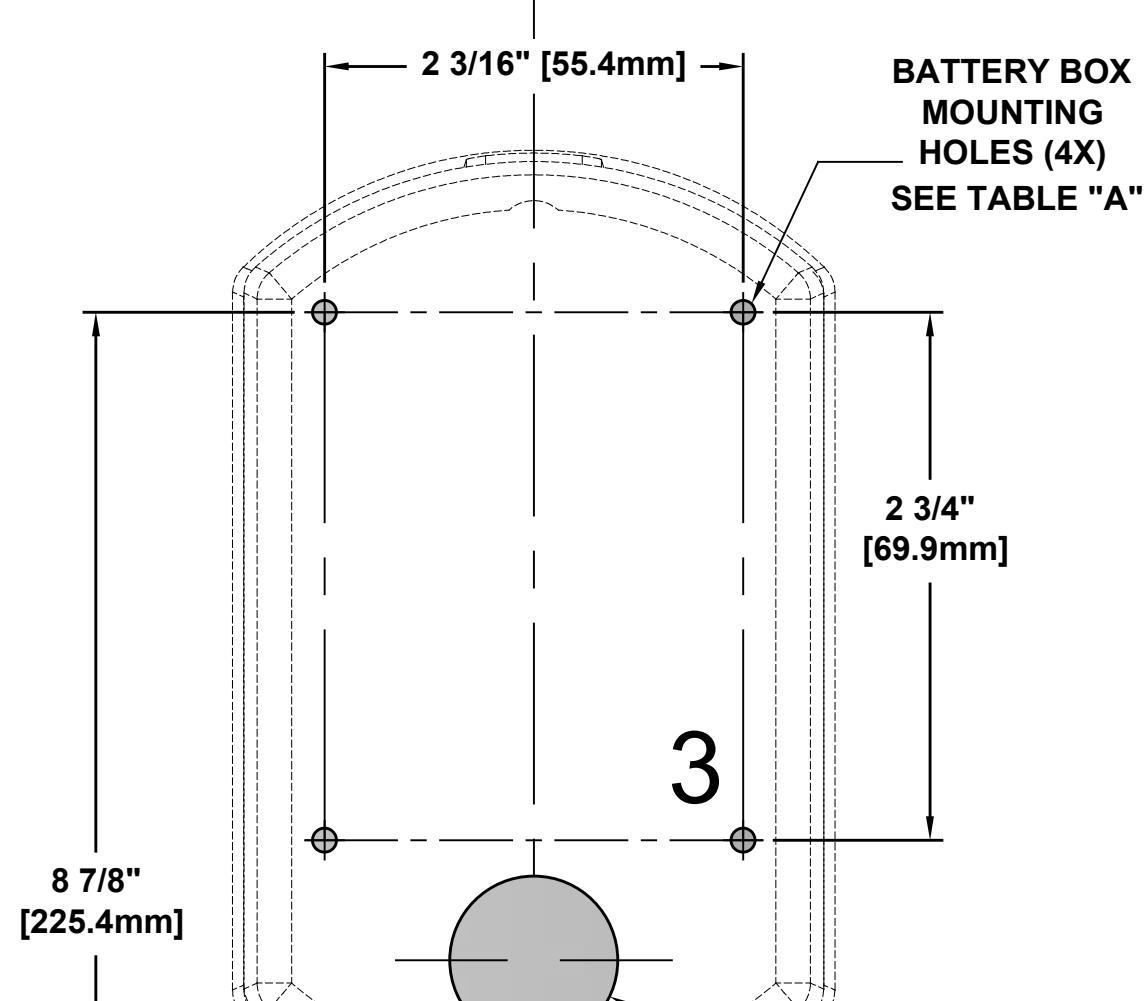

TABLE "A" METAL DOORS: USE 7/64" [2.8] PILOT DRILL WOOD DOORS: USE 1/8" [3.2] PILOT DRILL
€ DEVICE PUSH SIDE FACE OF DOOR
ENLARGE EXISTING HOLE TO Ø1" [25.4mm]

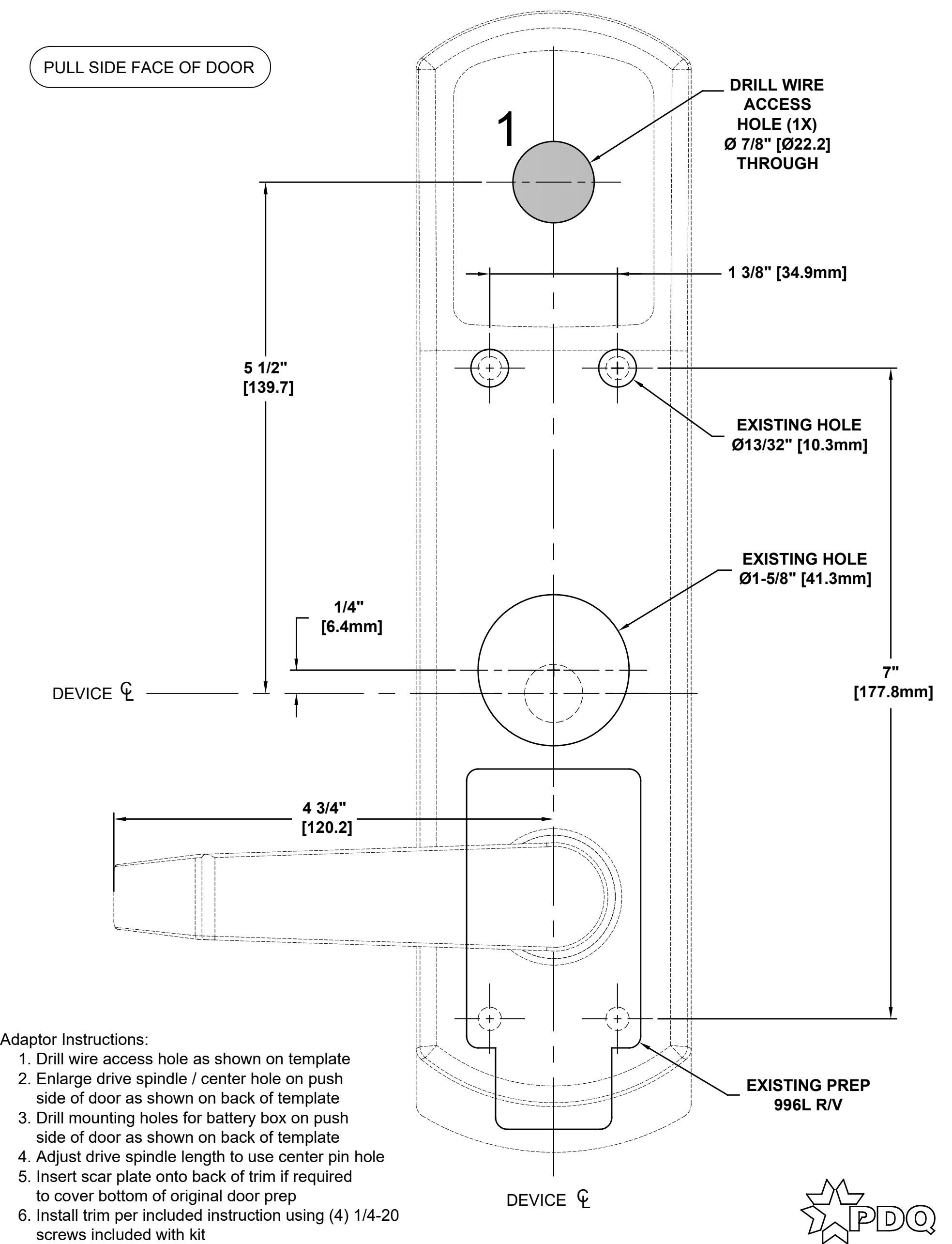

DRILL WIRE ACCESS HOLE (1X) Ø 7/8" [Ø22.2] THROUGH
EXISTING HOLE Ø1/4" [6.4mm]
