629335-R0_VD1-Retrofit-Kit-Template

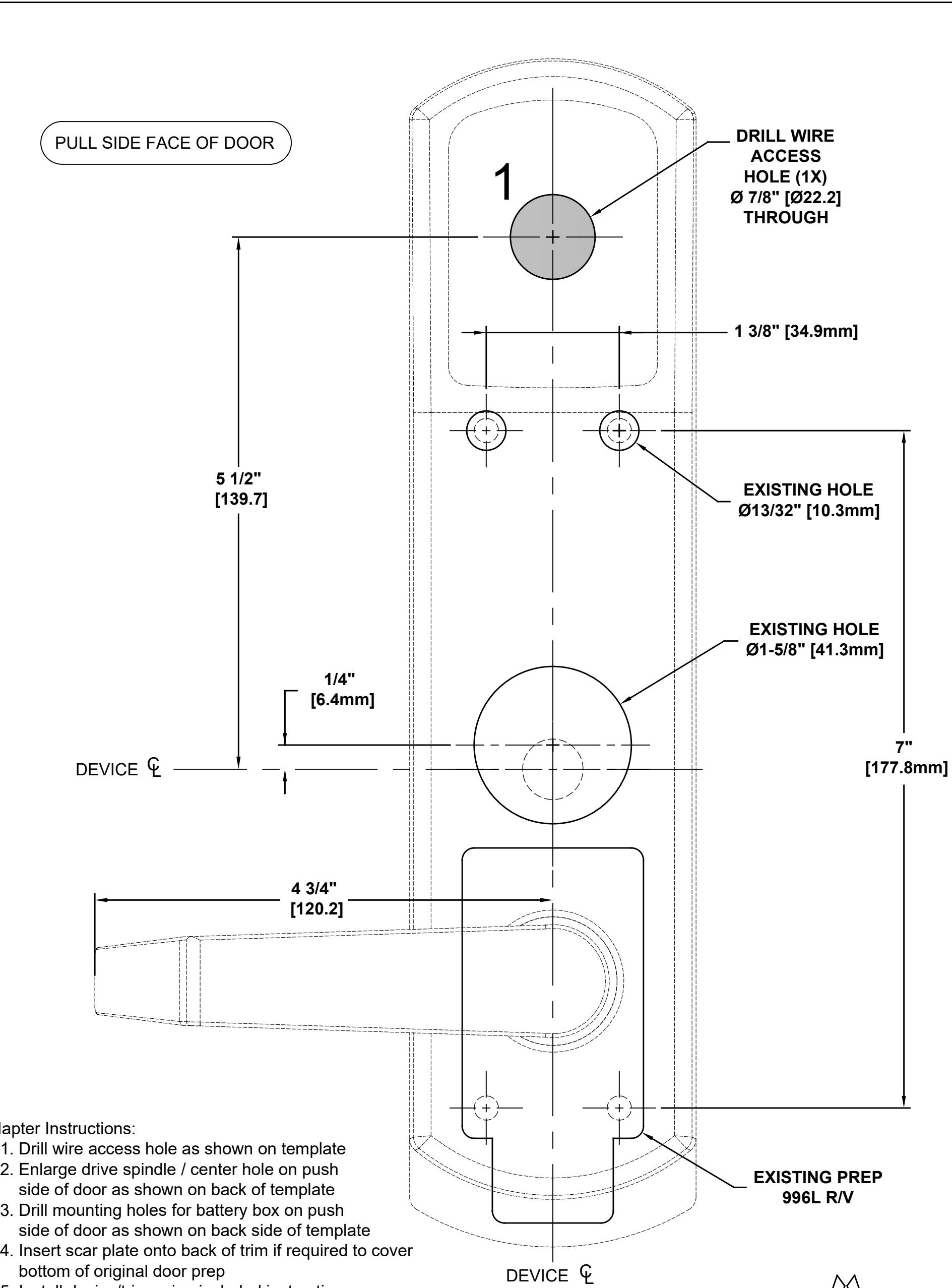

VD1 - 6EWS RETROFIT KIT TEMPLATE

FOR REPLACING VD98,99/996 WITH 6200/6EW

Adapter Instructions:

• 2. Enlarge drive spindle / center hole on push
• side of door as shown on back side of template
• bottom of original door prep
• 5. Install device/trim using included instructions
• 6. Drill & tap strike mounting holes as shown on back side of template

Notes:

• 1. Verify template is printed to scale
• 2. Height of Escutcheon = 11-25/32" [299.2] Width of Escutcheon = 2-31/32" [75] Trim Projection = 3-1/8" [79.4]

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com

TEMPLATE: 629335 REV.0 12-09-19

VD1 - 6EWS RETROFIT KIT TEMPLATE

FOR REPLACING VD98,99/996 WITH 6200/6EW

BATTERY BOX PREP FOR 6EWS RIM DEVICE TRIM FOLD HERE -PUSH SIDE FACE OF DOOR 2 3/16" [55.4mm] - BATTERY BOX MOUNTING HOLES (4X) SEE TABLE "A" TABLE "A" METAL DOORS: 3/4" [69.9mm] USE 7/64" [2.8] PILOT DRILL WOOD DOORS: USE 1/8" [3.2] PILOT DRILL DRILL WIRE ACCESS HOLE (1X) 8 7/8" Ø 7/8" [Ø22.2] [225.4mm] THROUGH 1 5/16" [33.3mm] ^¬ EXISTING HOLE 2x DRILL & Ø1/4" [6.4mm] TAP FOR 1/4-20 (#7 OR 13/64" DRILL) 6 ENLARGE EXISTING HOLE TO Ø1" [25.4mm] 2 5/8" [66.7mm] € DEVICE THIS SIDE ON FRAME STOP THIS SIDE ON DOOR DRILL & TAP 1/4-20 AFTER PDQ Manufacturing ADJUSTMENT 2230 Embassy Dr. COMPLETED Lancaster, PA 17603 833-273-7832 φ DEVICE 833-2 PDQTECH www.pdqlocks.com

TEMPLATE: 629335

12-09-19

REV.0
