6202R – Narrow Rim Device With Mullion – Non-Fire Rated Template – 629332 Rev0

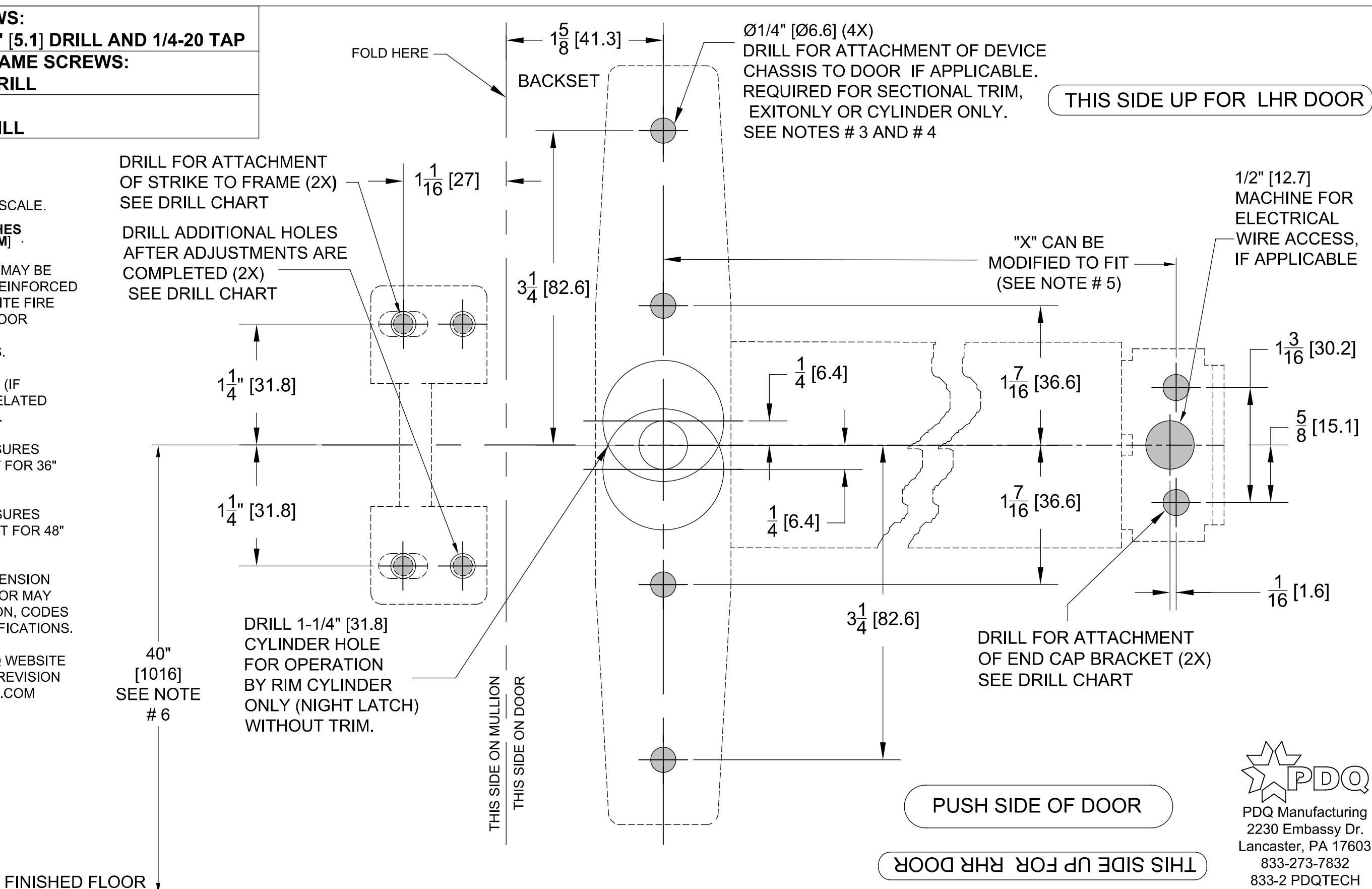

6202R/RA - NARROW STILE PANIC RIM EXIT DEVICE MODELS 1 5/8" BACKSET FROM MULLION

TEMPLATE: 629332 REV. 0 12-5-18 PAGE 1 OF 2

www.pdglocks.com

6202 SERIES EXIT DEVICES WITH 629036 STRIKE

MACHINE SCREWS: USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP WOOD DOOR/FRAME SCREWS: USE 5/32" [4.0] DRILL SEX NUTS: USE 3/8" [9.5] DRILL

NOTES:

• 1. VERIFY PRINTED TO SCALE.
• 2. DIMENSIONS IN [MM]
• 3. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT DOOR MANUFACTURER'S RECOMMENDATIONS.
• 4. SEE TRIM TEMPLATE (IF APPLICABLE) FOR RELATED MACHINING DETAILS.
• 5. DIMENSION "X" MEASURES 31-1/4" [793.8] UNCUT FOR 36" [914.4] DOORS.

DIMENSION "X" MEASURES 43-1/4" [1098.6] UNCUT FOR 48" [1219.2] DOORS.

• 6. RECOMMENDED DIMENSION FROM FINISHED FLOOR MAY VARY BY APPLICATION. CODES OR BUILDING SPECIFICATIONS.
• 7. ALWAYS CHECK PDQ WEBSITE FOR MOST RECENT REVISION AT WWW.PDQLOCKS.COM

TEMPLATE: 629332 REV. 0 12-5-2018 PAGE 2 OF 2

$-2\backslash frac\{5\}\{8\}$ [66.7] - $2\backslash frac\{5\}\{8\}$ [66.7] -1 [25.4] - 1 [25.4] ဍ P

Top View

(2 5/8- (1/2X)-

(2 5/8- (1/2X)

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com

X= DOOR GAP
