6202R – Narrow Rim Device Template – 629328 Rev0

6202R/RA/RF/RFA - NARROW STILE PANIC & FIRE RATED RIM EXIT DEVICE MODELS

STOP & 1/8" DOOR GAP)

TEMPLATE: 629328 REV. 0 4/9/18

www.pdqlocks.com

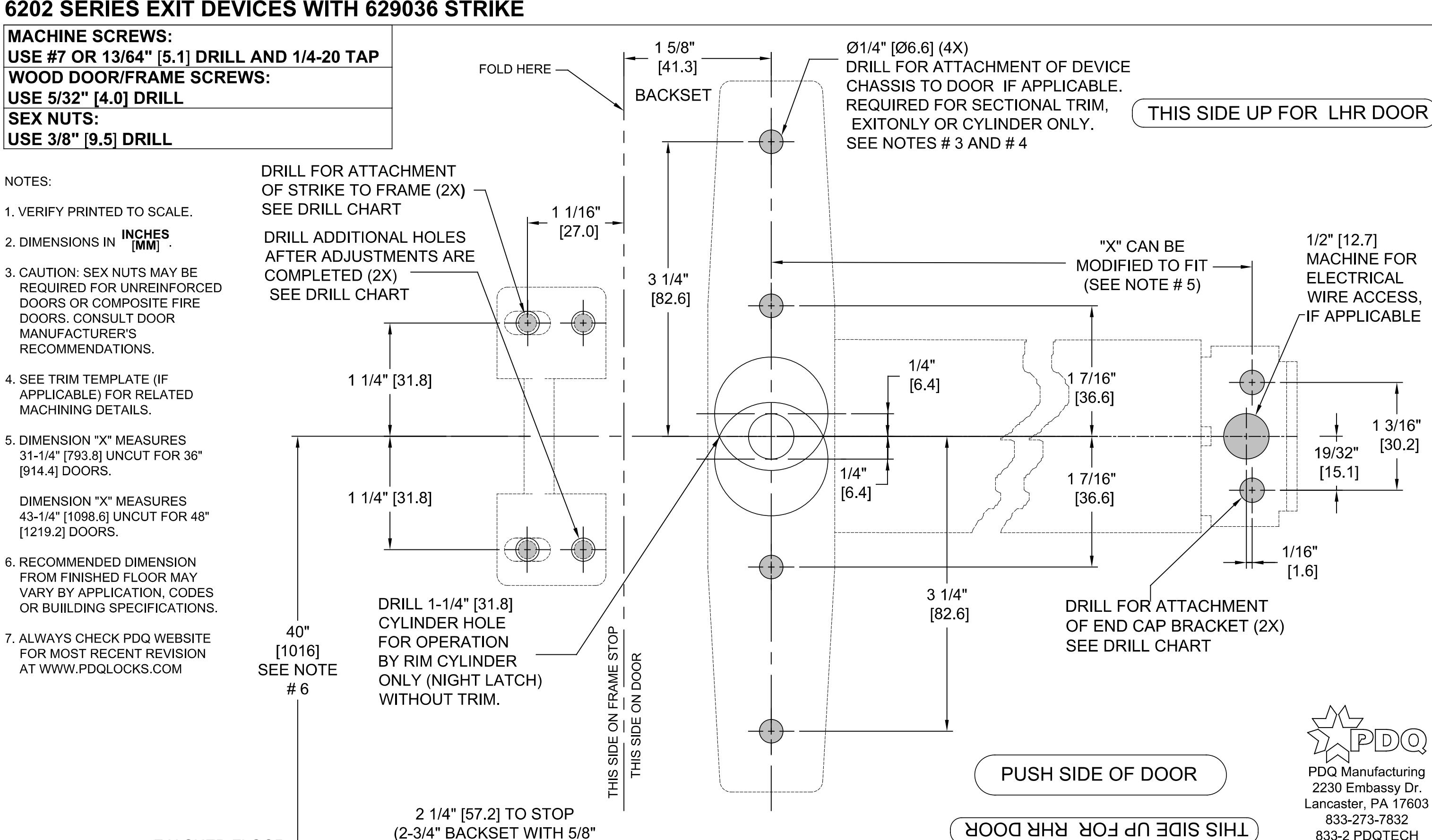

6202 SERIES EXIT DEVICES WITH 629036 STRIKE

FINISHED FLOOR
