6200V – SVR Fire Bolt (LBR) Template – 629307 Rev2

Open the original PDF document

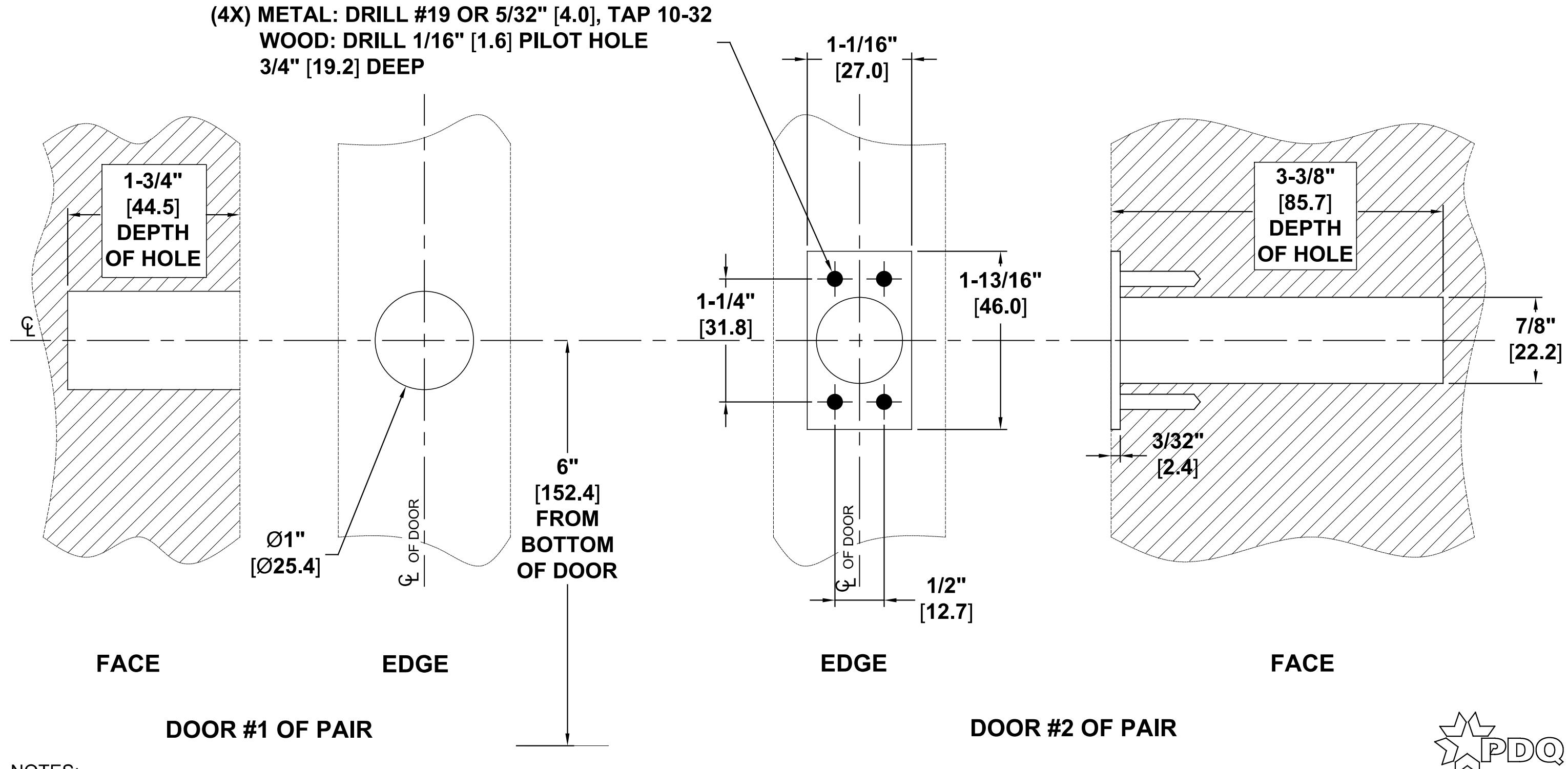

TEMPLATE: 629307 REV. 2 1-30-18

NOTES:

1. VERIFY PRINTED TO SCALE.

2. DIMENSIONS IN INCHES [MM]

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH
