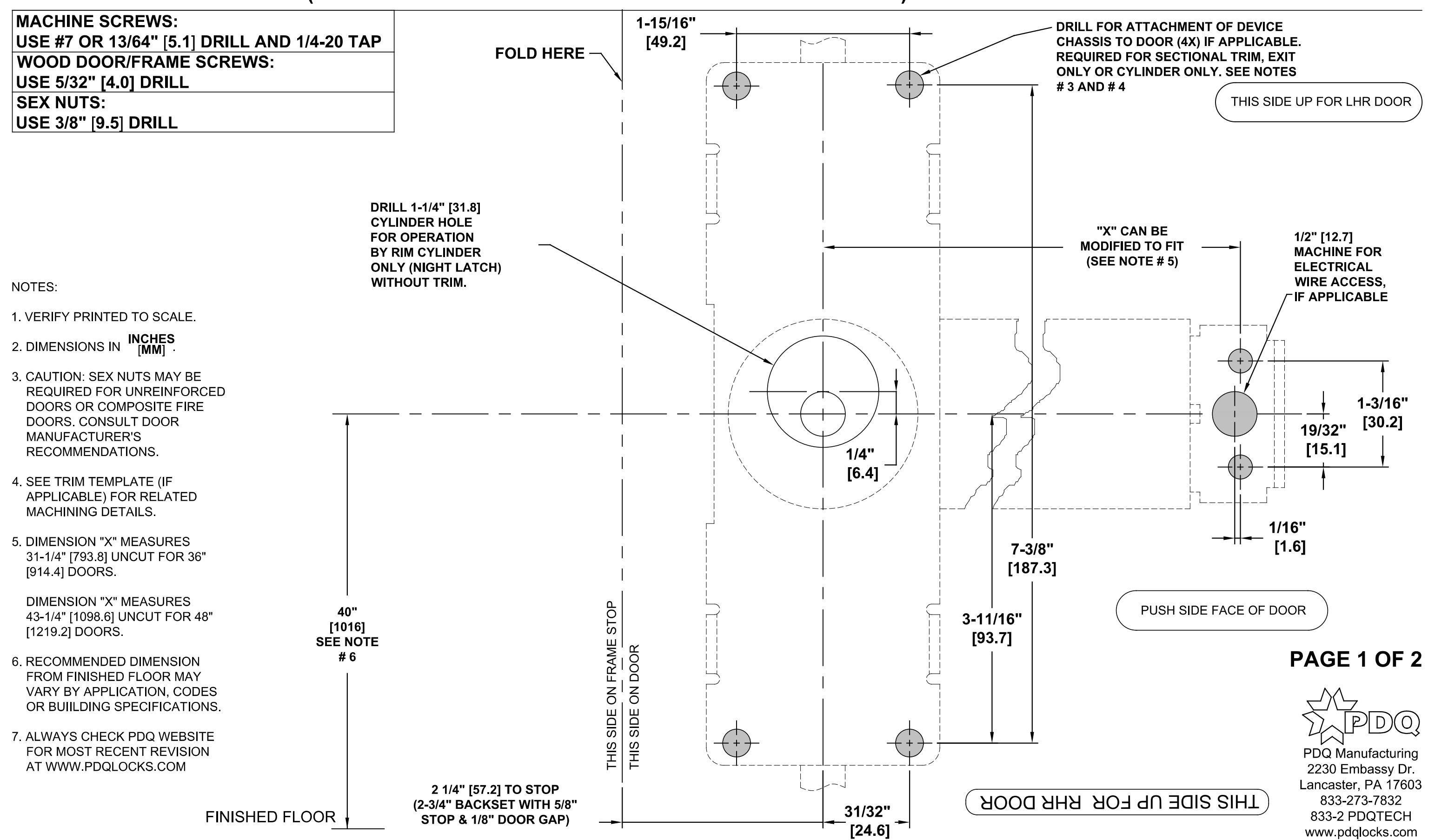

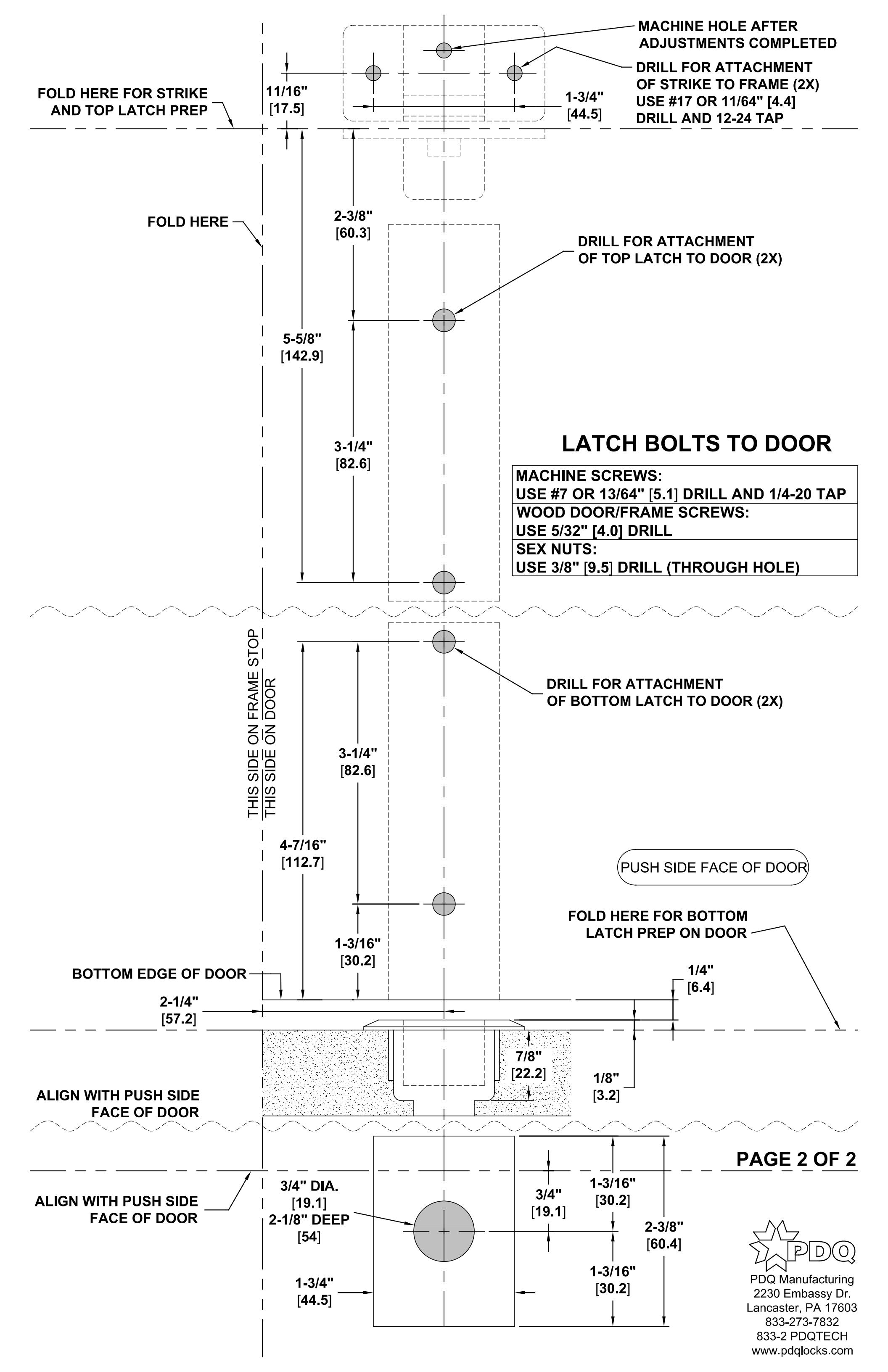

6200V – SVR Device Template – 629311 Rev4

6200V - PANIC & 6200VF - FIRE LABELED SVR EXIT DEVICE MODELS FOR 2-1/4" BACKSET FROM STOP

TEMPLATE: 629311 REV. 4 1-29-18

6200 SERIES EXIT DEVICES (BACKSET MATCHES RIM DEVICES WITH 629036 STRIKE)
