6200RF – Rim Device With Mullion – Fire Rated Template – 629325 Rev2
Open the original PDF document
View PDFTEMPLATE: 629325 REV. 2 3-9-2018 PAGE 2 0F 2

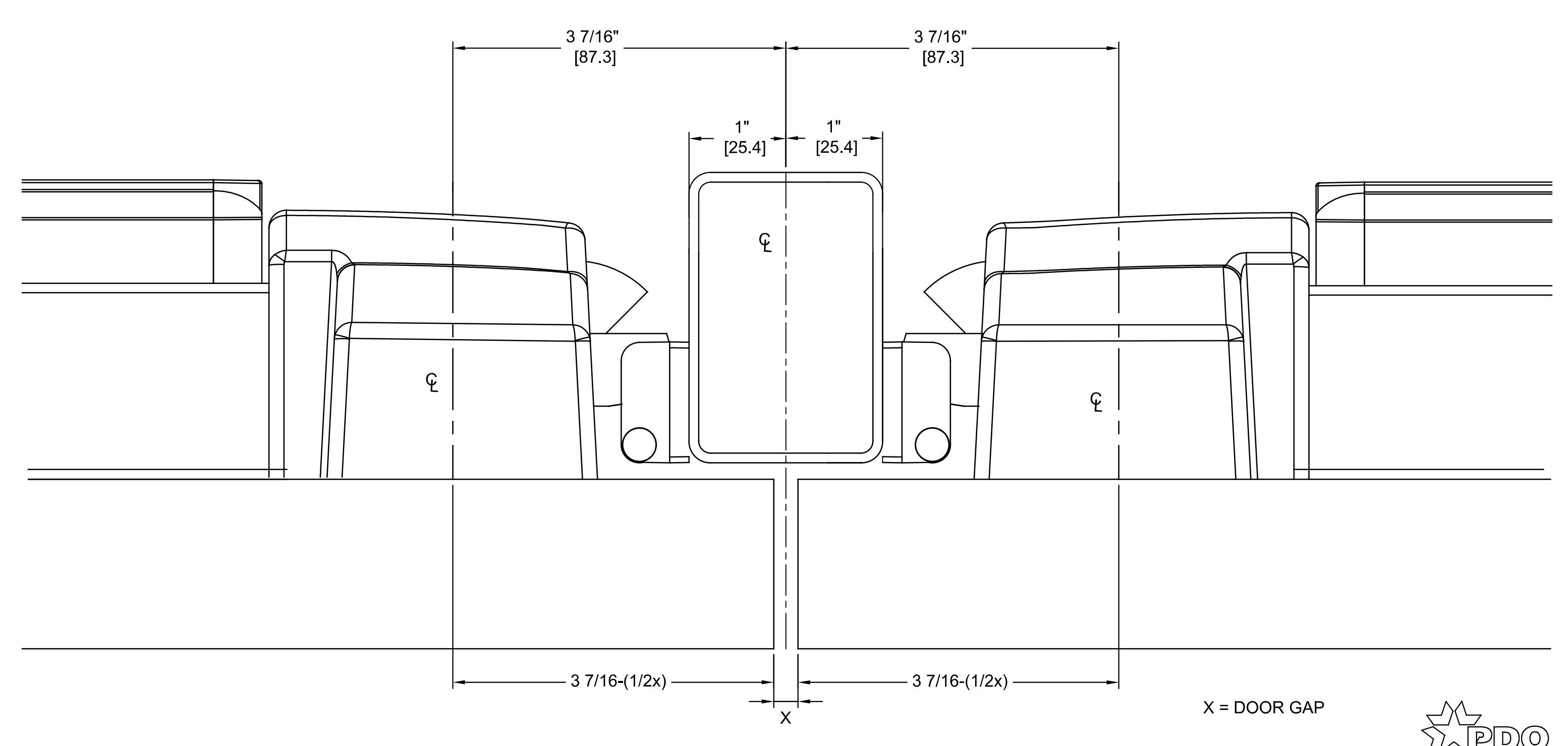

Top View
PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com

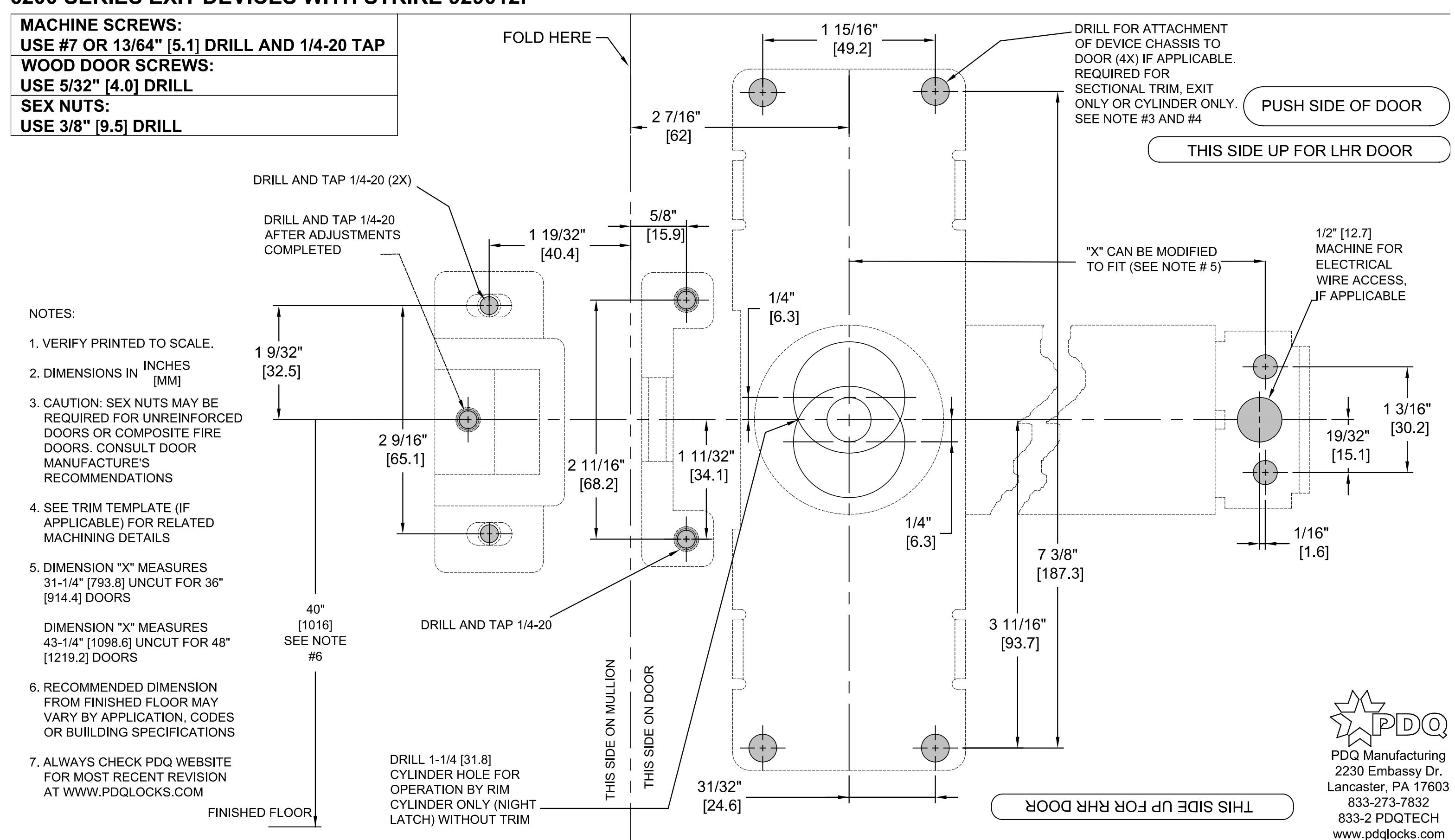

6200RF - FIRE LABELED RIM EXIT DEVICE MODELS WITH MULLION 6200 SERIES EXIT DEVICES WITH STRIKE 929012F
TEMPLATE: 629325 REV. 2 3-9-2018 PAGE 1 OF 2
