6200R – Rim With Mullion – Non-Fire Rated Template – 629322 Rev0
Open the original PDF document
View PDFTEMPLATE: 629322 REV. 0 1-9-2018
PAGE 2 OF 2

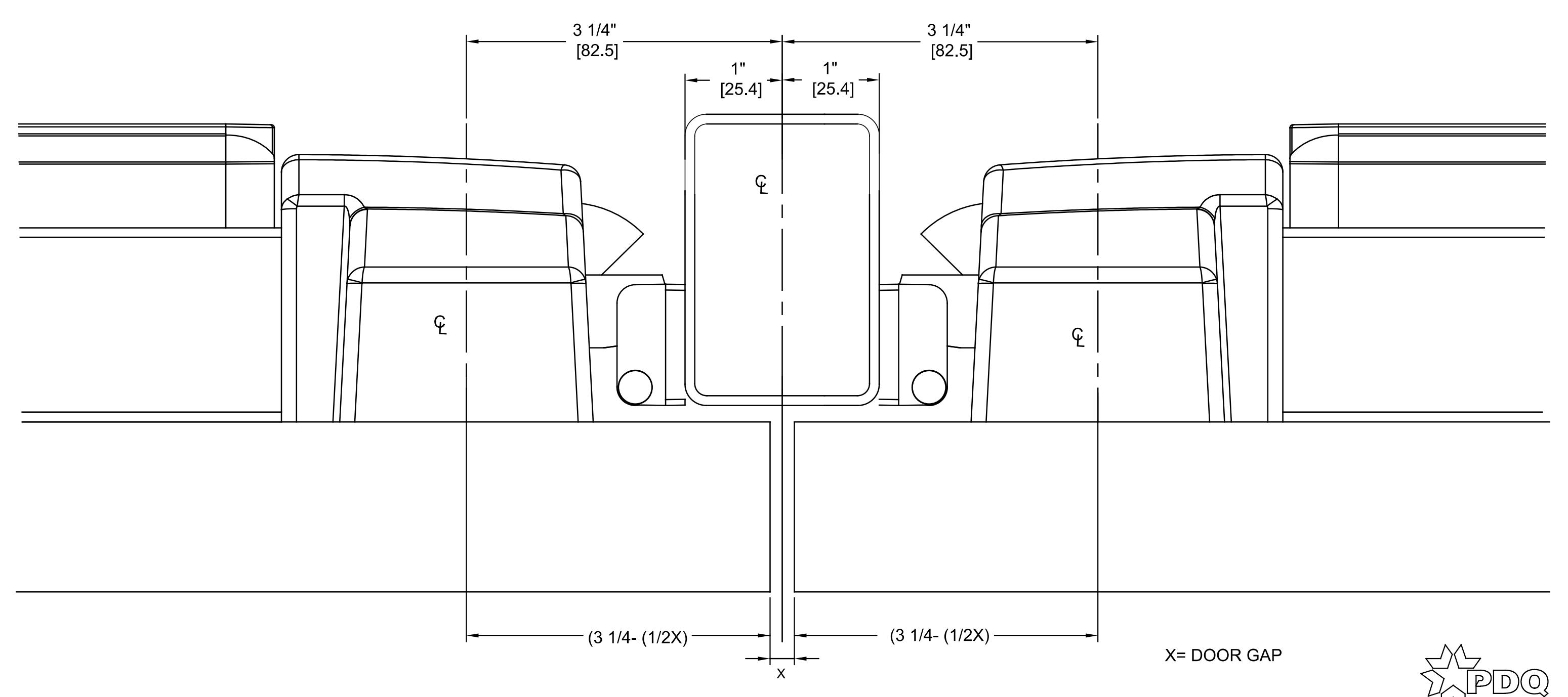

Top View
PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com

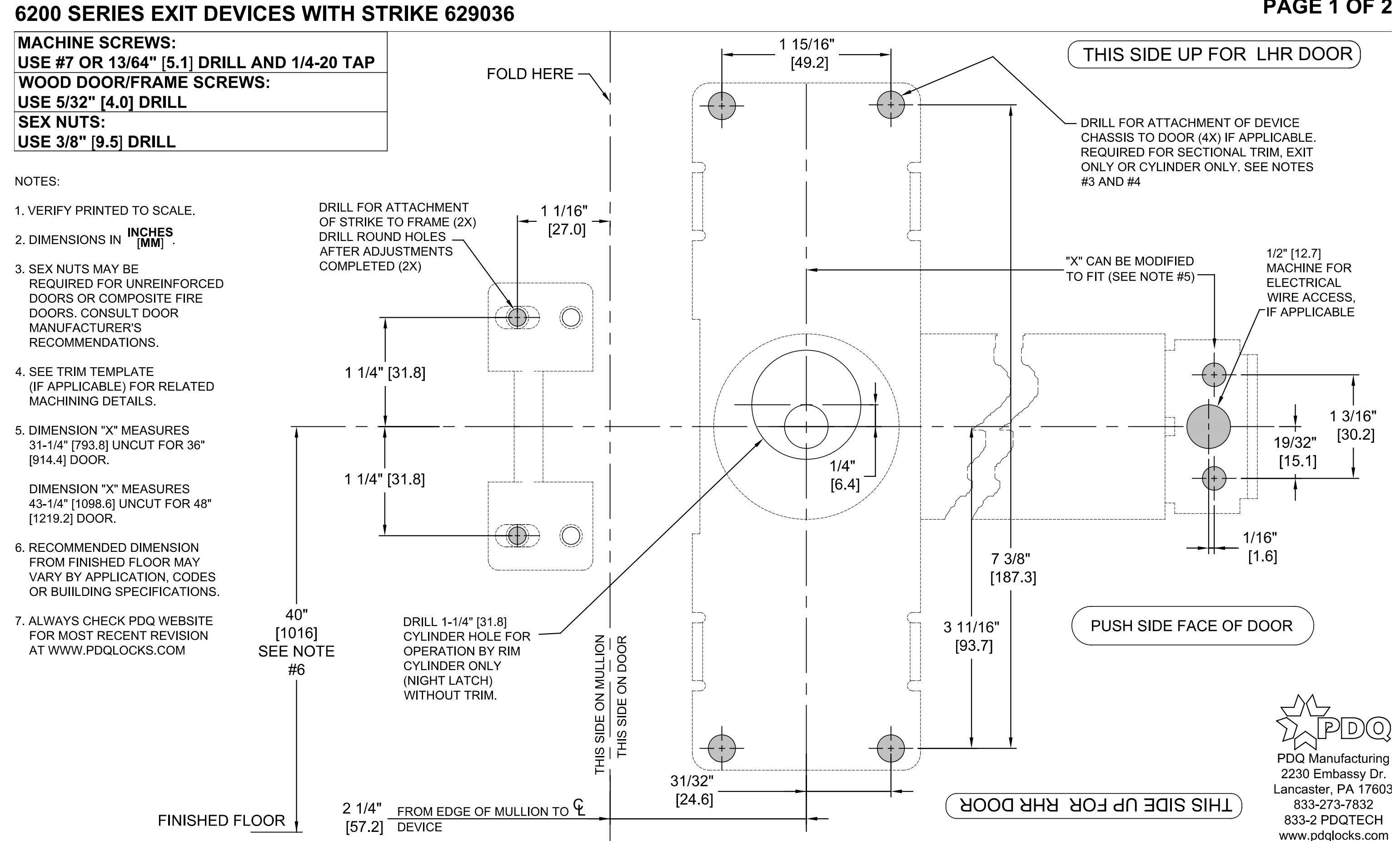

6200R - PANIC LABELED RIM EXIT DEVICE MODELS FOR 2-1/4" BACKSET FROM MULLION
TEMPLATE: 629322 REV. 0 1-12-2018 PAGE 1 OF 2
