6200M – Mortise Device Template – 629323 Rev2
Open the original PDF document
View PDF6200 Mortise Exit Device
TEMPLATE: 629323
REV. 2 11-21-19
www.pdglocks.com

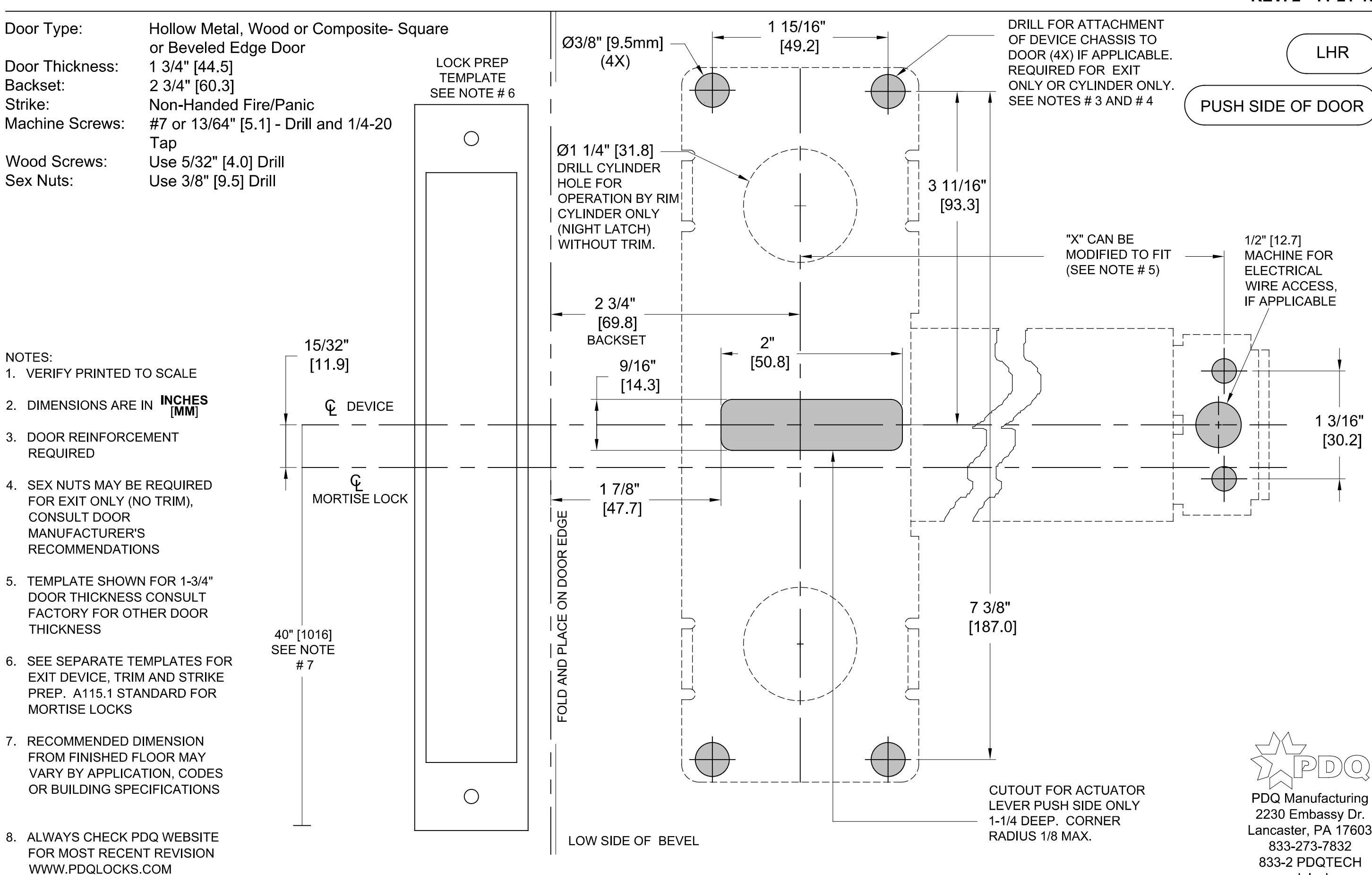

6200MR - PANIC & 6200MRF- FIRE LABELED MORTISE EXIT DEVICE MODELS
TEMPLATE: 629323 PAGE 2 OF 5

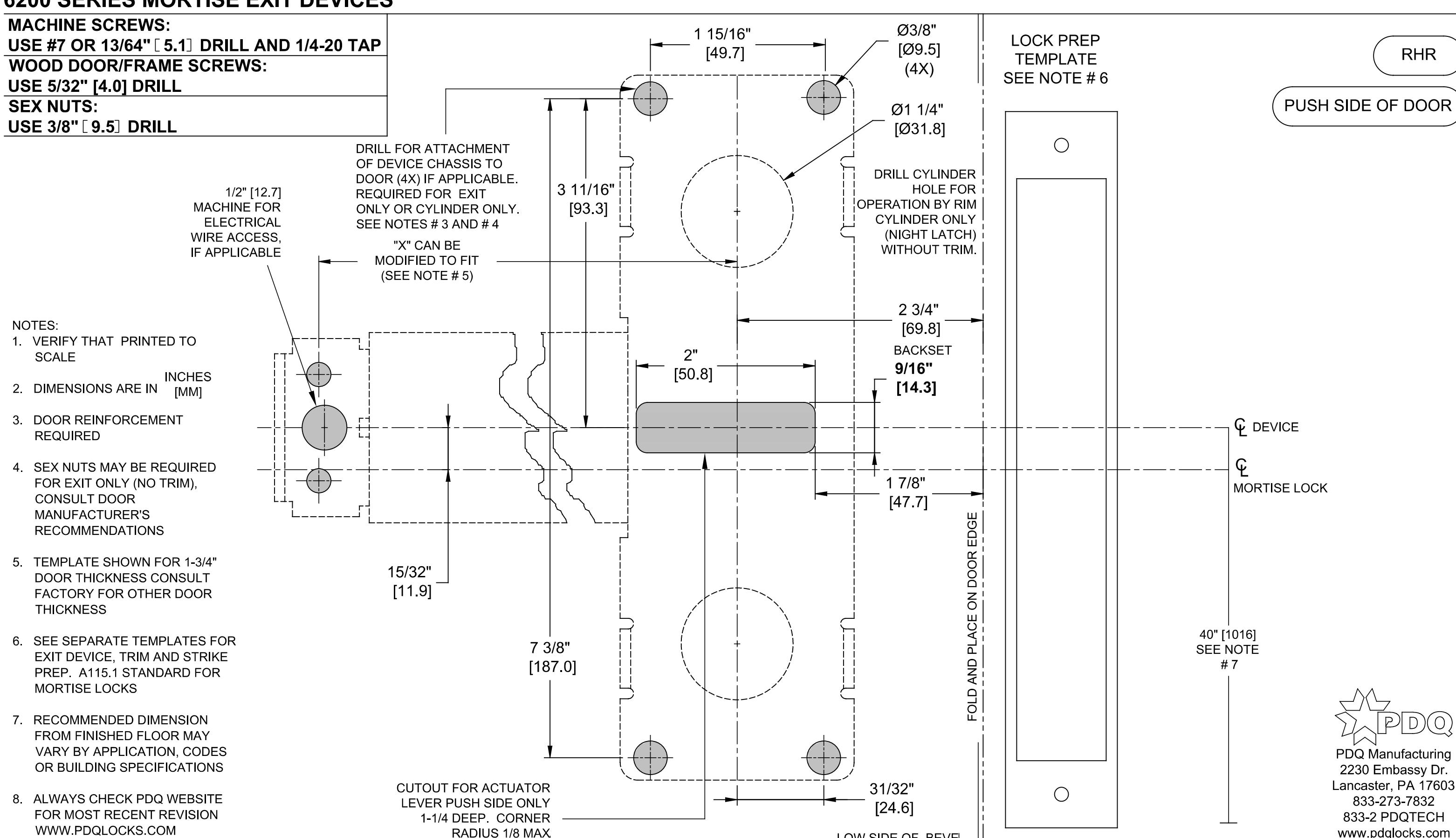

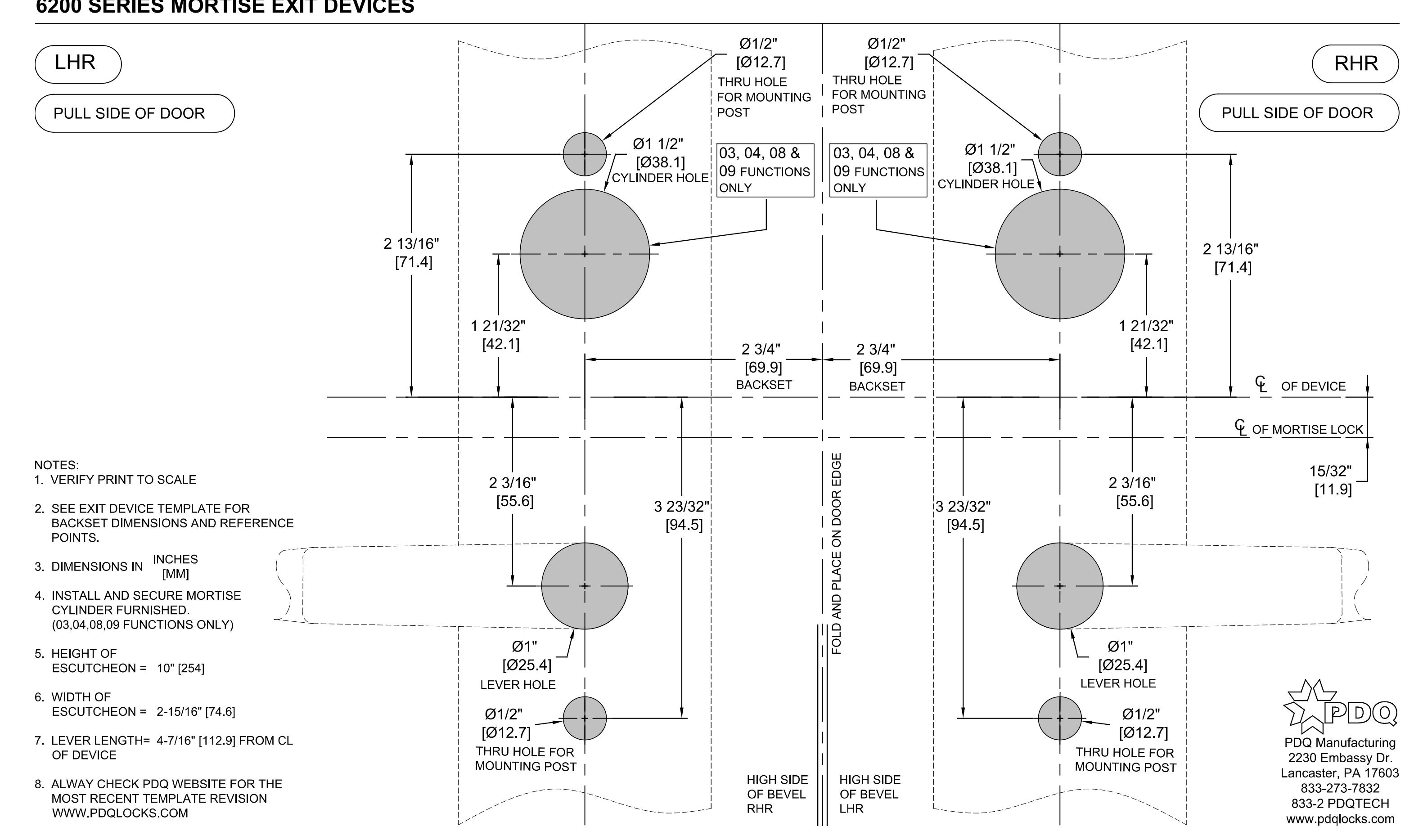

6200 SERIES MORTISE EXIT DEVICES
LOW SIDE OF BEVEL
TEMPLATE: 629323 PAGE 3 OF 5

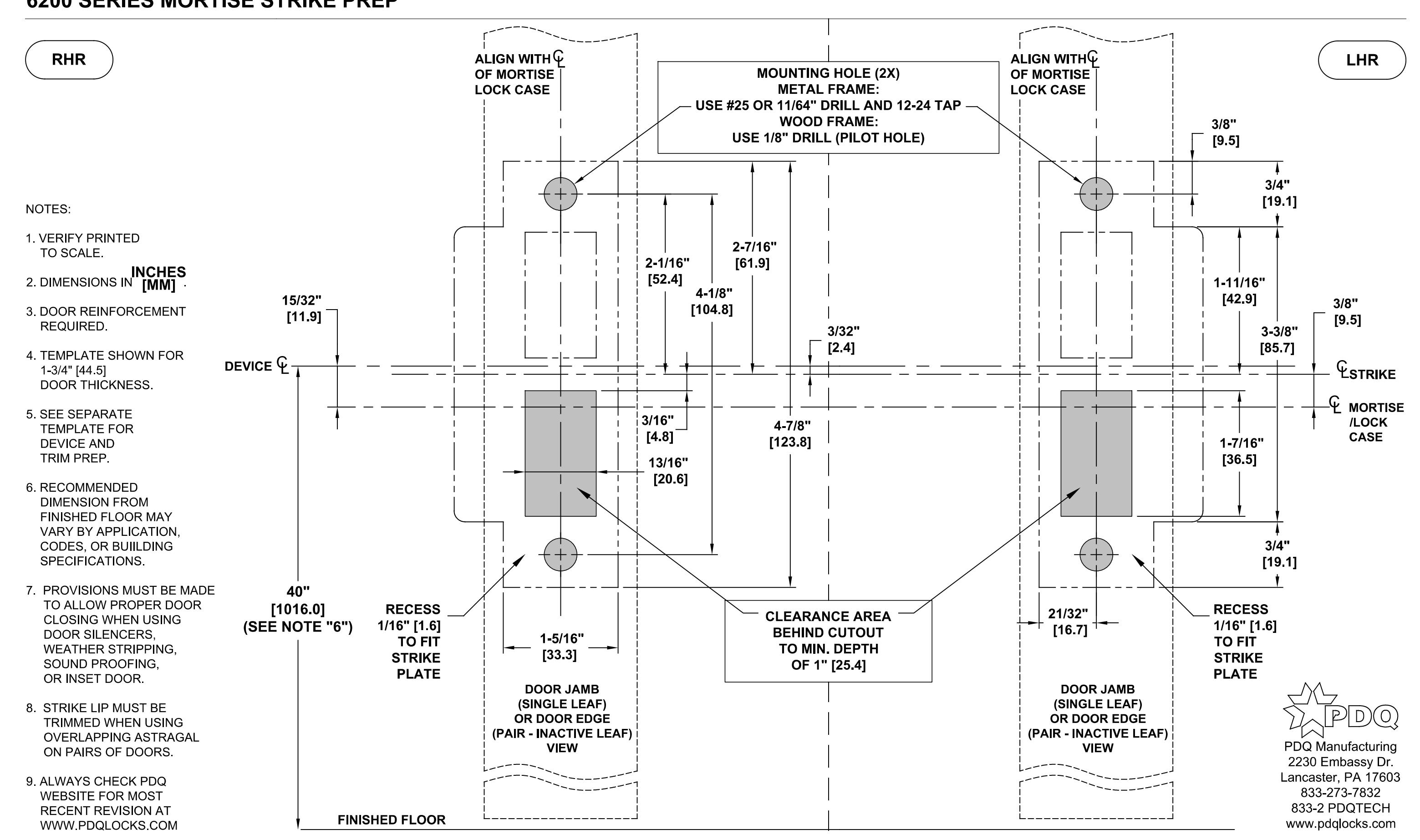

6200MR - PANIC & 6200MRF - FIRE LABELED MORTISE EXIT DEVICE MODELS 6200 SERIES MORTISE STRIKE PREP
TEMPLATE: 629323 PAGE 5 OF 5
6200 SERIES MORTISE EXIT DEVICES
