6200CV – CVR Device Template – 629313 Rev4

Open the original PDF document

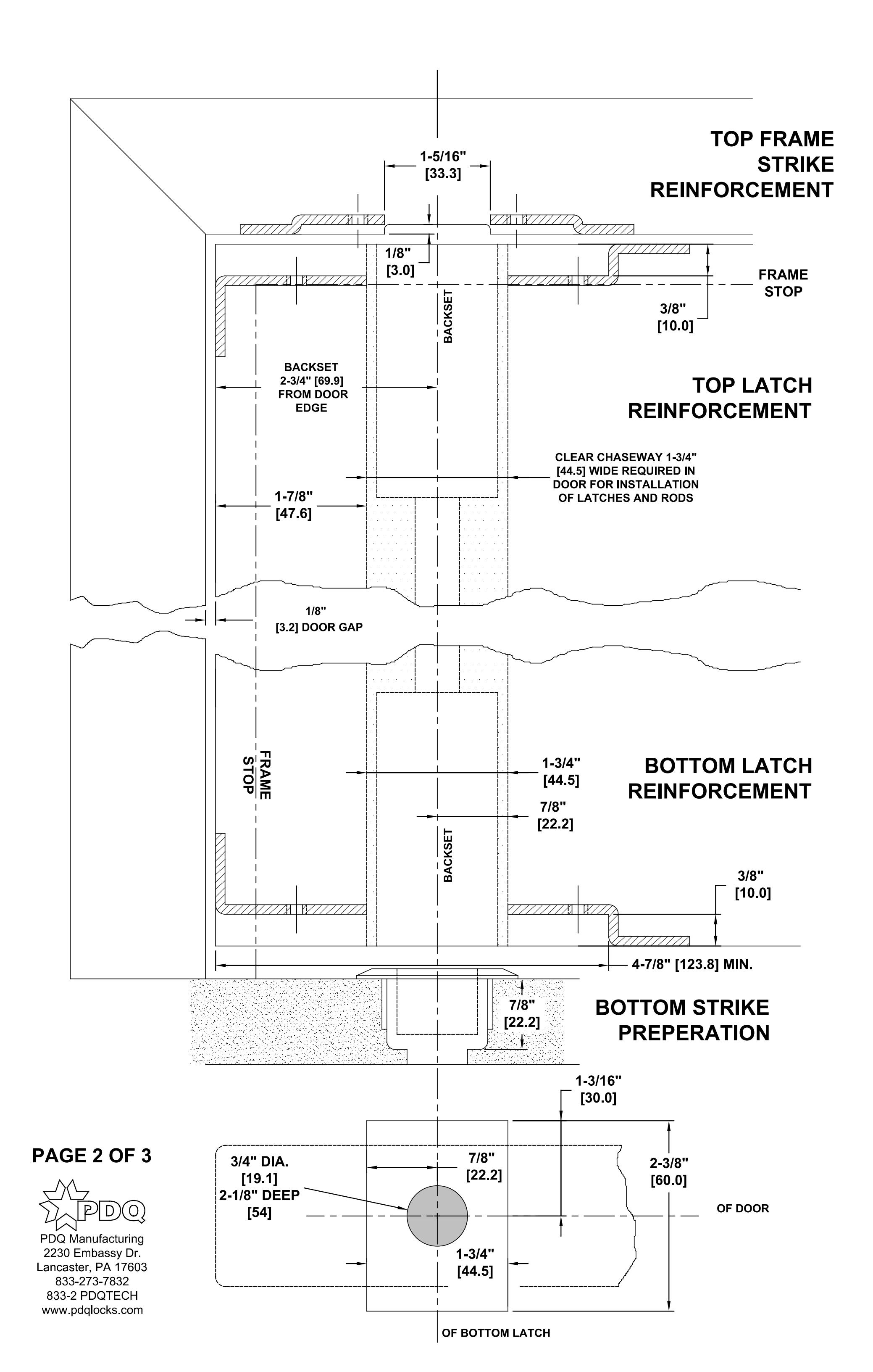

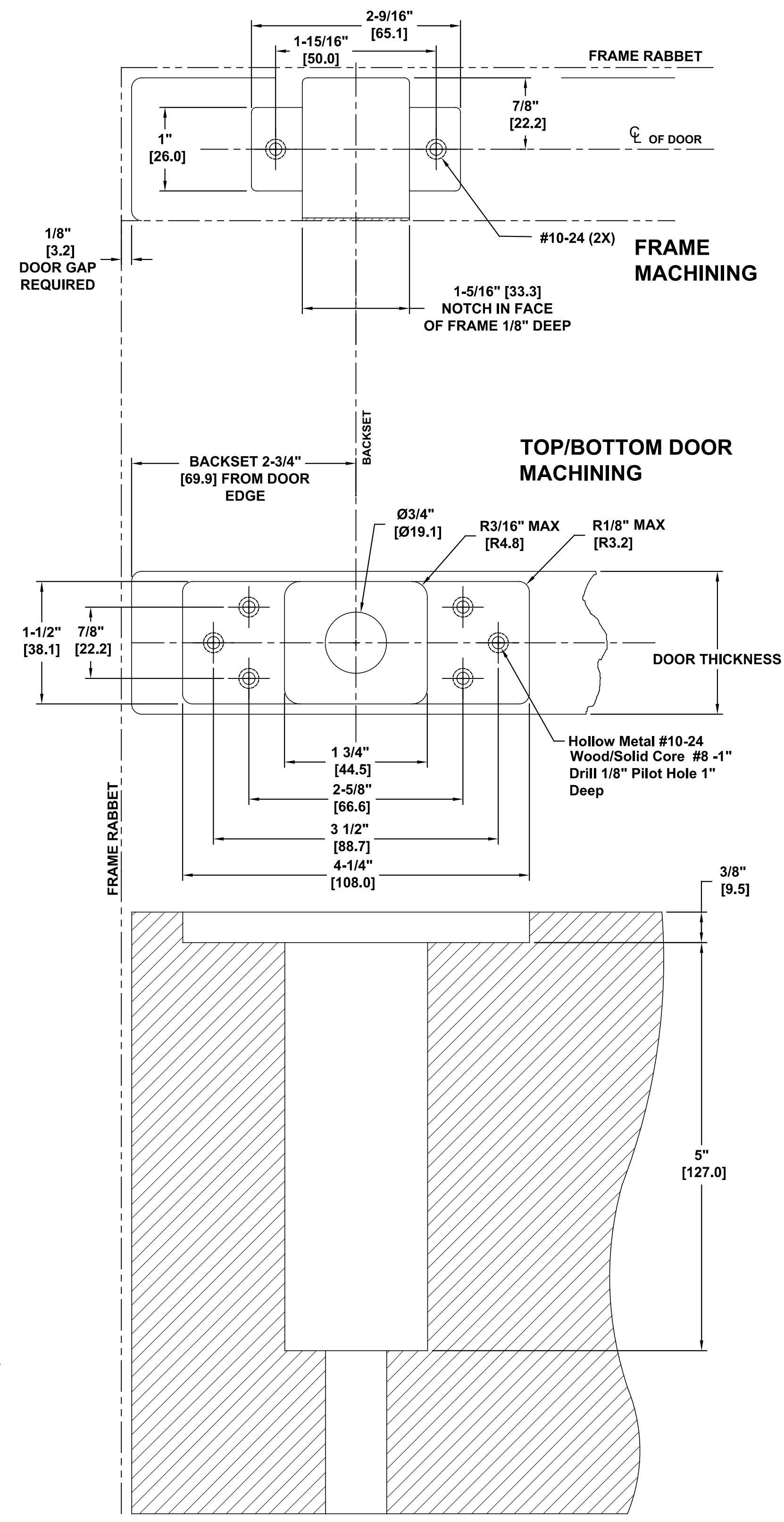

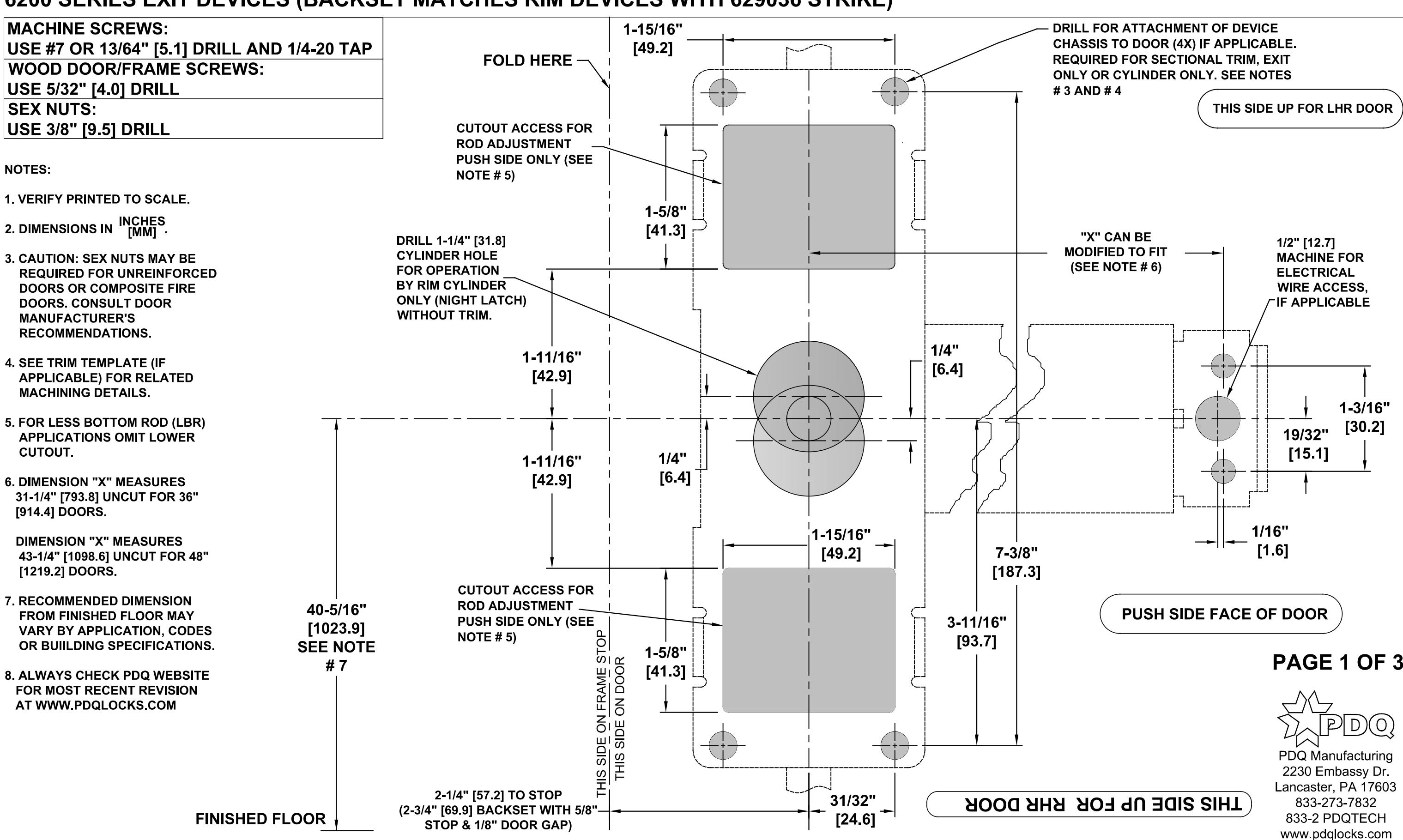

6200CV - PANIC & 6200CVF - FIRE LABELED CVR EXIT DEVICE MODELS FOR 2-1/4" BACKSET FROM STOP

TEMPLATE: 629313 REV. 4 4-2-19

6200 SERIES EXIT DEVICES (BACKSET MATCHES RIM DEVICES WITH 629036 STRIKE)

PAGE 3 OF 3

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH
