6200 Strikes

Open the original PDF document

View PDF

Effective July 1, 2015

3-5/16" [30.2] 3-5/16" [30.2]

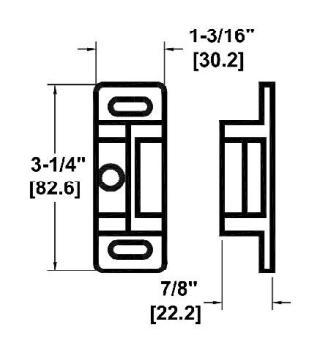

6290121 RIM STRIKE 2-7/16" BACKSET FIRE

629012 RIM STRIKE 2-7/16" BACKSET PANIC

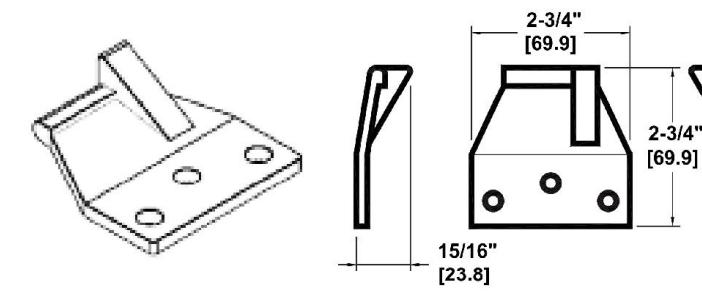

629036 RIM STD. LOW PROFILE STRIKE (2-3/4" BACKSET) FIRE & PANIC

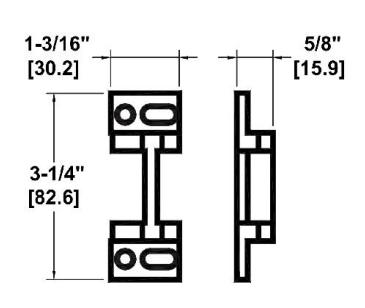

629019 DOUBLE DOOR STRIKE

VERTICAL RODS

6290132 SVR TOP FIRE STRIKE

6290130 TOP SVR PANIC STRIKE

6290131 SVR / CVR BOTTOM FIRE STRIKE

629013 SVR / CVR BOTTOM PANIC STRIKE
