6200 Series Pushbuttons Part II, 6300 Series Audible

Open the original PDF document

Access/Egress Controls

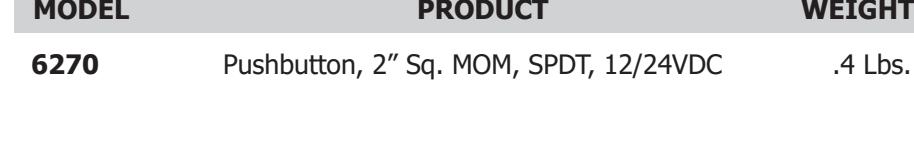

6270 2" Square Plastic Green Button Black EXIT Illuminated

6275 3/8" Dia. SST Button With Pneumatic Time Delay

6285 RGB Ring LED Illuminated Push Button, .3 Lbs.

6275 Pushbutton, 3/8" Dia. 1-60 Sec. PTD, FORM Z .3 Lbs.

6285 14mm Dia. SST Button Ring LED Illuminated IP65 Sealed Vandal Resistant

6290 Palm Switch, 1-5/8" Dia. FORM Z, PTD .4 Lbs.

30 Sec. Min., NFPA 101, 2003

Dual Mode MOM or A-A, FORM Z, 12/24 VDC

Paragraph 7-2.1.6.2

6291 Palm Switch, 1-5/8" Dia. FORM Z, PTD .5 Lbs. 30 Sec. Min., City of Denver Policy

Statement 1994, Paragraph 4

6300 Audible, 6-28VDC .4 Lbs.

Plastic Red Button Marked EXIT NFPA 101 Code

6290 1-5/8" Dia.

6291 1-5/8" Dia. Plastic Red Button Marked UNLOCK DOOR Denver Code

Bi-Color LED - Red/Green, 12/24VDC Narrow Plate - 1-3/4" wide. Available on 6275, 6280, 6282, and 6290 only. LED NR

Special Finishes - Standard finish US32D. See SF

page 56.

Anti-Tamper Switch ATS

6300 1-3/4" Dia. Audible 90 dB @ 30 cm

A-A Alternate Action (Maintained)

MOM Momentary Action

SPDT Single Pole Double Throw DPDT Double Pole Double Throw

FORM Z Single Pole Double Throw, Double Break

PTD Pneumatic Time Delay

SST Stainless Steel
