Hospital Push/Pull Latches

6200 Series – Asylum Trim Cylindrical Latches

Standard Features

• Helps support a safer environment in hospitals and other institutions where safety is of the highest priority
• Cylindrical latch application passage function
• 1-¾" standard door thickness (specify if different)
• "SEC" Security fasteners provided standard
• Trim is mounted using four thru-bolts for maximum stability
• Non-handed unit for installation and stocking ease
• UL Listed 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw
• Patent# 6,196,599 & Additional Patent Pending

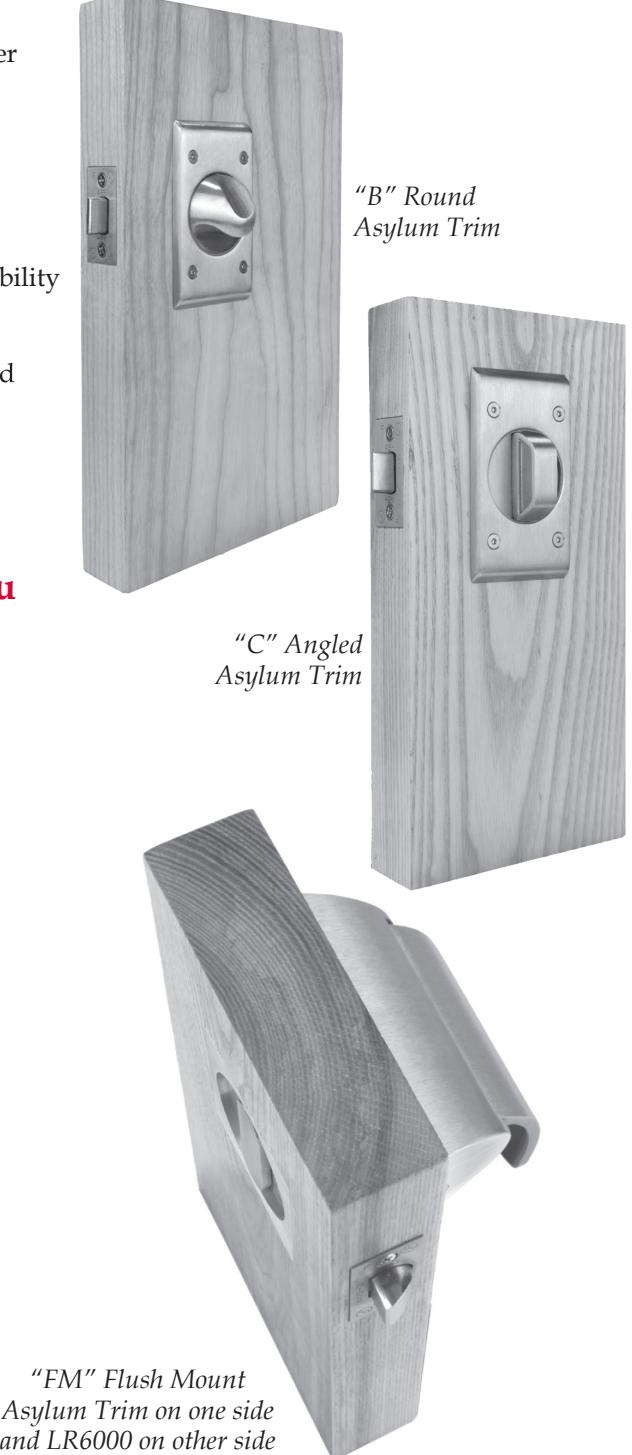

Selecting the Right Asylum Trim for You

ABH manufactures three Asylum Trim types from which to choose - all operate in the same manner, by simply rotating the "knob" either clockwise or counterclockwise.

• "B" Round Asylum Trim
• Place your thumb on top of the knob and your
• "C" Angled Asylum Trim
• This sleek design models the look of a thumb turn
• "FM" Flush Mount Asylum Trim
• on both sides (no projection).
• Pull side FM trim incorporates a ring that sits rotated to operate the latch and help pull the door open (see picture on C-11).

Hospital Push/Pull Latches

6200 Series – Asylum Cylindrical Latches

Mounting Options

• "AB" – Asylum Trim on Both Sides

Asylum trim is provided on both sides of the door in lieu of standard hospital push/pull trim.

Asylum trim is provided on push side of the door and standard pull trim is provided on the pull side.

• "PSA" – Asylum Trim on Pull Side

Asylum trim is provided on pull side of the door and standard push trim is provided on the pull side.

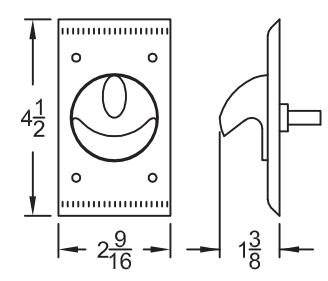

"B" Round Asylum Trim 6200 - B - AB

"C" Angled Asylum Trim

6200 - C - AB

"FM" Flush Mount 6200 - FM - AB

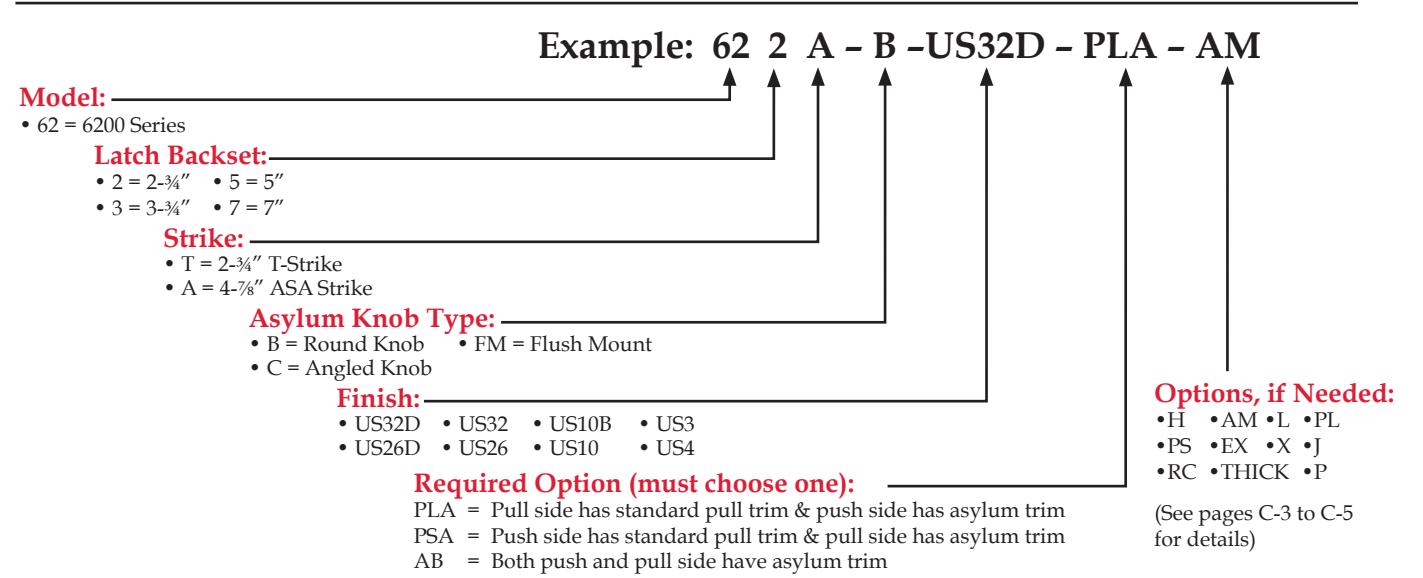

How to Order: Asylum Trim
