INSTALLATION INSTRUCTIONS FOR NO. 610 EMERGENCY DOOR STOP

  • 1. Door stop should be mounted on Jamb at the lock side of the door approximately halfway up the height of the door.

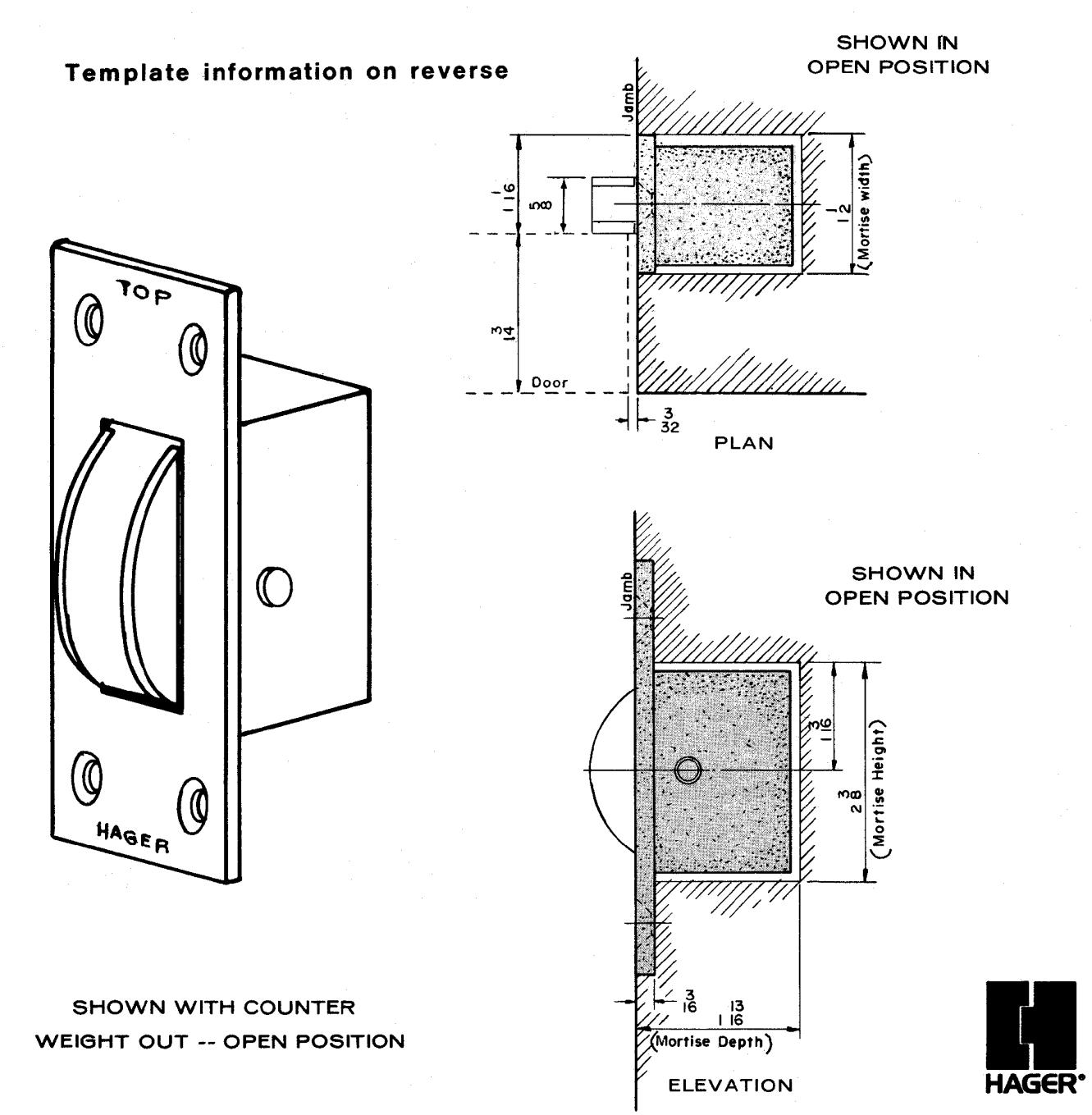

  • 2. Mortise hole in Jamb as shown.
  • 3. Mount emergency door stop with counterweight stop in open position and "Top" as indicated.
  • 4. Insert & tighten screws.
