6000 Series Cylindrical Push Pull Latch – Cut Sheet

Open the original PDF document

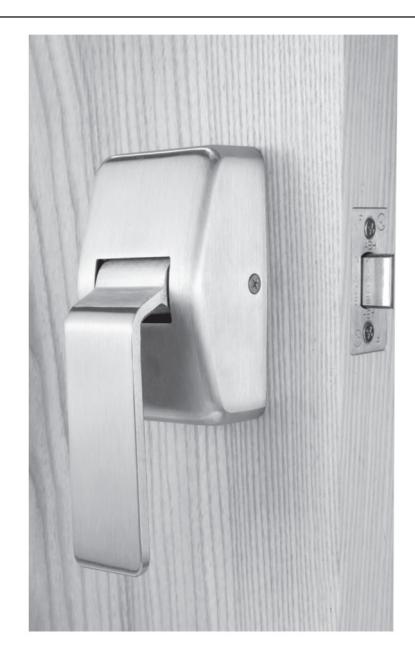

Hospital Push/Pull Latches

Cylindrical latch application passage function
1-¾" standard door thickness (specify if different)
Meets ADA requirements
Trim is mounted using four thru-bolts for maximum stability
One continuous spring provides a smoother operation and an extended life for the unit
Non-handed for installation and stocking ease
Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
Handles can be mounted up or down by simply rotating trim 180º
rated 90 minutes or less, up to 4'0" x 8'0" UL Listed in U.S.A. and Canada for use on door fire
1/2" Latch Bolt Throw
Patent# 6,196,599 & Additional Patent Pending
