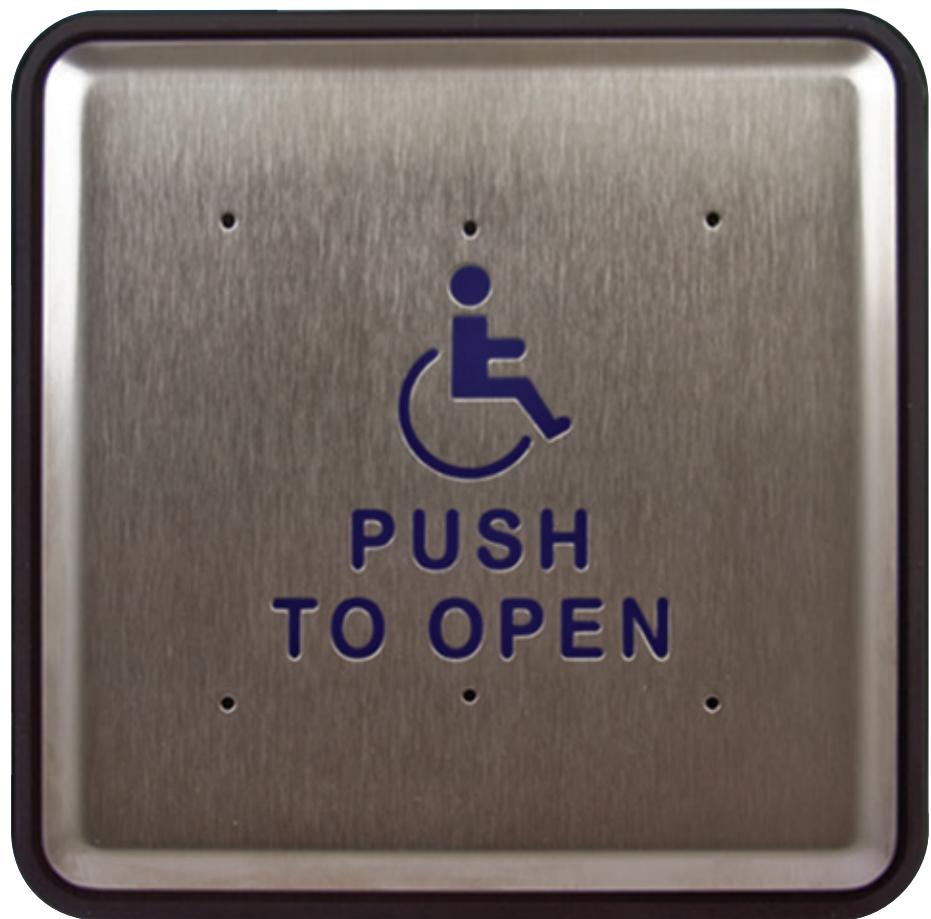

A larger solution of the square push plate, this 6" plate is more visible, easier to use, and doesn't distract from the architecture.

• Greater surface area of the push plate makes this push plate easy to use
• Beveled edges provide a tamper and vandal resistant solution
• Universal touch area at any "push" location
• Stainless steel finish is scratch/ scuff resistant and will not deteriorate or rust
• Text and logo are baked onto the surface for maximum durability
• Available in multiple styles to meet specifications and customer requests

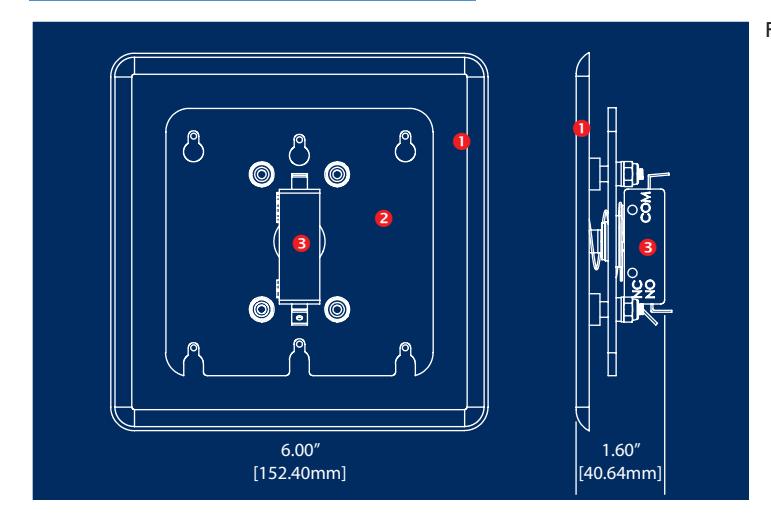

TECHNICAL SPECS

• A. 16 gauge, 304 2B Stainless Steel Faceplate
• B. 1/8" thick, Aluminum Back Plate
• C. Stainless Steel 6-32 x 1" and 8-32 x 1" Allen head mounting screws
• D. Cherry Switch: Single-pole, 15A, COM / NO / NC contacts

PBS6 SERIES FAMILY OF PRODUCTS

10PBS6 - Text only 10PBS610 - Plain Face 10PBS61 -

Text and Logo

10PBS6LL - Logo only

MOUNTING FEATURES

The mounting boxes for the 6" square push plates are built with a placeholder for the wireless transmitter's 9 Volt battery.

PBS6 SERIES MOUNTING OPTIONS

10BOX6SQSM - Surface Mount Box

10BOX6SQFM - Flush Mount Box

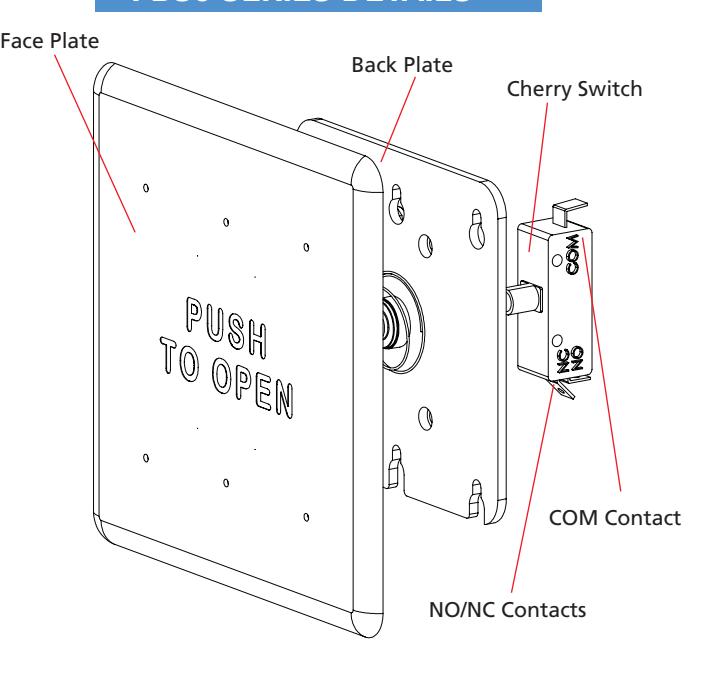

COMPONENTS

• Front Plate
• Back Plate
• Cherry Switch

PBS6 SERIES DETAILS`
