PRODUCT DESCRIPTION

The 59R6 Series push plate switches are designed to provide reliable activation of any automatic door.

The 59R6 Series features 5 1/2" round face plates in either stainless steel or blue powder coated aluminum with etched and paint filled legends. A 6" diameter formed stainless steel back plate eliminates possible wall damage from standard use.

Designed as a universal switch, the 59R6 Series fit singlegang or 2-gang electrical boxes with no adapters necessary. A surface mount box is also available.

Each unit is built utilizing heavy gauge stainless steel, aircraft quality rivets and screws, durable finishes and the most reliable microswitch in the industry.

American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/BHMA A156.10 & A156.19.

TECHNICAL DATA

• 5 1/2" Round All Active FacePlate

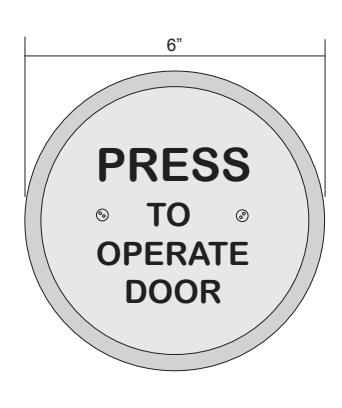

• 6" Diameter Formed StainlessSteel Back Plate
• UL Listed "Cherry Switch", SPDT, Mom., 15 Amp @ 125V AC

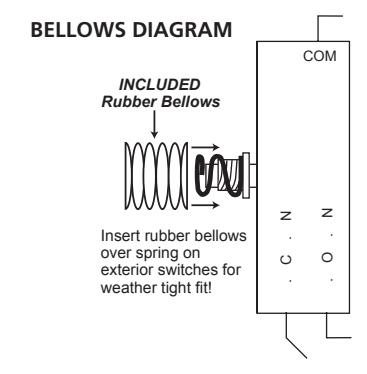

• Rubber "Bellows" IncreasesWeather Protection (included)
• Fits Single or 2-gang ElectricalBox or MS SEDCO SurfaceMount Box
• Radio Control Versions Available

sedco 59R6 SERIES 6 " Round

PUSH PLATE SWITCHES

#59R6-H (Blue Powder Coat with White Paint Filled Legend)

#59R6-P (Stainless Steel with Black Paint Filled Legend)

#59R6-HSS (Stainless Steel with Blue Paint Filled Legend)

NOT SHOWN

#59R6-W (Blue Powder Coat with White Wheelchair)

#59R6-WSS (Stainless Steel with Blue Wheelchair)

#59R6-Plain (Stainless Steel with No Legend)
