PREMIUM PUSH PLATES FOR KNOWING ACT APPLICATIONS

PBR SERIES

10PBR Push To Open Text Only

10PBR1 Push To Open Text and Logo

10PBRLL Handicap Logo Only

10PBR10 Plain Face No Graphic

6" PUSH PLATES PREMIUM PUSH PLATES

PBR SERIES

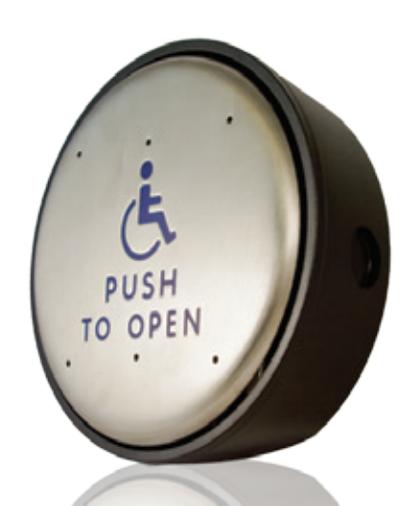

10PBR1 shown with optional surface mount box (All mounting options are sold separately)

The PBR series is a standard 6 inch round push plate with a premium design for wall applications, as well as functional, aesthetically appealing and weather resistant.

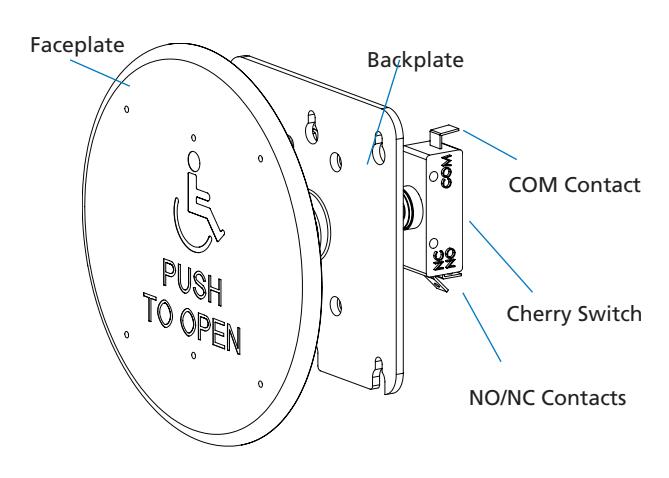

COMPONENTS VIEW

FEATURES

• Larger surface area for high visibility
• Beveled edges are less susceptible to damage by deflecting harsh impacts from any side
• Stainless steel finish is scratch/scuff resistant and will not deteriorate or rust from exposure to liquids and other cleaning agents
• Graphics are etched onto the faceplate for maximum durability
• Available in various styles to fit almost any application, hard wired or wireless

West: 800-544-4422 • East: 800-225-6737

BENEFITS

• Grade 304 stainless steel maximizes corrosion resistance and prevents rusting
• Stainless steel materials are 100% recyclable and environmentally friendly
• Options include hard wired and wireless mounting
• Compatible wireless frequencies include 433, 390 or 300 MHz

MOUNTING ACCESSORIES

Surface Mount

Flush Mount

Stainless Steel Surface Mount

10PBBRACKET Surface Mount Kit 10WRRND6 6 inch Weather Ring

10PBBRACKETCA Clear Anodized Surface Mount

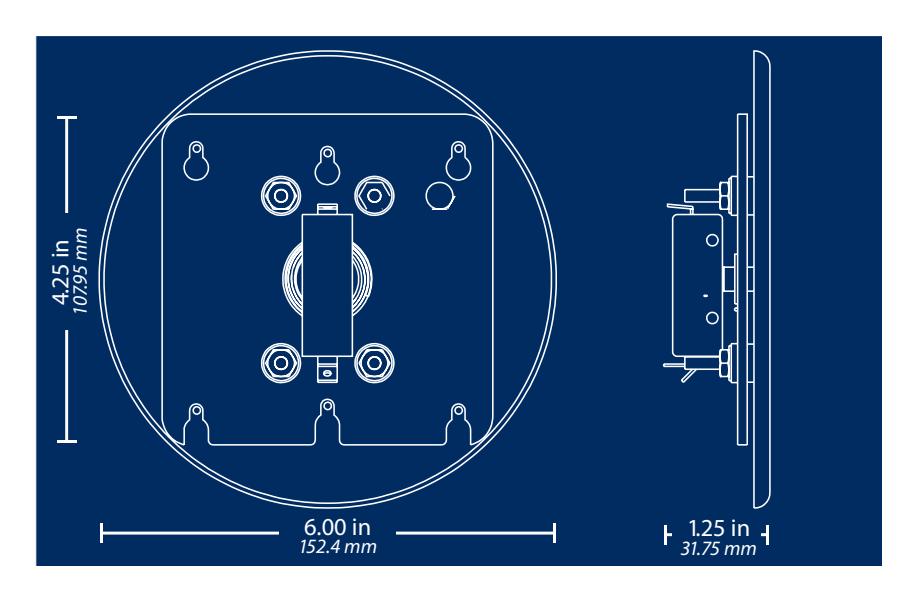

DIMENSION DETAILS

BACK SIDE

TECHNICAL SPECIFICATIONS

Materials	Faceplate: 16 gauge, 304 2B Stainless Steel Backplate: 1/8 inch thick, Aluminum
	Mounting Screws: Stainless Steel, 6-32 × 1 in & 8-32 × 1 in Allen Head Size: 5/64
Cherry Switch	Single-pole, 15 A, COM / NO/ NC
Compatible Wireless Frequencies	433, 390 or 300 MHz

Specifications are subject to change without prior notice.
