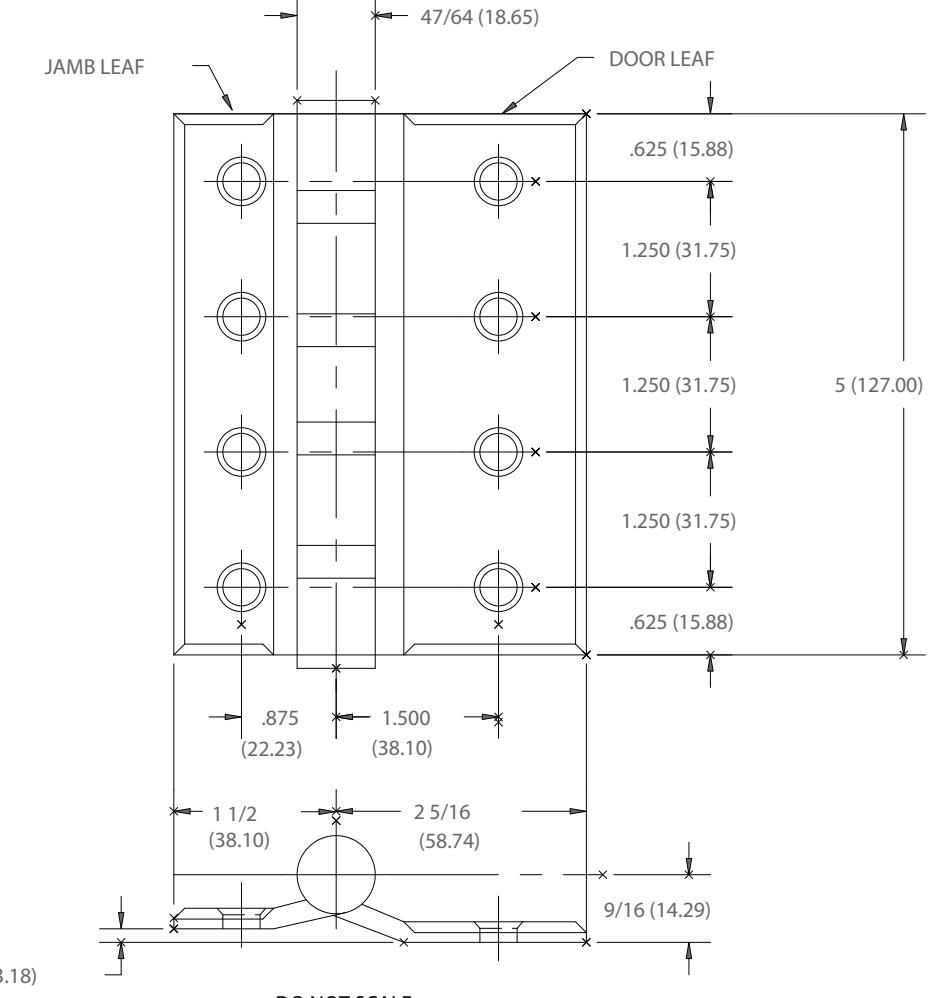

View PDFSIZE: 5 (127.00)
FOR TUBULAR STEEL DOORS WITH CHANNEL IRON JAMBS
1/8 (3.18)
-DO NOT SCALE-
| CATALOG NUMBER | ||
|---|---|---|
| NON | ||
| STEEL | FERROUS | METAL |
| HINGES | HINGES | GAUGE |
| BB2168 | BB2108 | .190 (4.83) |
ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.
Machine Screw Size: Door Leaf- 1/4-20 x 2" O.H. WITH GROMMET NUTS Jamb Leaf- 1/4-20 x 1/2 O.H.
Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
