5in 5-KNU (ETW10, ETW12, ETW6-2228, ETW2-18, ETW6-1828 & ETW8-1828) t-ct00062

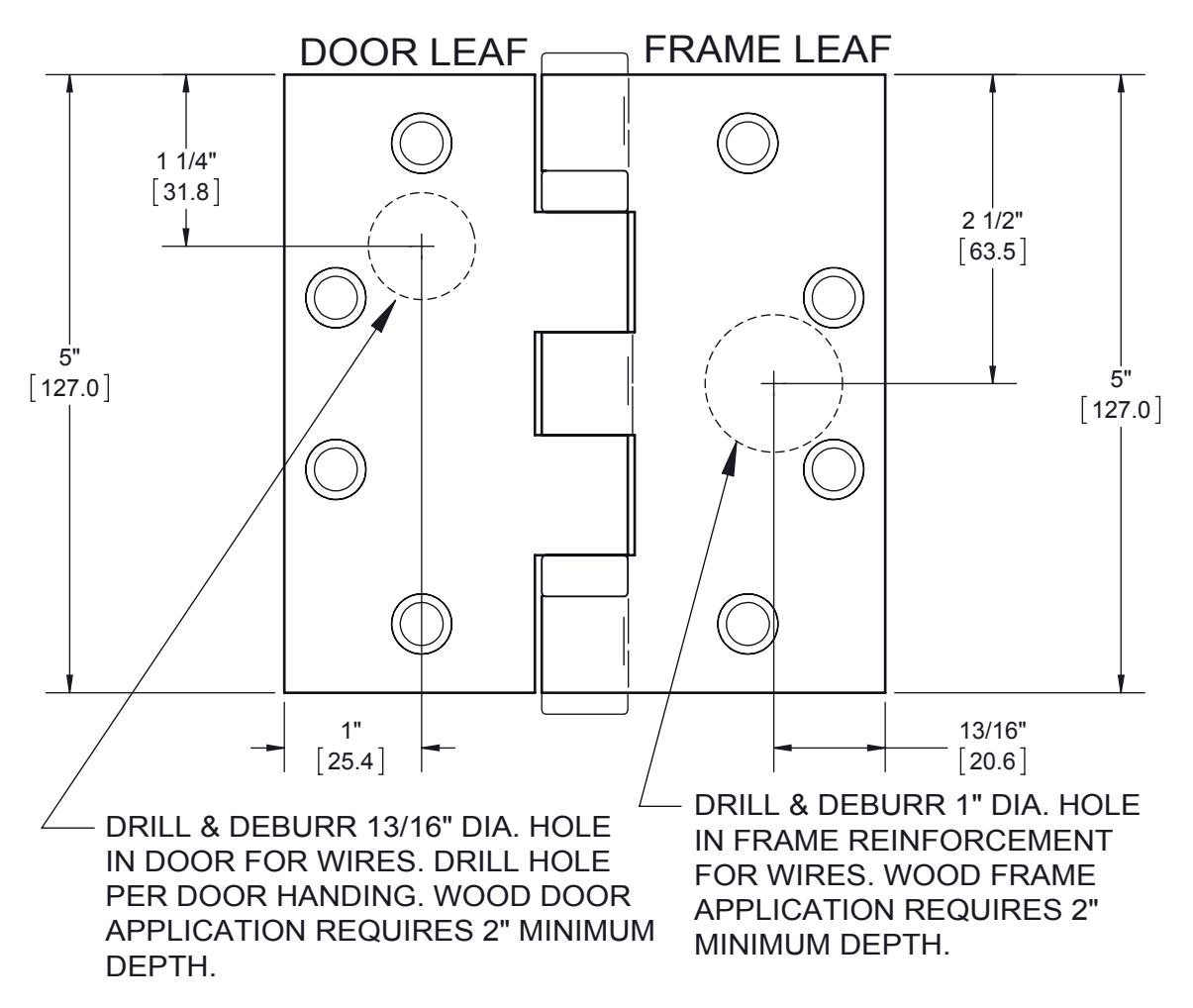

5" 5 KNUCKLE ETW HINGE TEMPLATE

MODELS ETW10, ETW12, ETW6-2228, ETW2-18, ETW6-1828 & ETW8-1828 CONCEALED ELECTRIC THROUGH WIRE HINGES

FOR USE WITH ALL HAGER 5" FULL MORTISE 5 KNUCKLE STANDARD AND HEAVY WEIGHT HINGES.

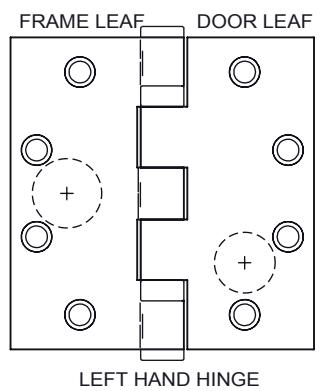

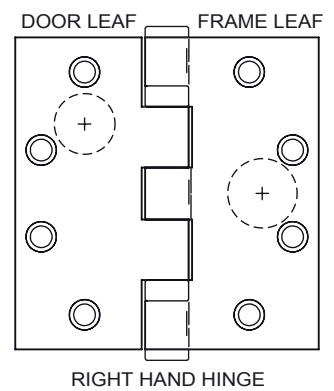

SHOWN. HINGE AS SIDE. HAND THE FRONT SHOWN FROM HINGES ARE

AND MUST BE MOUNTED IN THE CENTER POSITION ONLY. HINGES ARE NON-LOAD BEARING

DRAWING NO: T-CT00062 LEGACY TEMPLATE NO: T526

REV: 01 SHEET 1 OF 1 REV DATE:9/2013
