5in 3-KNU (ETW2-22, ETW4, ETW6, ETW8, ETW10 & ETW12) t-ct00080-rev2

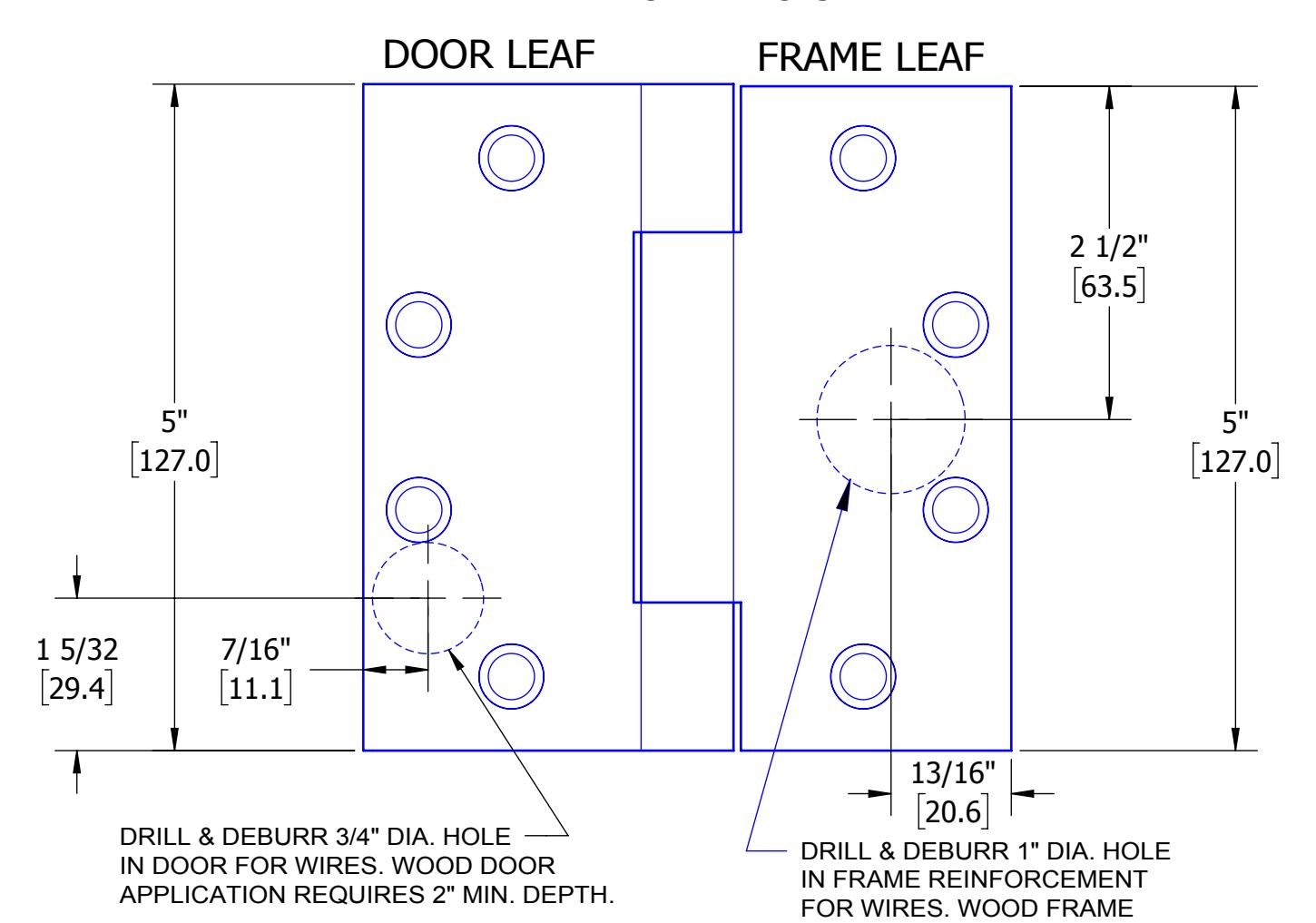

5" 3 KNUCKLE ETW HINGE TEMPLATE

MODELS ETW2-22, ETW4, ETW6, ETW8, ETW10, & ETW12 CONCEALED ELECTRIC THROUGH WIRE HINGES.

FOR USE WITH ALL HAGER 5" FULL MORTISE 3 KNUCKLE STANDARD AND HEAVY WEIGHT HINGES.

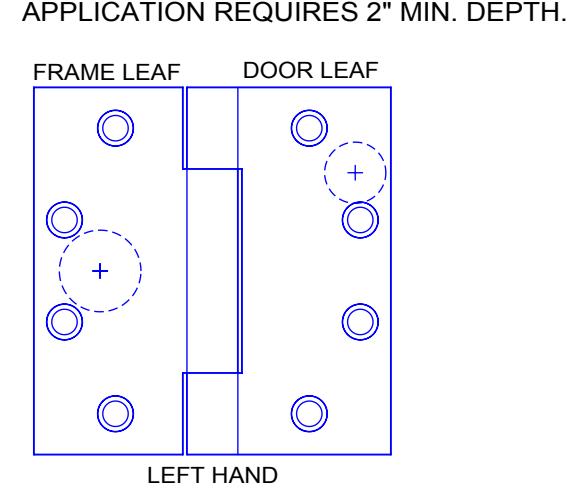

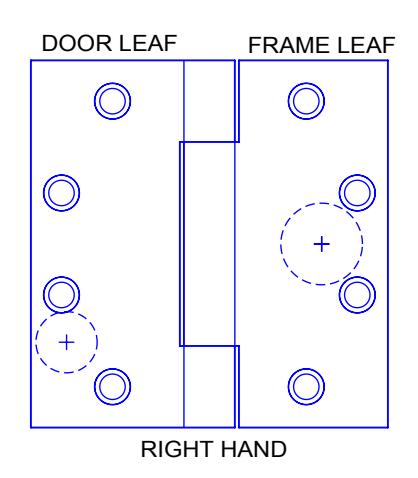

SHOWN. HINGE AS SIDE. HAND THE FRONT SHOWN FROM HINGES ARE

HINGES ARE NON-LOAD BEARING AND MUST BE MOUNTED IN THE CENTER POSITION ONLY.

DRAWING NO: T-CT00080 LEGACY TEMPLATE NO: T527

REV: 02 SHEET 1 OF 1 REV DATE: 7/13/18
