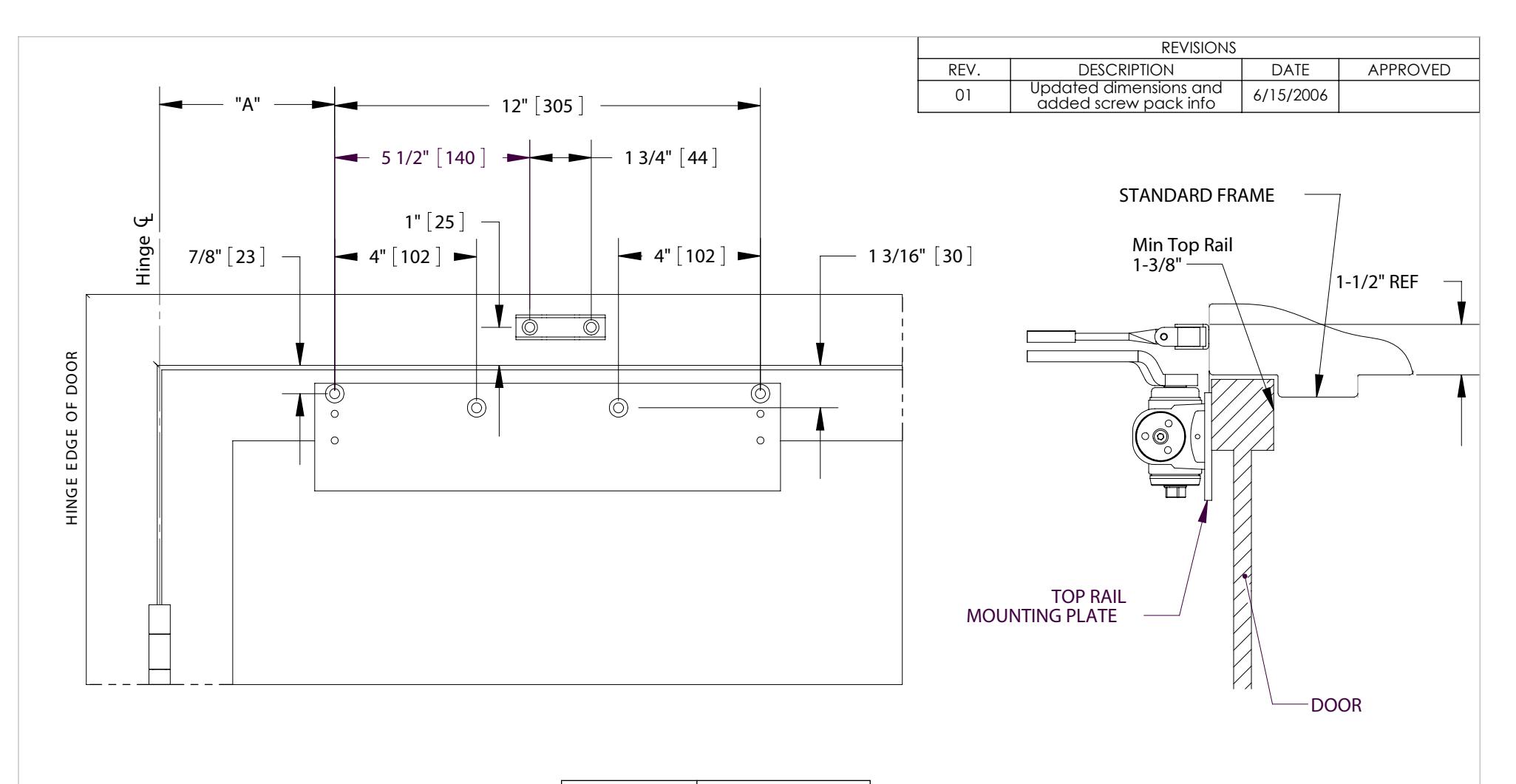

5921 Narrow Top Rail-RA Mounting Template T-CL00011-Rev01

Opening	Dimension "A"
To 100 °	7-1/2" (191mm)
100 ° to 130 °	6" (152mm)
over 130 °	4-1/2" (114mm)

RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.

SCREW PACK INCLUDES:

T Sveitis

1/16/06

4PCS. 1/4-14 X 1-1/2" SELF TAPPING FLAT HEAD WOOD SCREW 4PCS. 1/4-20 X 1-1/2" SELF TAPPING MACHINE SCREW 4PCS. 1/4-20 X 7/16" FLAT HEAD MACHINE SCREW

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE. MATERIAL FINISH

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [ ] ARE MILLIMETERS.

| ENG. APPR. | MAM | 09/25/06 | |-----------------------------------

DRAWN

5921 Narrow Top Rail/RA Mounting Plate Template

SIZE DWG. NO. T-CL00011 SCALE:1:4 WEIGHT: SHEET 1 OF 1
